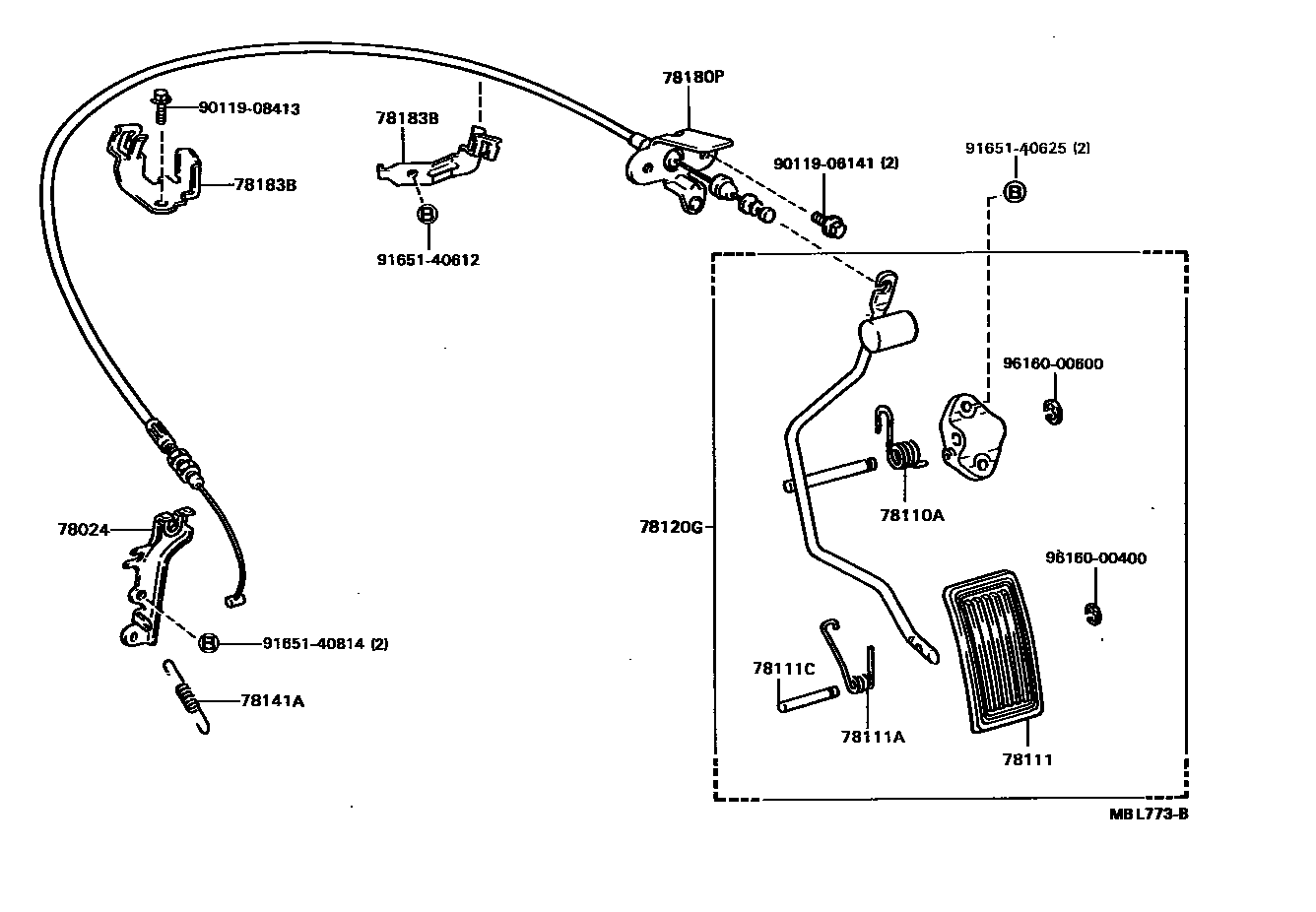

Toyota CELICA — ACCELERATOR LINK

0001 1 0002 1 0003 1 0004 1 0005 1

78024BRACKET SUB-ASSY, ACCELERATOR CONTROL CABLE

main78024-20010iST160198708-198805

main78024-20030iST162..5F..GT198708-198908

main78024-20070iST162..4FC..GT198708-198908

main78024-32070iST162..ZR198708-198908

main78024-88380iST165198710-198908

78110ASPRING (FOR ACCELERATOR PEDAL ROD)

main90508-18050iST160,162,163..4FC198708-198908

main90508-26054iST16#..5F198708-198908

78111PEDAL, ACCELERATOR

main78111-20030iST16#198708-198908

78111ASPRING (FOR ACCELERATOR PEDAL)

main90508-18048iST160,162,163..4FC198708-198908

main90508-18050iST16#..5F198708-198908

78111CPIN (FOR ACCELERATOR PEDAL)

main90249-05001iST16#198708-198908

78120GROD ASSY, ACCELERATOR PEDAL

main78120-20260iST162,165..5F..(GT,GT4)198708-198908

main78120-20270iST162..4FC..GT198708-198908

main78120-20300iST160,162,163..5F..(ST,SX,ZR)198708-198908

main78120-20310iST160,162,163..4FC..(ST,SX,ZR)198708-198908

78141ASPRING, TENSION(FOR ACCELERATOR WIRE RETURN SPRING)

main90507-10013iST160..4FC198708-198805

main90507-11003iST160..5F198708-198805

78180PCABLE ASSY, ACCELERATOR CONTROL

main78180-20430iST162..4FC..GT198708-198908

main78180-20440iST162..CV198708-198908

main78180-20490iST160198708-198805

main78180-20620iST162..5F..GT198708-198908

main78180-20650iST165198710-198908

main78180-20671iST162..ZR198708-198908

main78180-2B060iST163198805-198908

78183BCLAMP, ACCELERATOR CONTROL CABLE

main78183-20030iST162..CV;ST160,162,165..GT,GT4,ST,SX198708-198908

APRON

main78183-20070iST160198708-198805

HEAD COVER

main78183-20120iST163198805-198908

9011906141

main90119-06141

9011908413

main90119-08413

9165140612

main91651-40612

9165140625

main91651-40625

9165140814

main91651-40814

9616000400

main96160-00400

9616000600

main96160-00600

16 parts on this diagram · 5 diagrams in section
