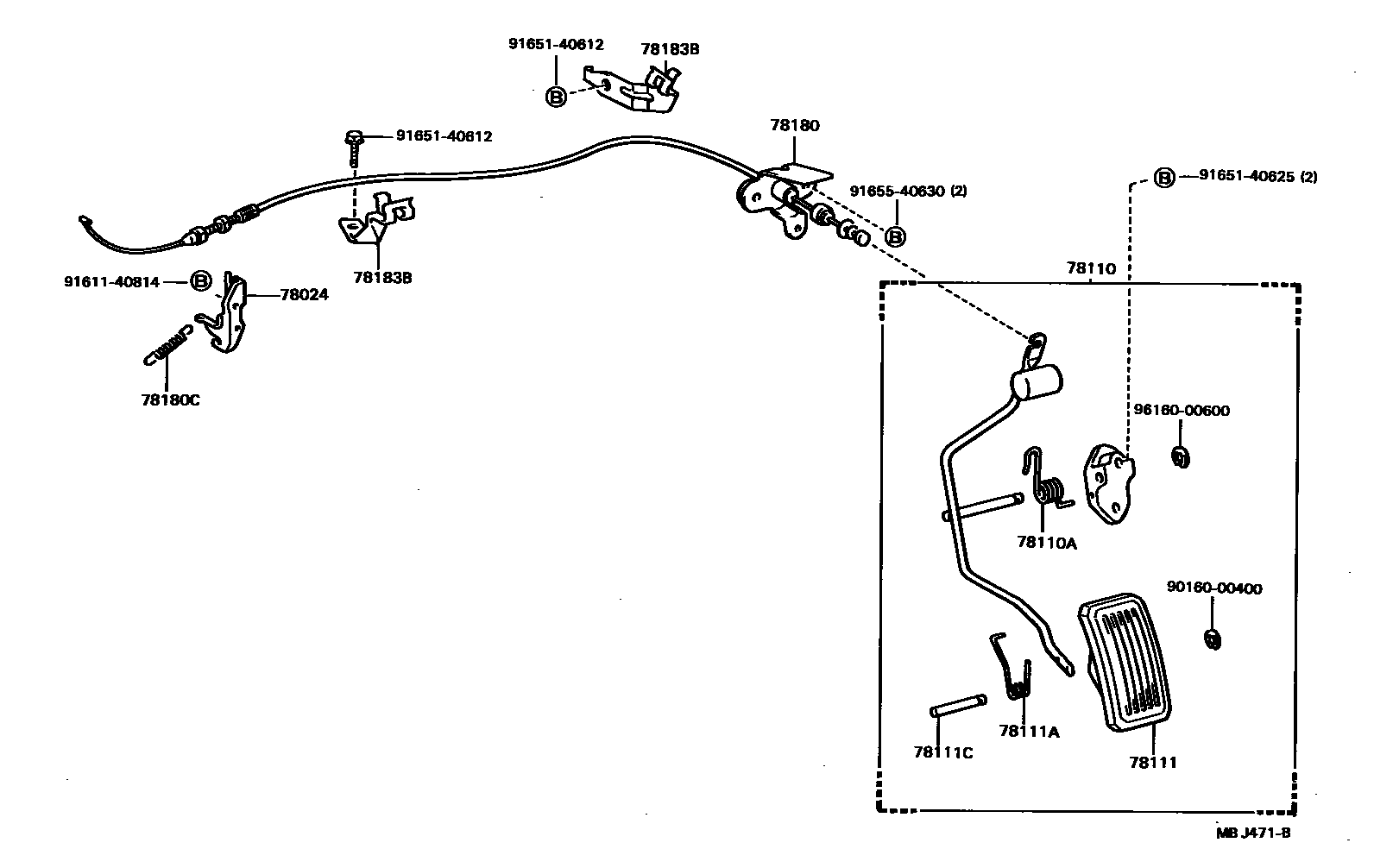

Toyota CELICA — ACCELERATOR LINK

0001 1 0002 1 0003 1 0004 1

78024BRACKET SUB-ASSY, ACCELERATOR CONTROL CABLE

main78024-20010iST160198508-198708

main78024-20030iST162..5F198508-198708

main78024-20070iST162..4FC198508-198708

main78024-88380iST165198610-198708

main78184-12190iAT160198508-198708

78110ROD ASSY, ACCELERATOR PEDAL

main78120-20260iST162,165..5F198508-198708

W/O AUTO DRIVE

main78120-20270iST162..4FC198508-198708

W/AUTO DRIVE

main78120-20300iAT160,ST160..5F198508-198708

W/O AUTO DRIVE

main78120-20310iAT160,ST160..4FC198508-198708

78110ASPRING (FOR ACCELERATOR PEDAL ROD)

main90508-18048iAT160,ST160,162..4FC198508-198708

W/AUTO DRIVE

main90508-26054iAT160,ST16#..5F198508-198708

W/O AUTO DRIVE

78111PEDAL, ACCELERATOR

main78111-20030iAT160,ST16#198508-198708

78111ASPRING (FOR ACCELERATOR PEDAL)

main90508-18050iAT160,ST16#198508-198708

78111CPIN (FOR ACCELERATOR PEDAL)

main90249-05001iAT160,ST16#198508-198708

78180WIRE ASSY, ACCELERATOR

main78180-20430iST162..4FC198508-198708

W/O AUTO DRIVE

main78180-20440iST162,165198508-198708

W/AUTO DRIVE

main78180-20490iST160198508-198708

main78180-20560iAT160198508-198708

main78180-20620iST162..5F198508-198708

W/O AUTO DRIVE

main78180-20650iST165198610-198708

W/O AUTO DRIVE

78180CSPRING, TENSION (FOR ACCELERATOR WIRE)

main90507-10016iAT160198508-198708

78183BCLAMP, ACCELERATOR CONTROL CABLE

main78183-12080iAT160198508-198708

W/SURGE TANK

main78183-20030iAT160,ST16#198508-198708

W/APRON

main78183-20070iST160198508-198708

W/HEAD COVER

9016000400

main90160-00400

9161140814

main91611-40814

9165140612

main91651-40612

9165140625

main91651-40625

9165540630

main91655-40630

9616000600

main96160-00600

15 parts on this diagram · 4 diagrams in section
