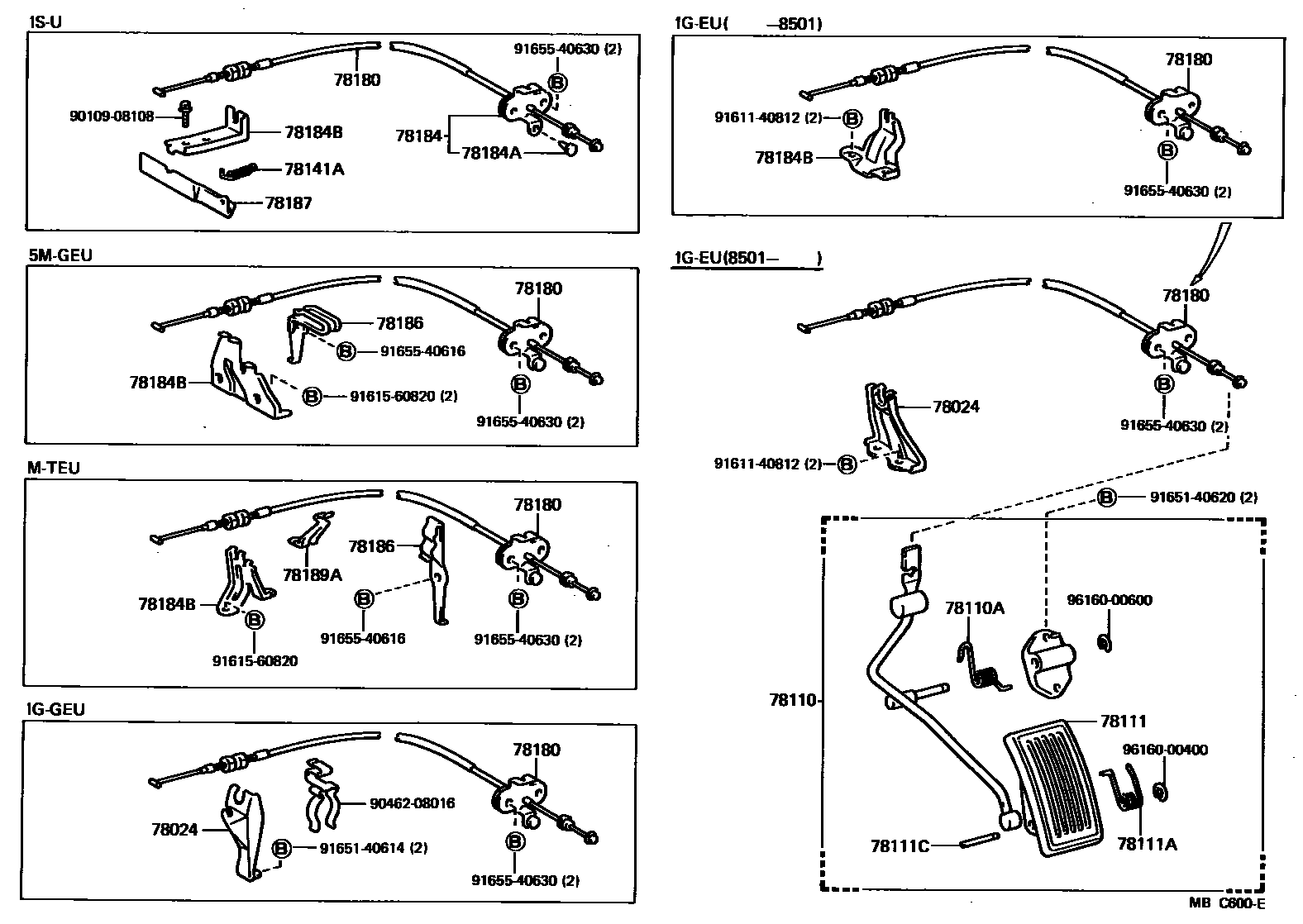

Toyota CELICA — ACCELERATOR LINK

0001 1 0002 1

78024BRACKET SUB-ASSY, ACCELERATOR CONTROL CABLE

main78024-14010iGA61..GT198208-198512

main78024-14020iTA63,64..GTS,GTT198210-198507

main78024-30020iGA61..G,S198501-198512

78110ROD ASSY, ACCELERATOR PEDAL

main78120-14240iGA61,MA6#,SA60..4FC198107-198512

main78120-14250iTA63..4FC..GTT;AA63,RA63,TA61,63..GT,GTR,ST,SX198107-198507

main78120-14310iGA61,MA61,SA60..MTM198107-198203

main78120-14350iTA63,64..5F..(GTS,GTT)198210-198507

main78120-14410iMA61,SA60..MTM198203-198512

78110ASPRING (FOR ACCELERATOR PEDAL ROD)

main90508-18033iTA63..4FC..GTT;AA63,RA63,TA61,63..GT,GTR,ST,SX198107-198507

main90508-26036iGA61,MA61,SA60..MTM198107-198203

main90508-26048iTA63,64..5F..(GTS,GTT)198210-198507

78111PEDAL, ACCELERATOR

main78111-12100iGA61,MA6#,SA60198107-198512

78111ASPRING (FOR ACCELERATOR PEDAL)

main90508-23003iGA61,MA6#,SA60198107-198512

78111CPIN (FOR ACCELERATOR PEDAL)

main90249-05001iGA61,MA6#,SA60198107-198512

78141ASPRING, TENSION(FOR ACCELERATOR WIRE RETURN SPRING)

main90507-07001iSA60..4FC198107-198507

main90507-08003iSA60..MTM198107-198507

78180WIRE ASSY, ACCELERATOR

main78180-14240iTA63..5F..(ST,SX)198107-198308

main78180-14280iTA63..4FC..(ST,SX)198107-198308

main78180-14290iRA63198107-198203

main78180-14291iRA63198203-198507

main78180-14340iTA61198107-198308

main78180-14380iSA60198107-198203

main78180-14381iSA60198203-198209

main78180-14382iSA60198209-198507

main78180-14480iMA61..5F198107-198512

main78180-14560iTA63,64..GTS,GTT198210-198507

main78180-14600iGA61..GT198208-198512

main78180-14630iAA63198308-198507

main78180-24010iGA61..G,L,S198107-198512

main78180-24011iGA61..G,S198501-198512

main78180-24020iMA61..4FC198107-198512

main78180-24030iMA63198202-198512

78184CHANNEL, ACCELERATOR IDLE ADJUSTING STOPPER

main78181-14060iRA63,SA60198202-198507

78184ACUSHION (FOR ACCELERATOR ADJUST STOPPER CHANNEL)

main90541-06008iRA63,SA60198202-198507

78184BBRACKET, ACCELERATOR CONTROL CABLE

main21524-28010iTA63..5F..(ST,SX)198107-198305

main21524-88262iRA63,TA61198107-198308

main78024-14040iAA63198308-198507

main78184-14040iSA60198107-198209

main78184-14041iSA60198209-198507

main78184-14100iMA61..5F198107-198512

main78184-22040iGA61..G,L,S198107-198501

main78184-24010iMA61..4FC198107-198512

main78184-30070iMA63198202-198512

78186SUPPORT, ACCELERATOR CONTROL CABLE, NO.1

main78186-14051iTA63,64..GTS,GTT198210-198507

main78186-14080iMA63198208-198512

main78186-24010iRA63,TA6#198107-198208

main78186-24020iMA61198107-198512

78187BRACKET, ACCELERATOR PULL BACK SPRING

main78187-14020iSA60198107-198507

78189ASUPPORT, ACCELERATOR CONTROL CABLE, NO.2

main78189-24010iMA63198202-198308

main78189-24020iMA63198308-198512

9010908108

main90109-08108

9046208016

main90462-08016

9161140812

main91611-40812

9161560820

main91615-60820

9165140614

main91651-40614

9165140620

main91651-40620

9165540616

main91655-40616

9165540630

main91655-40630

9616000400

main96160-00400

9616000600

main96160-00600

24 parts on this diagram · 2 diagrams in section
