Toyota CELICA — ABS & VSC

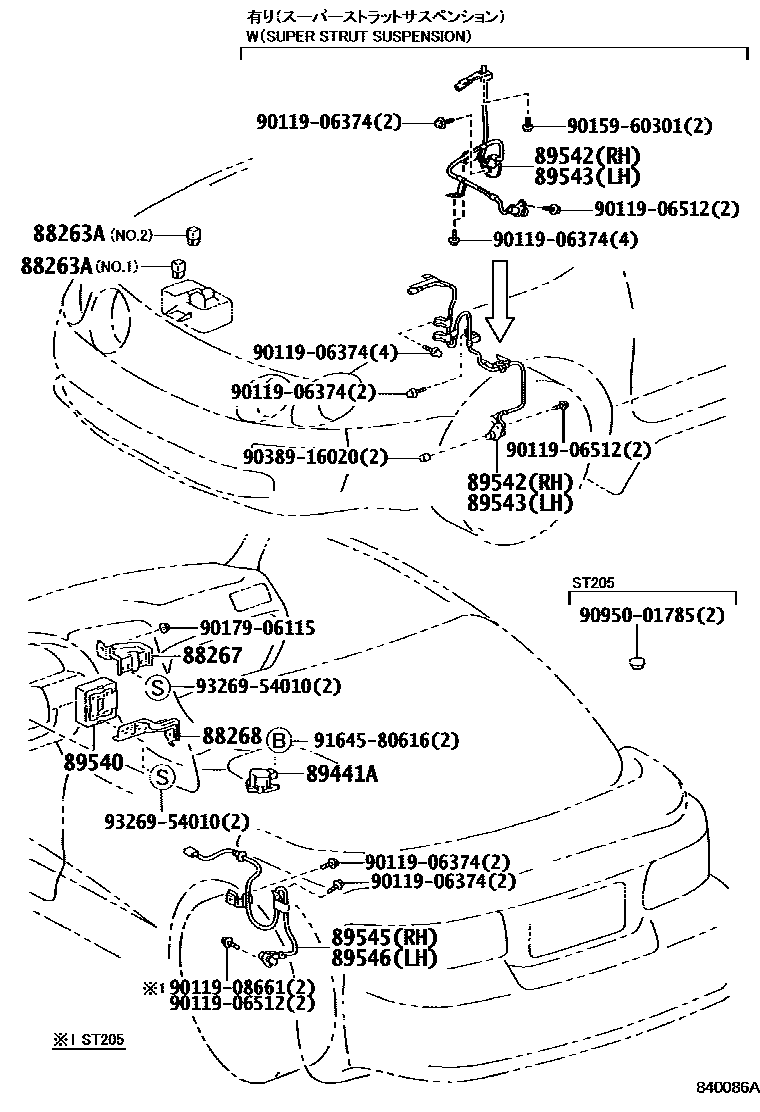

Parts diagram

88263ARELAY, SKID CONTROL

main88263-14110i199508-199512

main88263-24020i199309-199508

main88263-24030i199309

88267BRACKET, SKID CONTROL COMPUTER, NO.1

main88267-20140i199309-199505

main88267-20160i199512

88268BRACKET, SKID CONTROL COMPUTER, NO.2

main88268-20120i199309-199505

main88268-20140i199508-199512

89441ASENSOR, DECELERATION

main89441-20050i199508-199712

main89441-42010i199712

89540COMPUTER ASSY, SKID CONTROL

main89541-20130i199309-199508

main89541-20140i199508-199712

main89541-20150i199402-199712

main89541-20160i199512-199712

main89541-20190i199712

main89541-20200i199712

main89541-20210i199712

89542SENSOR, SPEED, FRONT RH

main89542-20090i199309-199508

main89542-20100i199309-199508

main89542-20110i199508-199512

main89542-20120i199508

89543SENSOR, SPEED, FRONT LH

main89543-20090i199508-199512

main89543-20100i199309-199508

main89543-20110i199508-199512

main89543-20120i199508

89545SENSOR, SPEED, REAR RH

main89545-20090i199508-199512

main89545-20100i199402

main89545-20120i199512

89546SENSOR, SPEED, REAR LH

main89546-20090i199309-199508

main89546-20100i199402

main89546-20120i199508-199512

9011906374

main90119-06374

9011906512

main90119-06512

9011908661

main90119-08661

9015960301

main90159-60301

9017906115

main90179-06115

9038916020

main90389-16020

9095001785

main90950-01785

9164580616

main91645-80616

9326954010

main93269-54010

18 parts on this diagram · 2 diagrams in section

ABS & VSC for Toyota CELICA

This section contains 23 genuine Toyota parts for the ABS & VSC system of the Toyota CELICA. Key components include: RELAY, SKID CONTROL, BRACKET, SKID CONTROL COMPUTER, NO.1, BRACKET, SKID CONTROL COMPUTER, NO.2, SENSOR, DECELERATION, COMPUTER ASSY, SKID CONTROL.
