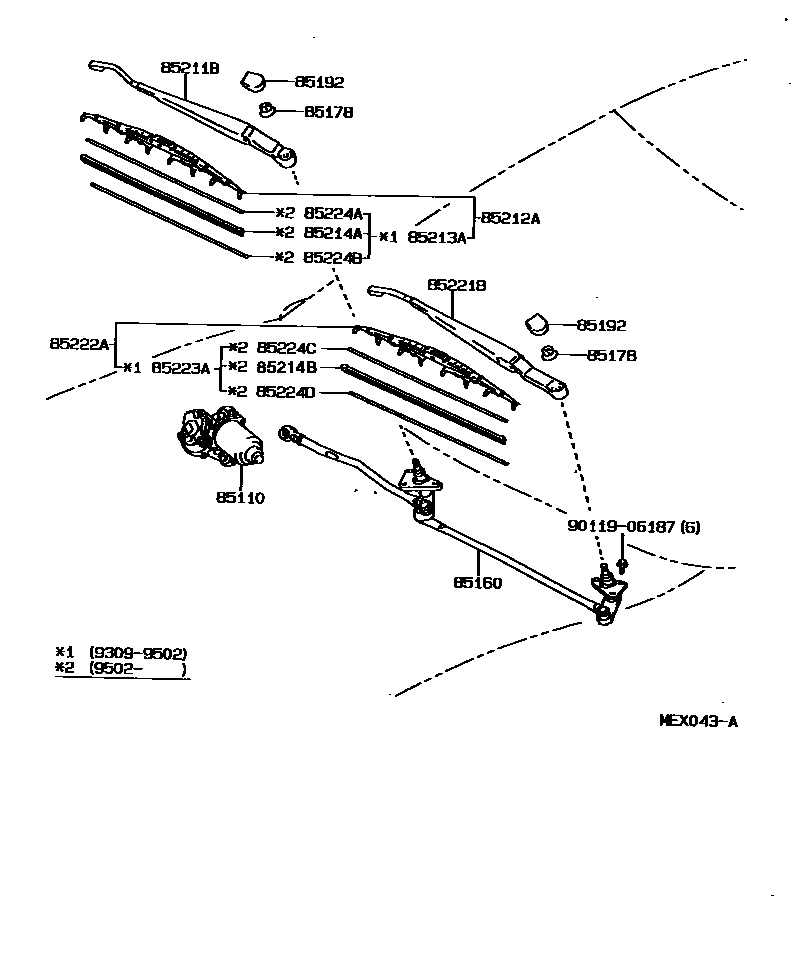

Toyota CELICA — WINDSHIELD WIPER

0001 1 0002 1

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-20750iST202..RHD199311-199508

TYPE A:REFER TO ILLUSTRATION

sub85110-20830

main85110-20780iST202..LHD199311-199508

sub85110-20840

main85110-20790iST20#..RHD199311-199508

TYPE B:REFER TO ILLUSTRATION

sub85110-20820

main85110-20820iST20#..RHD199508

TYPE C:REFER TO ILLUSTRATION

sub85110-20830

main85110-20830iST202..RHD199508

TYPE D:REFER TO ILLUSTRATION

main85110-20840iST202..LHD199508

sub85110-20860

85160LINK ASSY, WINDSHIELD WIPER

main85150-20820iST20#..RHD199311

main85150-20850iST202..LHD199311

85178NUT (FOR FRONT WIPER ARM SETTING)

main90179-08113iST20#199311

85192COVER, WINDSHIELD WIPER ARM

main85292-12020iST20#199311

85211BARM, FRONT WIPER, RH

main85211-20390iST20#..RHD199311

main85211-20400iST202..LHD199311-199701

sub85211-20401

main85211-20401iST202..LHD199701

85212ABLADE, FR WIPER, RH

main85212-20350iST20#..RHD199311

main85212-20380iST202..LHD199311-199701

sub85212-20381

main85212-20381iST202..LHD199701

85213ARUBBER, WIPER BLADE, RH

main85213-14300iST202..LHD199311-199502

sub85214-30260

main85213-20310iST20#..RHD199311-199502

sub85214-33060

85214ARUBBER, WIPER, RH

main85214-30260iST202..LHD199502

main85214-33060iST20#..RHD199502

sub85214-40080

85214BRUBBER, WIPER, LH

main85214-30240iST204,205199502

sub85214-30250

main85214-33050iST202..LHD199502

sub85214-40080

main85214-60020iST202..RHD199502

85221BARM, FRONT WIPER, LH

main85221-20360iST202..RHD199311

main85221-20370iST202..LHD199311-199701

sub85221-20371

main85221-20371iST202..LHD199701

main85221-20390iST204,205199311

85222ABLADE, FR WIPER, LH

main85222-1G090iST202..LHD199701

main85222-20330iST202..LHD199311-199701

sub85222-1G090

main85222-20380iST204,205199311

main85222-3H080iST202..RHD199311

85223ARUBBER, FRONT WIPER BLADE, LH

main85223-33022iST202..LHD199311-199502

sub85214-33050

main85223-33040iST202..RHD199311-199502

sub85214-60020

main85223-60050iST204,205199311-199502

sub85214-30240

85224APLATE, WIPER RUBBER BACKING, NO.1

main85224-33050iST20#..RHD199502

main85224-60040iST202..LHD199502

85224BPLATE, WIPER RUBBER BACKING, NO.2

main85224-33050iST20#..RHD199502

main85224-60040iST202..LHD199502

85224CPLATE, WIPER RUBBER BACKING, NO.3

main85224-20300iST202..RHD199502

main85224-33050iST202..LHD199502

main85224-60040iST204,205199502

85224DPLATE, WIPER RUBBER BACKING, NO.4

main85224-20300iST202..RHD199502

main85224-33050iST202..LHD199502

main85224-60040iST204,205199502

9011906187

main90119-06187

17 parts on this diagram · 2 diagrams in section
