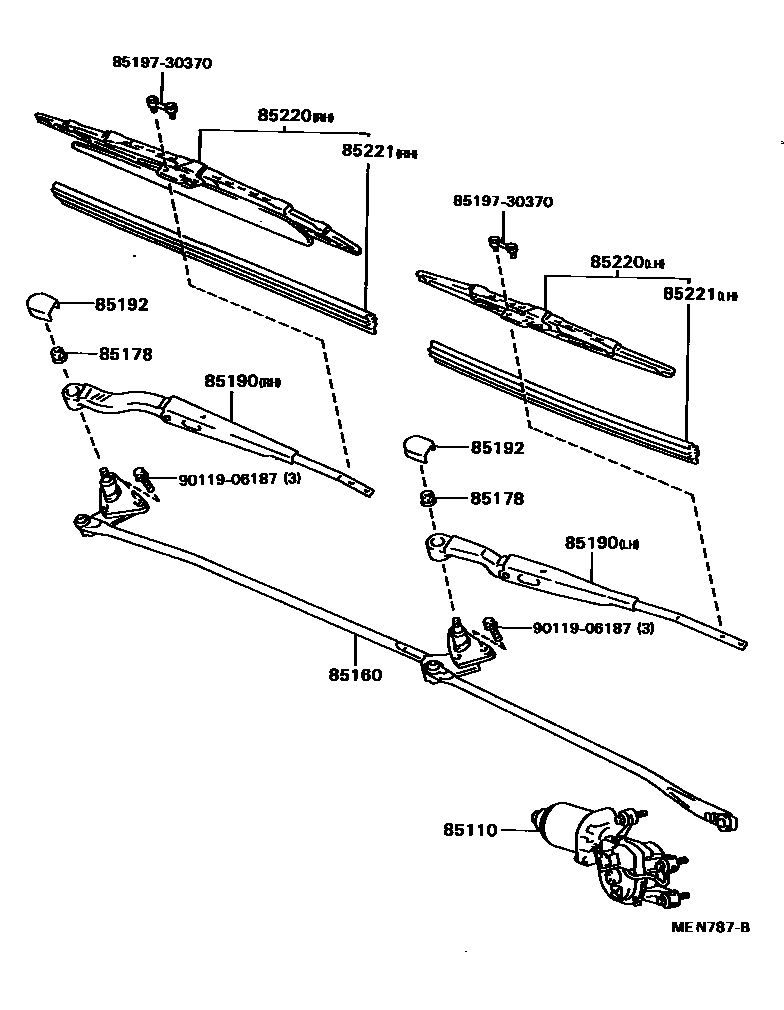

Toyota CELICA — WINDSHIELD WIPER

0001 1 0003 1

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-20600iAT180..RHD198911-199311

main85110-20610iAT180,ST182..LHD198911-199311

main85110-20620iST184,185198910-199311

85160LINK ASSY, WINDSHIELD WIPER

main85160-20290iAT180,ST184,185..RHD198910-199311

sub85150-20740

main85160-20430iAT180,ST182..LHD198911-199311

85178NUT (FOR FRONT WIPER ARM SETTING)

main90179-08113×2iAT180,ST18#198910-199311

85190ARM ASSY, WINDSHIELD WIPER

main85190-20700iAT180,ST184,185..RHD198910-199311

RH

main85190-20720iAT180,ST182..LHD198911-199311

RH

main85210-20240iAT180,ST184..RHD..NOB198910-199311

LH

main85210-20250iST184,185..WIB198910-199311

LH

main85210-20260iAT180,ST182..LHD198911-199311

LH

85192COVER, WINDSHIELD WIPER ARM

main85192-12800×2iAT180,ST18#198910-199311

85220BLADE ASSY, WINDSHIELD WIPER

main85220-1A130iAT180,ST184..RHD..NOB198910-199311

LH

main85220-1A140iAT180,ST182..LHD198911-199311

RH

main85220-3A220iAT180,ST184,185..RHD198910-199311

RH

main85220-3A240iST184,185..WIB198910-199311

LH

main85220-3A270iAT180,ST182..LHD198911-199311

LH

85221BLADE, WINDSHIELD WIPER

main85213-17040iAT180,ST184,185..RHD199005-199311

RH

sub85213-12280

main85221-12200iAT180,ST184,185..RHD198910-199005

RH

main85221-12240iAT180,ST184..RHD198910-199005

LH

sub85223-12690

main85221-20210iST185198910-199005

LH

main85221-20230iAT180,ST182..LHD198911-199311

LH

sub85213-12280

main85221-22220iAT180,ST182..LHD198911-199108

RH

main85223-17010iST184,185..WIB199005-199311

LH

sub85221-30130

main85223-22700iAT180,ST184..RHD..NOB199005-199311

LH

sub85221-40040

8519730370

main85197-30370

9011906187

main90119-06187

9 parts on this diagram · 2 diagrams in section
