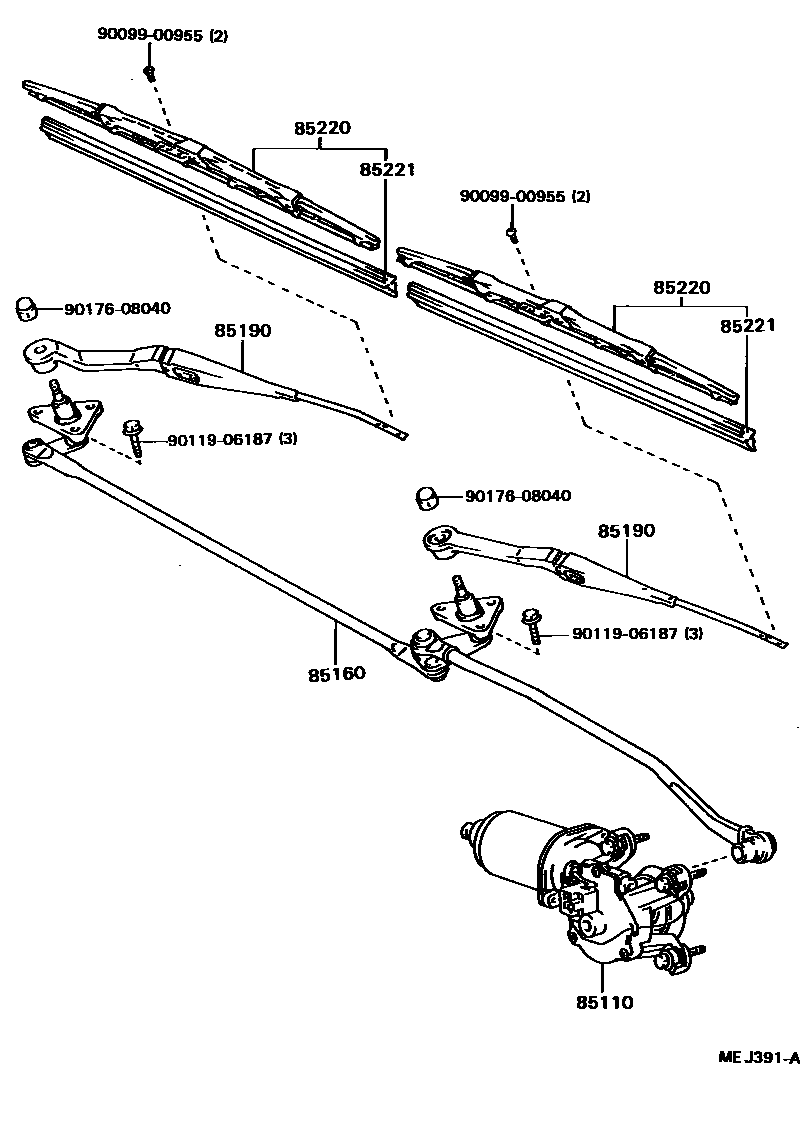

Toyota CELICA — WINDSHIELD WIPER

0001 1 0002 1

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-20420iAT160..RHD198708-198801

main85110-20421iAT160..RHD198801-198903

main85110-20422iAT160..RHD198903-198908

sub85110-20432

main85110-20470iAT160,ST162..LHD198708-198908

sub85110-20261

main85110-20560iST162..ARL198708-198801

main85110-20561iST162..ARL198801-198903

main85110-20562iST162..ARL198903-198908

sub85110-20432

85160LINK ASSY, WINDSHIELD WIPER

main85160-20300iAT160,ST162..RHD198708-198908

sub85160-20310

main85160-20320iAT160,ST162..LHD198708-198908

sub85160-20340

85190ARM ASSY, WINDSHIELD WIPER

main85190-20460iAT160,ST162..RHD198708-198908

RH

main85190-20590iAT160,ST162..LHD198708-198908

LH

main85210-20131iAT160,ST162..RHD198708-198908

LH

main85210-20200iAT160,ST162..LHD198708-198908

RH

85220BLADE ASSY, WINDSHIELD WIPER

main85220-16320iAT160,ST162..RHD198708-198908

LH

sub85220-16321

main85220-16340iAT160,ST162..LHD198708-198808

RH

sub85220-16640

main85220-16880iAT160,ST162..LHD198808-198908

RH

sub85220-16640

main85220-32540iAT160,ST162..RHD198708-198908

RH

sub85212-24050

main85220-32600iAT160,ST162..LHD198708-198808

LH

main85220-32860iAT160,ST162..LHD198808-198908

LH

sub85220-3A050

85221BLADE, WINDSHIELD WIPER

main85221-24040iAT160,ST162..RHD198708-198908

RH

sub85214-24H90

main85221-30100iAT160,ST162..LHD198708-198908

RH

sub85221-40040

main85221-30120iAT160,ST162..RHD198708-198908

LH

sub85221-40040

main85221-32050iAT160,ST162..LHD198708-198908

LH

sub85214-24H90

9009900955

main90099-00955

9011906187

main90119-06187

9017608040

main90176-08040

8 parts on this diagram · 2 diagrams in section
