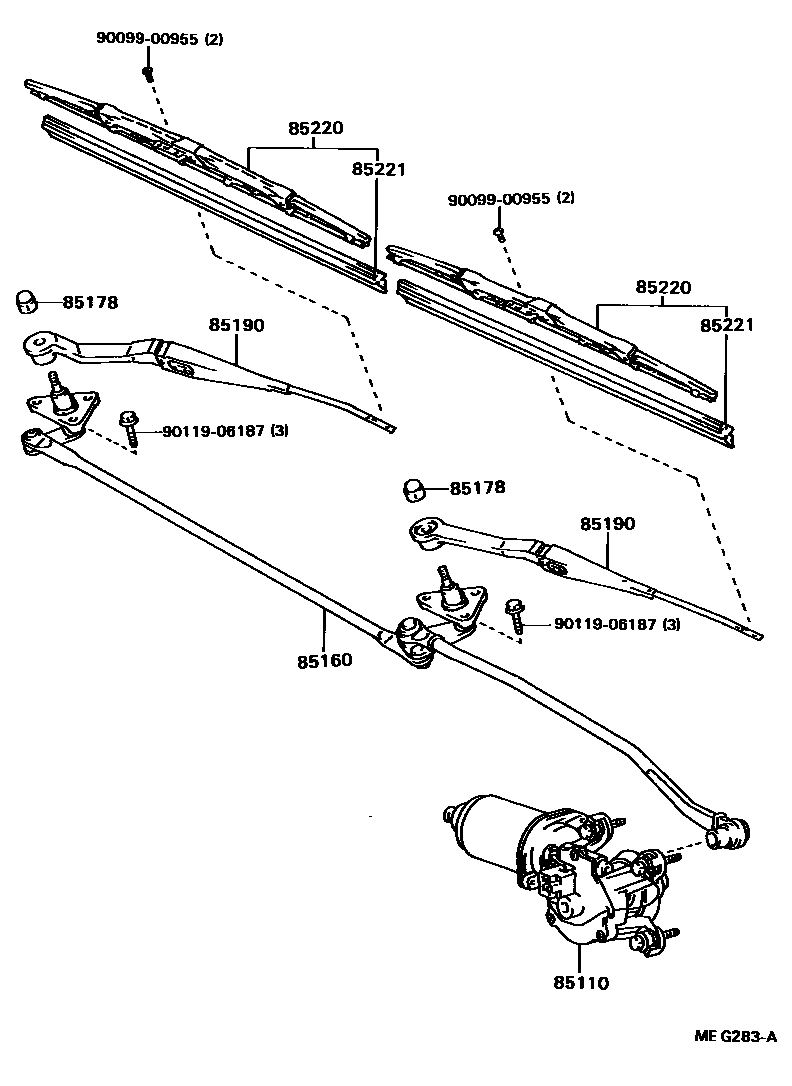

Toyota CELICA — WINDSHIELD WIPER
85110MOTOR ASSY, WINDSHIELD WIPER
85160LINK ASSY, WINDSHIELD WIPER
85178NUT (FOR FRONT WIPER ARM SETTING)
85190ARM ASSY, WINDSHIELD WIPER
RH
RH
LH
LH
LH
RH
85220BLADE ASSY, WINDSHIELD WIPER
LH
RH
LH
RH
85221BLADE, WINDSHIELD WIPER
RH
RH
LH
LH
9009900955
main90099-00955
9011906187
main90119-06187
8 parts on this diagram · 1 diagram in section
WINDSHIELD WIPER for Toyota CELICA
This section contains 8 genuine Toyota parts for the WINDSHIELD WIPER system of the Toyota CELICA. Key components include: MOTOR ASSY, WINDSHIELD WIPER, LINK ASSY, WINDSHIELD WIPER, NUT (FOR FRONT WIPER ARM SETTING), ARM ASSY, WINDSHIELD WIPER, BLADE ASSY, WINDSHIELD WIPER.
