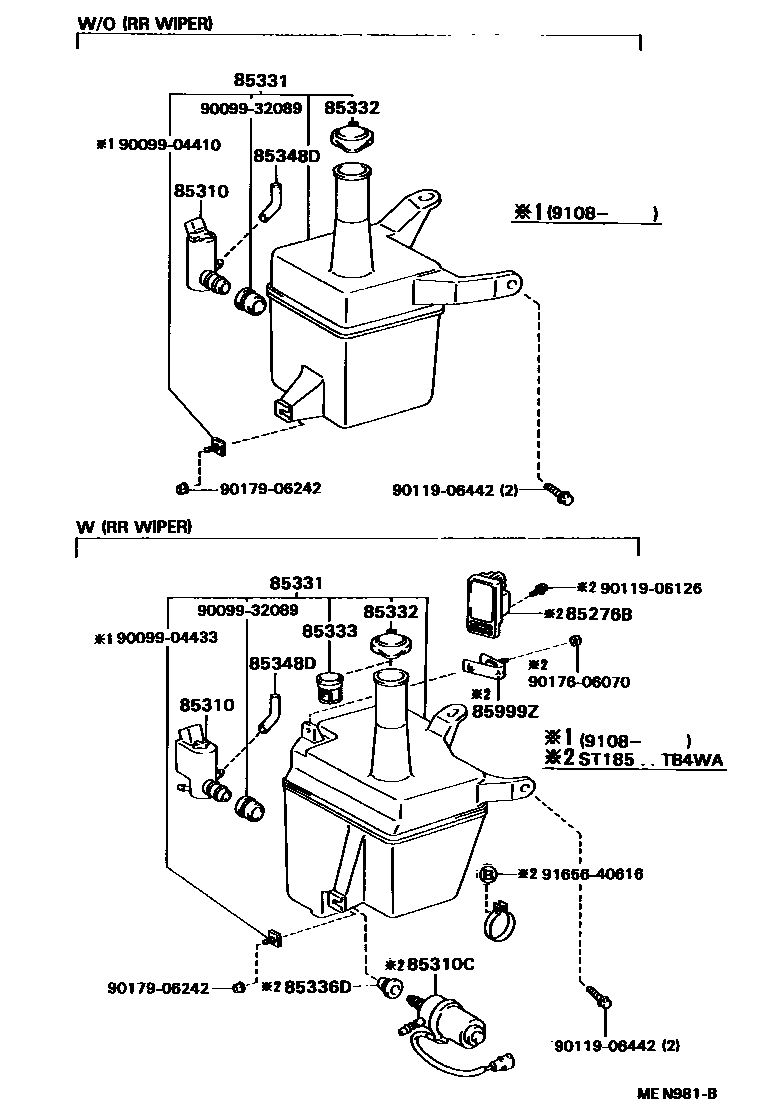

Toyota CELICA — WINDSHIELD WASHER

0001 1 0002 1

85276BRELAY, CLEANER CONTROL

main85942-33010iST185199108-199202

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

main85310-20160iST185199108-199202

main85310-20170iAT180199202-199205

W(REAR WINDOW WIPER)

main85310-20210iST184..CP;AT180,ST182198910-199108

sub85330-10280

main85330-12280iAT180199205-199311

W(REAR WINDOW WIPER)

85310CMOTOR & PUMP ASSY, WASHER

main85310-12190iST185199108-199202

sub85310-95J02

85331JAR SUB-ASSY, WINDSHIELD WASHER

main85331-20750iST184..CP;AT180,ST182198910-199108

main85331-20760iAT180..LB198911-199311

W(REAR WINDOW WIPER)

main85331-20780iST185199108-199202

85332CAP, WINDSHIELD WASHER JAR

main85332-20750iAT180,ST18#198910-199311

sub85316-33120

85333FILTER, WINDSHIELD WASHER JAR

main85333-12470iAT180,ST184,185..LB198910-199108

85336DPACKING, WINDSHIELD WASHER JAR

main85336-10010iST185199108-199202

85348JOINT, WINDSHIELD WASHER HOSE, NO.1

main85348-12250iAT180,ST18#198910-199108

3 WAY

main85349-89122×3iAT180,ST18#199108-199311

2 WAY

85348DJOINT, WINDSHIELD WASHER ELBOW, NO.1

main85355-14481iAT180,ST18#198910-199311

main85355-32110iST185199108-199202

85999ZBRACKET, RELAY

main85999-20420iST185199108-199202

9009904410

main90099-04410

9009904433

main90099-04433

9009932089

main90099-32089

9011906126

main90119-06126

9011906442

main90119-06442

9017606070

main90176-06070

9017906242

main90179-06242

9165640616

main91656-40616

18 parts on this diagram · 2 diagrams in section
