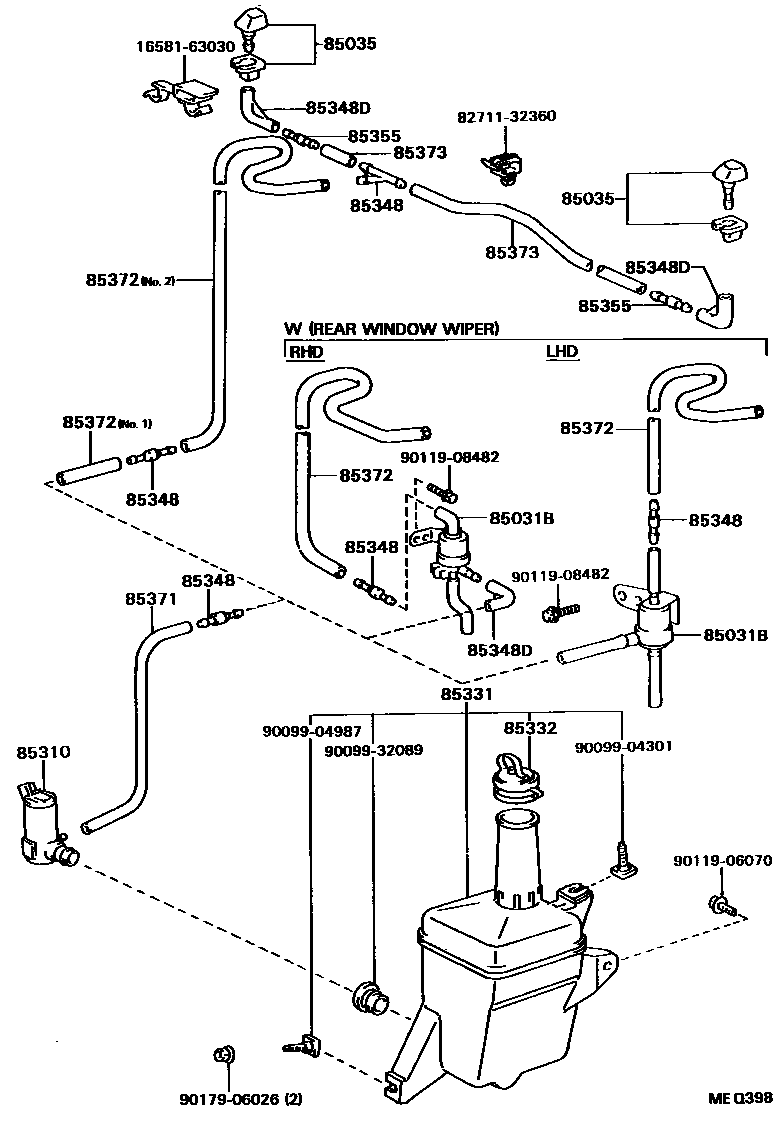

Toyota CELICA — WINDSHIELD WASHER

85031BVALVE SUB-ASSY, WASHER

main85031-20020iAT160..LB..LHD198708-198908

main85031-20080iST162..SX198708-198908

85035NOZZLE SUB-ASSY, WASHER

main85035-20100×2iAT160,ST162..RHD198708-198908

sub85381-35040

main85035-20110×2iAT160,ST162..LHD198708-198908

sub85381-35040

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

main85310-22080iAT160,ST162198708-198908

85331JAR SUB-ASSY, WINDSHIELD WASHER

main85331-20500iAT160,ST162..GT,ST198708-198908

main85331-20560iST162..SX198708-198908

W(REAR WINDOW WIPER)

85332CAP, WINDSHIELD WASHER JAR

main85332-32130iAT160,ST162198708-198908

85348JOINT, WINDSHIELD WASHER HOSE, NO.1

main85348-12250iST162..SX198708-198908

W(REAR WINDOW WIPER),3-WAY

main85348-14390iAT160,ST162..GT,ST198708-198908

3-WAY

main85349-89122×2iAT160,ST162198708-198908

2-WAY

85348DJOINT, WINDSHIELD WASHER ELBOW, NO.1

main85355-14481×2iAT160,ST162198708-198908

85355VALVE, WINDSHIELD WASHER HOSE

main85031-12250×2iAT160,ST162198708-198908

85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main90446-07001iAT160,ST162198708-198908

L=1800

85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1

main90099-33080iST162..SX198708-198908

L=1000(*H,L=610),W(REAR WINDOW WIPER)

main90099-33094iAT160,ST162..GT,ST198708-198908

L=1450(*H,L=580),NO.2

main90099-33299iAT160,ST162..GT,ST198708-198908

L=1100(*H,L=50),NO.1

85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)

main90099-33080iAT160,ST162198708-198908

L=1000(*H,L=30),LH,RH

1658163030CLAMP, HOSE(FOR WATER HOSE)

main16581-63030

8271132360WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-32360

9009904301

main90099-04301

9009904987

main90099-04987

9009932089

main90099-32089

9011906070

main90119-06070

9011908482

main90119-08482

9017906026

main90179-06026

19 parts on this diagram · 1 diagram in section
