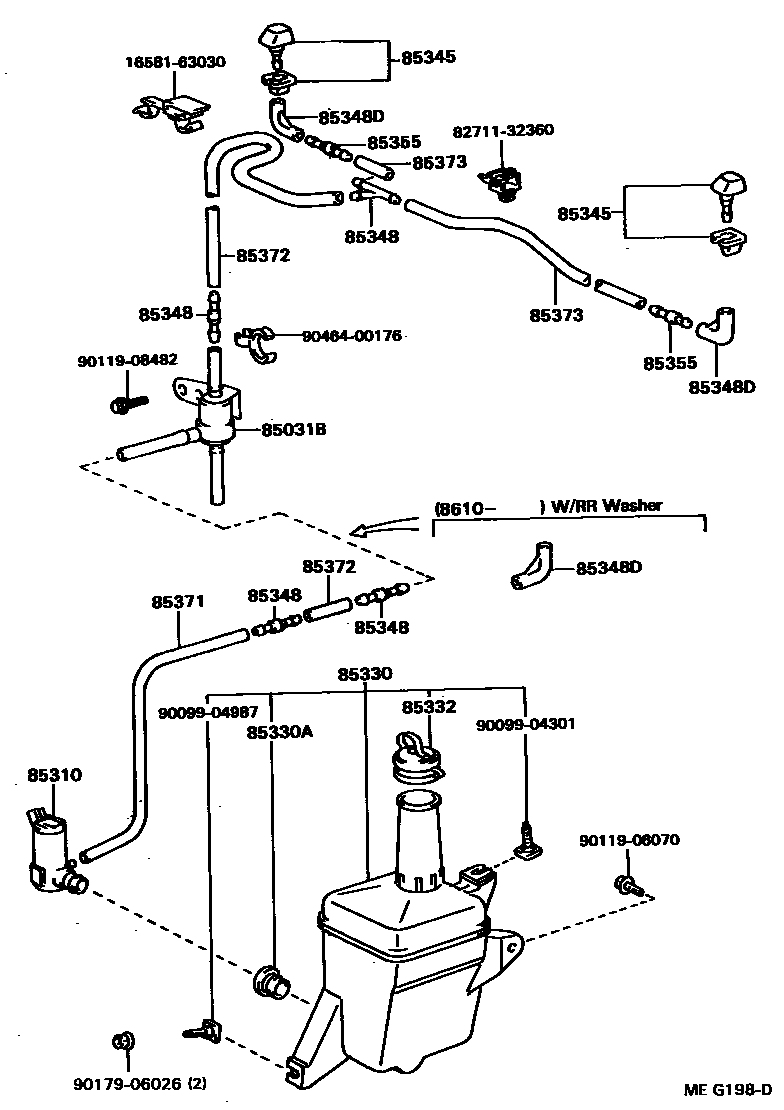

Toyota CELICA — WINDSHIELD WASHER

85031BVALVE SUB-ASSY, WASHER

main85031-20020iAT160,ST162,182..LB..TWC198508-198608

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

main85310-22080iAT160,ST162,182198508-198708

85330JAR ASSY, WINDSHIELD WASHER

main85331-20340iAT160,ST162,182198508-198708

main85331-20360iAT160,ST162,182..LB198608-198708

W/RR WIPER

main85331-20440iAT160,ST162,182..LB..TWC198508-198608

W/RR WIPER

85330ABUSH, WINDSHIELD WASHER JAR

main90099-32089iAT160,ST162,182198508-198708

85332CAP, WINDSHIELD WASHER JAR

main85332-20431iAT160,ST162,182198508-198708

main85332-20441iAT160,ST162,182..LB..TWC198508-198608

W/RR WIPER

85345NOZZLE, WINDSHIELD WASHER

main85035-20100×2iAT160,ST162,182..RHD198508-198708

sub85381-35040

main85035-20110×2iAT160,ST162..LHD198508-198708

sub85381-35040

85348JOINT, WINDSHIELD WASHER HOSE, NO.1

main85348-12250iAT160,ST162,182198508-198708

3 WAY

main85349-89122×3iAT160,ST162,182198508-198708

2 WAY

85348DJOINT, WINDSHIELD WASHER ELBOW, NO.1

main85355-20070×3iAT160,ST162,182198508-198708

sub85355-14481

85355VALVE, WINDSHIELD WASHER HOSE

main85031-12250×2iAT160,ST162,182198508-198708

85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main90446-07001iAT160,ST162,182198508-198708

L=1800(*H,L=1040)

85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1

main90099-33299iAT160,ST162,182..LB..TWC198508-198608

L=1000(*H,L=610)

85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)

main90446-06013iAT160,ST162,182198508-198708

L=1450(*H,L=460)

1658163030CLAMP, HOSE(FOR WATER HOSE)

main16581-63030

8271132360WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-32360

9009904301

main90099-04301

9009904987

main90099-04987

9011906070

main90119-06070

9011908482

main90119-08482

9017906026

main90179-06026

9046400176

main90464-00176

20 parts on this diagram · 1 diagram in section
