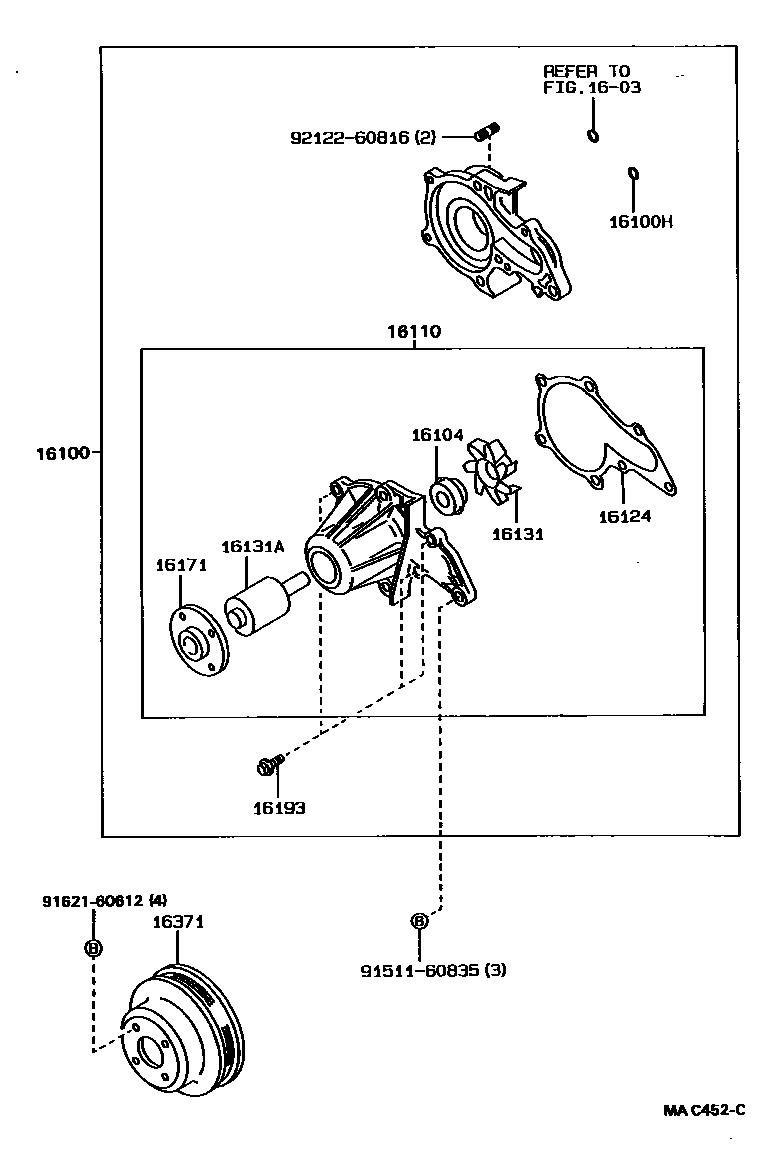

Toyota CELICA — WATER PUMP

1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

16100PUMP ASSY, ENGINE WATER

main16100-19205i198911-199311

main16100-79125i198911-199012

main16100-79126i198910-199311

main16100-79135i198910-199311

main16100-79175i199012-199311

16100HRING, O(FOR WATER PUMP)

main90301-37005i198910-199311

main96711-24035i198911-199311

16104SEAL SET, WATER PUMP

main16104-15060i198911-199311

AISAN

main16104-16040i199203-199311

AISIN

main16104-70010i198911-199203

AISIN

16110PUMP ASSY, WATER, W/O COUPLING

main16110-19075i198911-199002

AISIN

main16110-19076i199002-199108

AISIN

main16110-19085i198911-199002

AISAN

main16110-19086i199002-199311

AISAN

16124GASKET, WATER PUMP COVER

main16124-15010i198911-199002

AISIN

main16124-15060i198911-199002

AISAN

main16124-15061i199002-199311

AISAN

main16124-16020i199002-199311

AISIN

main16124-74020i198910-198911

main16124-88460i199308-199309

16131ROTOR, WATER PUMP

main16131-15070i198911-199311

AISAN

main16131-15080i198911-199311

AISIN

16131ABEARING, WATER PUMP

main90369-35043i198911-199203

main90369-35071i199203-199311

16171SEAT, WATER PUMP PULLEY

main16171-10012i199007-199311

AISIN

main16171-15050i198911-199007

AISIN

main16171-15070i198911-199311

AISAN

16193BOLT, STUD(FOR WATER PUMP COVER)

main16193-15011×3i198911-199311

AISIN

main16193-15060×3i198911-199106

AISAN

main16193-15100×3i199106-199311

AISAN

main90029-01500×4i198910-199108

16371PULLEY, FAN

main16371-15050i198911-199311

9151160835

main91511-60835

9162160612

main91621-60612

9212260816

main92122-60816

14 parts on this diagram · 3 diagrams in section

WATER PUMP for Toyota CELICA

This section contains 21 genuine Toyota parts for the WATER PUMP system of the Toyota CELICA. Key components include: RADIATOR & WATER OUTLET, PUMP ASSY, ENGINE WATER, RING, O(FOR WATER PUMP), SEAL SET, WATER PUMP, PUMP ASSY, WATER, W/O COUPLING.
