Toyota CELICA — SWITCH & RELAY & COMPUTER

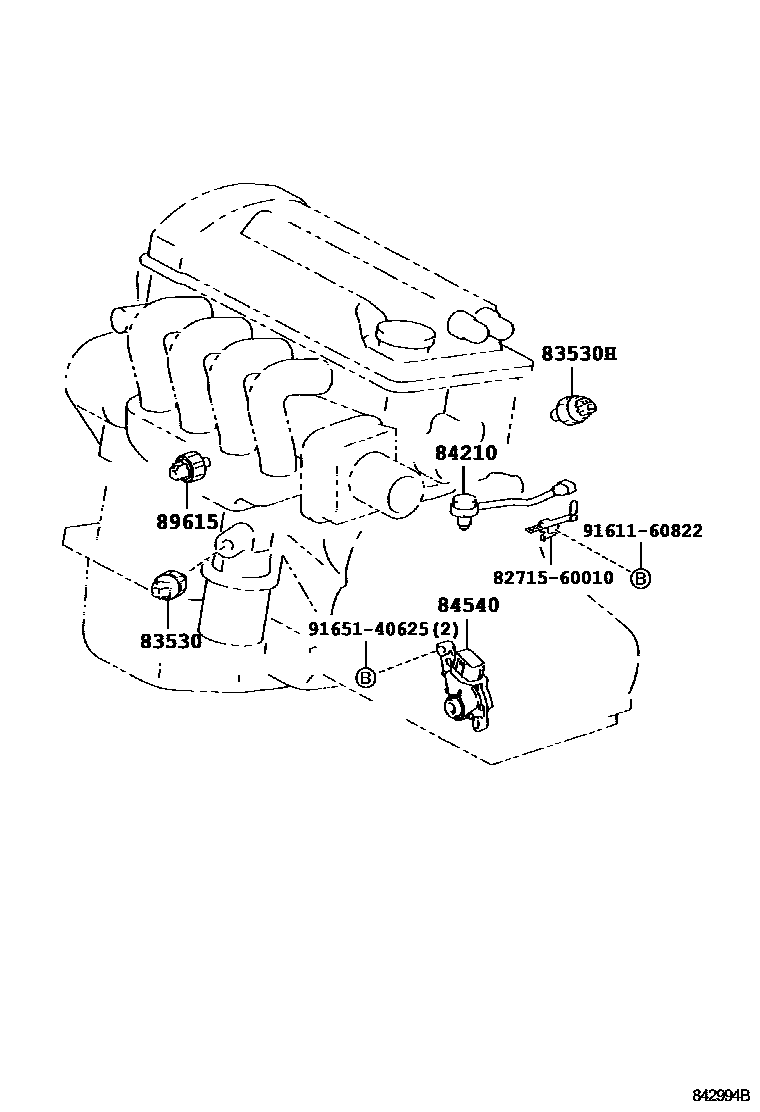

0001 1ENGINE & TRANSMISSION 0002 1ENGINE ROOM 0003 1COWL 0004 1INSTRUMENT PANEL 0005 1IGNITION & CONBINATION SW. 0006 1DOOR,ROOF & FLOOR

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-28020iZZT231199908-200208

DENSO

main83530-60020iZZT231199908-200208

YAZAKI

83530HSWITCH ASSY, OIL PRESSURE

main83530-20030iZZT231200208-200509

84210SWITCH ASSY, BACK-UP LAMP

main84210-14040iZZT231..6F199908-200208

84540SWITCH ASSY, NEUTRAL START

main84540-32110iZZT231..4FC199908-200208

89615SENSOR, KNOCK CONTROL

main89615-12090iZZT231199908-200208

8271560010BRACKET,WIRING HARNESS CLAMP

main82715-60010

9161160822

main91611-60822

9165140625

main91651-40625

8 parts on this diagram · 6 diagrams in section
