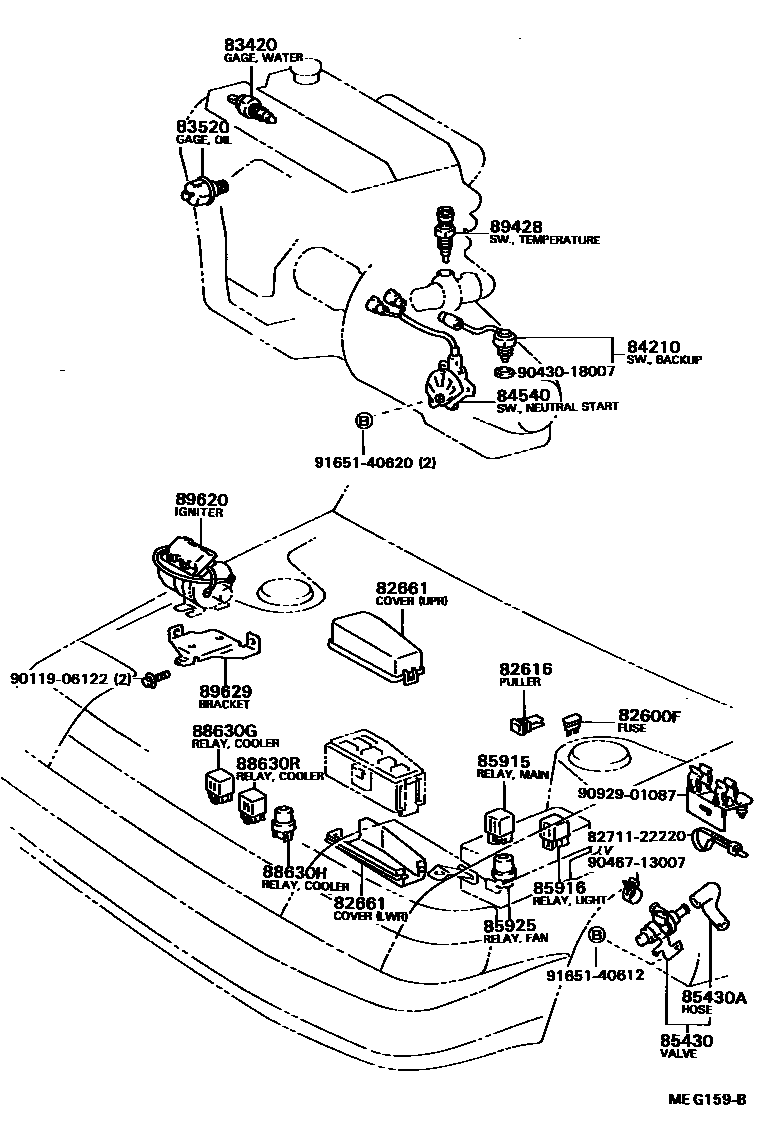

Toyota CELICA — SWITCH & RELAY & COMPUTER
82600FFUSE, FUSE BLOCK
30A,GREEN,30A
10A,10A
15A,15A
20A,YELLOW,20A
7.5A,7.5A
82616PULLER, FUSE
82661COVER, RELAY BLOCK, NO.1
UPR
LWR
83420GAGE ASSY, WATER TEMPERATURE SENDER
84210SWITCH ASSY, BACK-UP LAMP
84540SWITCH ASSY, NEUTRAL START
85430VALVE, OUTER VENT CONTROL
85430AHOSE
85915RELAY, MAIN
85916RELAY, LIGHT CONTROL
TAIL,MARUKO
TAIL,DENSO
HEAD
85925RELAY, RADIATOR FAN
88630GRELAY ASSY, COOLER
A.C FAN NO.2
88630HRELAY ASSY, COOLER
A.C FAN NO.3
88630RRELAY ASSY, COOLER, NO.3
A.C MG RELAY
89428SWITCH, TEMPERATURE DETECT, NO.2
89620IGNITER ASSY
89629BRACKET, IGNITER ASSY
8271122220WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-22220
9011906122
main90119-06122
9043018007
main90430-18007
9046713007
main90467-13007
9092901087
main90929-01087
9165140612
main91651-40612
9165140620
main91651-40620
25 parts on this diagram · 6 diagrams in section
