Toyota CELICA — SWITCH & RELAY & COMPUTER

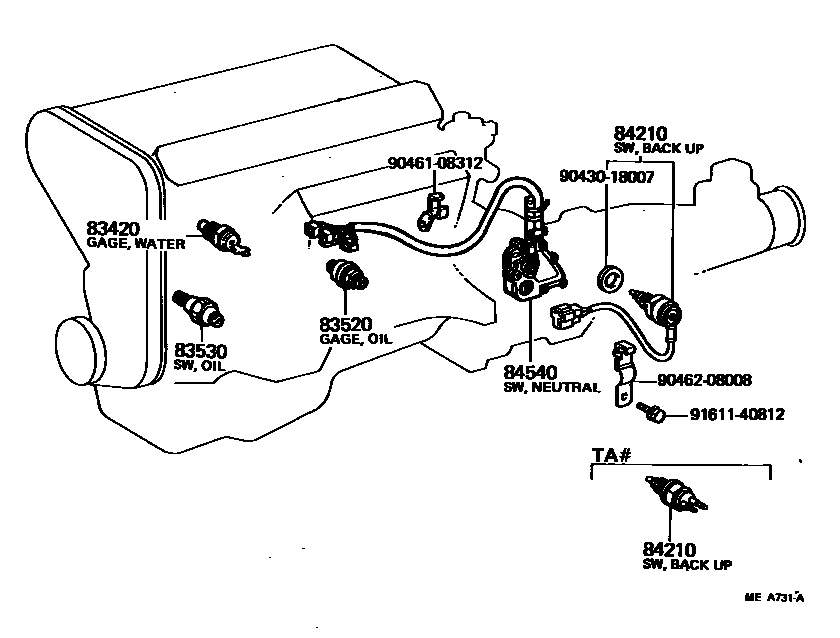

Parts diagram

83420GAGE ASSY, WATER TEMPERATURE SENDER

main83420-20020i198108-198512

YAZAKI

83520GAGE ASSY,OIL PRESSURE SENDER

main83520-14021i198108-198406

main83520-14022i198406-198507

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-10020i198108-198502

main83530-12040i198308-198410

main83530-14010i198108-198507

main83530-14020i198308-198512

main83530-14030i198502-198507

main83530-30042i198112-198206

main83530-30050i198206-198308

84210SWITCH ASSY, BACK-UP LAMP

main84210-10051i198108-198507

main84210-60010i198108-198512

84540SWITCH ASSY, NEUTRAL START

main84540-14080i198108-198512

main84540-14090i198108-198507

main84540-24010i198308-198512

9043018007

main90430-18007

9046108312

main90461-08312

9046208008

main90462-08008

9161140812

main91611-40812

9 parts on this diagram · 5 diagrams in section

SWITCH & RELAY & COMPUTER for Toyota CELICA

This section contains 118 genuine Toyota parts for the SWITCH & RELAY & COMPUTER system of the Toyota CELICA. Key components include: RELAY ASSY, CHARGE LAMP, RELAY, BULB CHECK, FLASHER ASSY, TURN SIGNAL, WIRING & CLAMP, FUSE, FUSE BLOCK.
