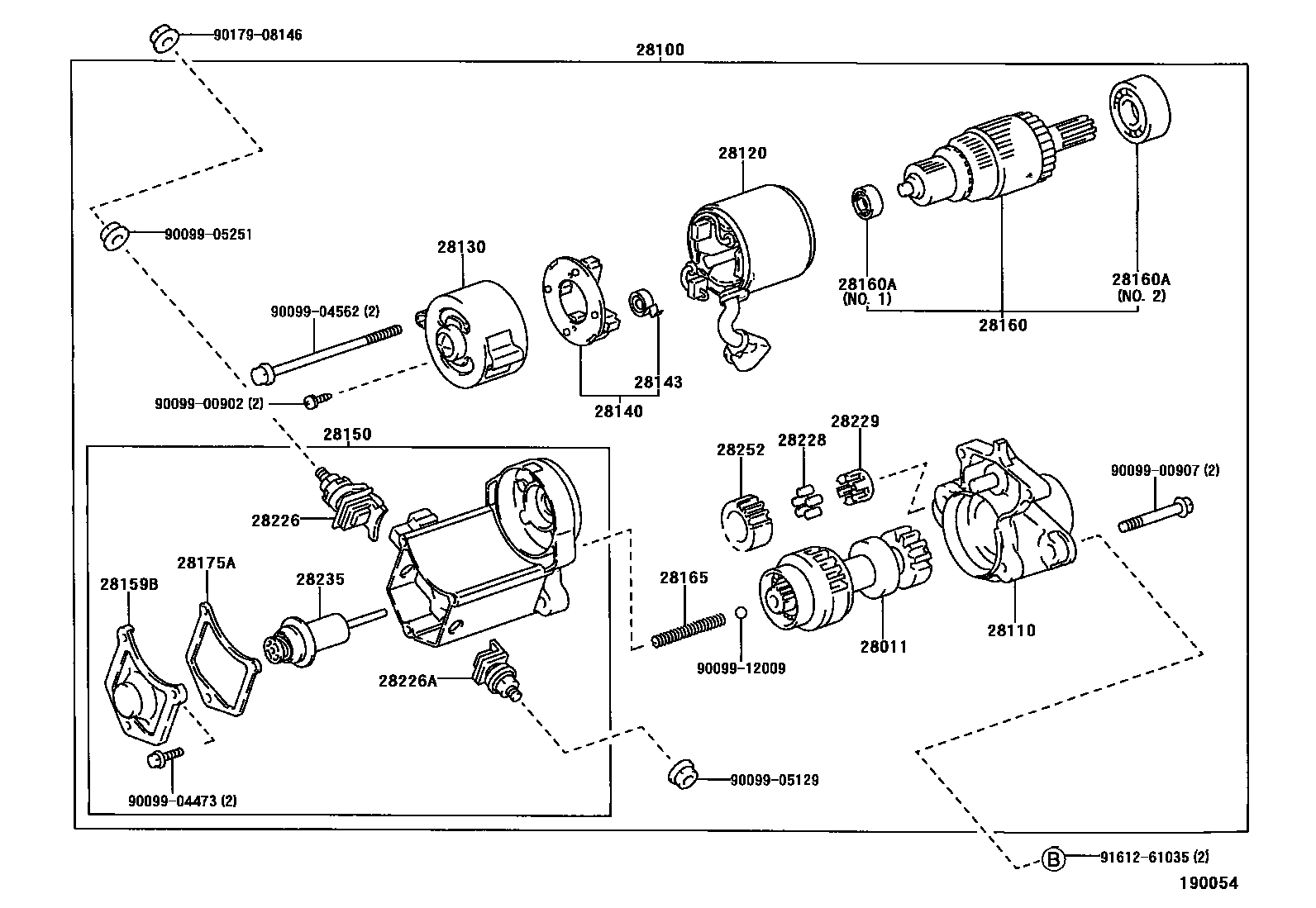

Toyota CELICA — STARTER

0001 112V 1.0KW 0002 112V 1.4KW 0003 112V 1.2KW

28011CLUTCH SUB-ASSY, STARTER

main28011-74060i3SFE..ST202199311

main28011-74070i3SGTE,5SFE..ST204,205199311

28100STARTER ASSY

main28100-74140i5SFE..ST204199311

12V 1.4KW

main28100-74200i3SFE..ST202199311

12V 1.0KW

main28100-74210i3SGTE..ST205199402

12V 1.2KW

28110HOUSING ASSY, STARTER DRIVE

main28110-74090i3SGTE..ST205199402

main28110-74100i5SFE..ST204199311

main28110-74110i3SFE..ST202199311

28120YOKE ASSY, STARTER

main28120-26071i3SFE..ST202199311

main28120-66040i5SFE..ST204199409

main28120-74070i5SFE..ST204199311-199409

main28120-76061i3SGTE..ST205199402

28130FRAME ASSY, STARTER COMMUTATOR END

main28130-74100i5SFE..ST204199311

main28130-74110i3SFE..ST202199311

main28130-74210i3SGTE..ST205199402

28140HOLDER ASSY, STARTER BRUSH

main28140-74010i3SFE..ST202199311

main28140-74070i5SFE..ST204199311

main28140-74120i3SGTE..ST205199402

28143SPRING, STARTER BRUSH

main28143-76060×4i3SGTE..ST205199402

main90099-17112×4i3SFE,5SFE..ST202,204199311

28150SWITCH ASSY, MAGNET STARTER

main28150-74130i5SFE..ST204199311-199409

sub28150-74180

main28150-74140i5SFE..ST204199409

main28150-74200i3SFE..ST202199311

main28150-74210i3SGTE..ST205199402

28159BCOVER, MAGNET SWITCH

main28159-10040i3SFE..ST202199311

main28159-55050i3SGTE,5SFE..ST204,205199311

28160ARMATURE ASSY, STARTER

main28160-26071i3SFE..ST202199311

main28160-74070i5SFE..ST204199311

main28160-76060i3SGTE..ST205199402

28160ABEARING, STARTER ARMATURE

main28253-45020i3SFE..ST202199311

NO.1

main90099-10113i3SFE..ST202199311

NO.2

main90099-10196i3SGTE,5SFE..ST204,205199311

NO.2

main90099-10197i3SGTE,5SFE..ST204,205199311

NO.1

28165SPRING, STARTER MAGNET SWITCH RETURN

main28165-74010i3SFE..ST202199311

main28165-74070i3SGTE,5SFE..ST204,205199311

28175AGASKET, MAGNET SWITCH COVER

main28175-10040i3SFE..ST202199311

main28175-55050i3SGTE,5SFE..ST204,205199311

28226STARTER KIT, BATTERY TERMINAL

main28226-55050i3SGTE,5SFE..ST204,205199311

sub28226-64370

main28226-70040i3SFE..ST202199311

28226ASTARTER KIT, MOTOR TERMINAL

main28226-72010i3SFE..ST202199311

main28226-74070i3SGTE,5SFE..ST204,205199311

28228ROLLER, STARTER IDLE GEAR CLUTCH

main28228-26040×5i3S#,5SFE..ST20#199311

28229RETAINER, STARTER IDLE GEAR

main28229-26040i3SFE..ST202199311

main28229-74070i3SGTE,5SFE..ST204,205199311

28235PLUNGER, MAGNET SWITCH

main28235-74060i3SFE..ST202199311

main28235-74130i3SGTE,5SFE..ST204,205199311

28252GEAR, STARTER IDLE

main28254-54070i3SFE..ST202199311

main28254-74070i3SGTE,5SFE..ST204,205199311

9009900902

main90099-00902

9009900907

main90099-00907

9009904473

main90099-04473

9009904562

main90099-04562

9009905129

main90099-05129

9009905251

main90099-05251

9009912009

main90099-12009

9017908146

main90179-08146

9161261035

main91612-61035

28 parts on this diagram · 3 diagrams in section
