Toyota CELICA — STANDARD TOOL

09101TOOL SET, STANDARD W/O JACK

main09101-12041iRA40,TA40197708-197908

main09101-14110iRA40,TA40197908-198107

sub09101-21022

09110JACK ASSY

main09110-14012iRA40,TA40197708-197908

main09110-14013iRA40,TA40197908-198107

sub09111-14030

09113HANDLE, JACK

main09113-14010iRA40,TA40197708-198107

09120BAG, TOOL

main09120-12011iRA40,TA40197708-198107

09130PLIERS

main09130-00010iRA40,TA40197708-198107

sub09130-00012

09135DRIVER, SCREW

main09135-00010iRA40,TA40197708-198107

sub99915-10700

09140SPANNER SET

main09140-12011iRA40,TA40197708-198107

09141SPANNER

main09141-00032iRA40,TA40197708-198107

10X12

sub99914-11012

main09141-12011iRA40,TA40197708-198107

8X10

sub99914-10810

main09141-12020iRA40,TA40197708-198107

14X17

sub99914-11417

09150WRENCH, HUB NUT BOX

main09150-00010iRA40,TA40197708-197908

main09150-35020iRA40,TA40197908-198107

sub09150-40010

09155WRENCH, SPARK PLUG

main09155-26010iRA40,TA40197908-198107

main09155-51010iRA40,TA40197708-197908

09184STOPPER, WHEEL

main09184-00010iRA40,TA40197708-198107

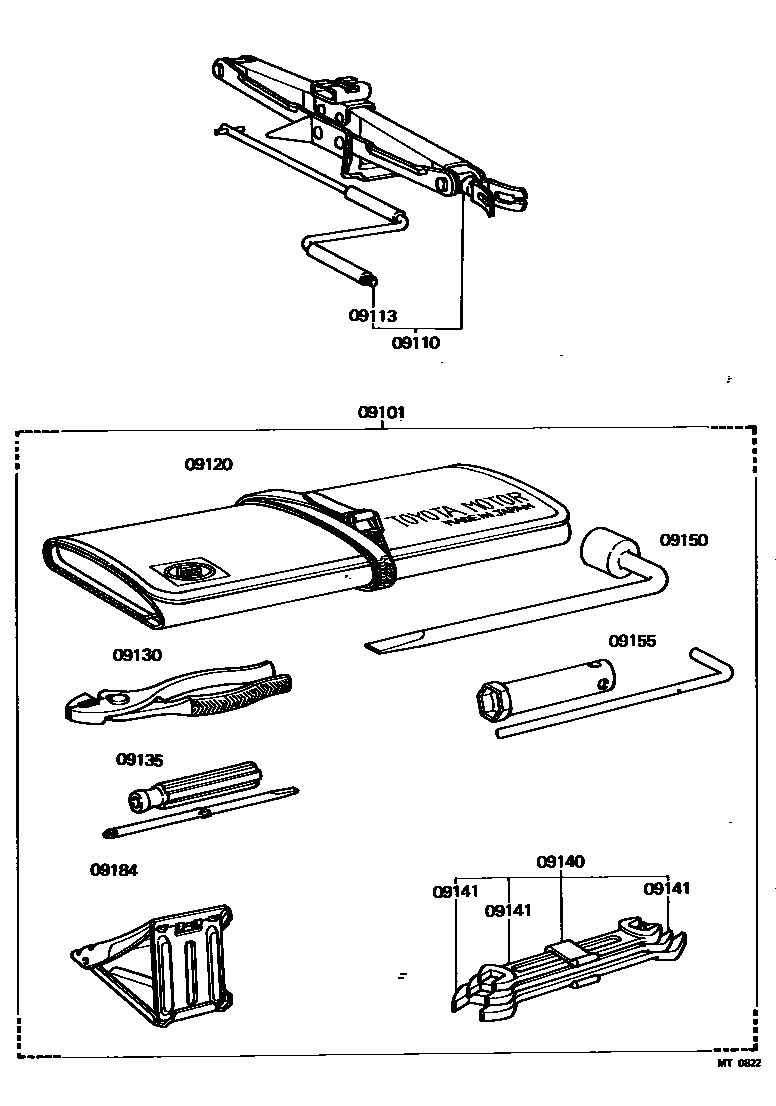

11 parts on this diagram · 1 diagram in section
