Toyota CELICA — SPEAKER

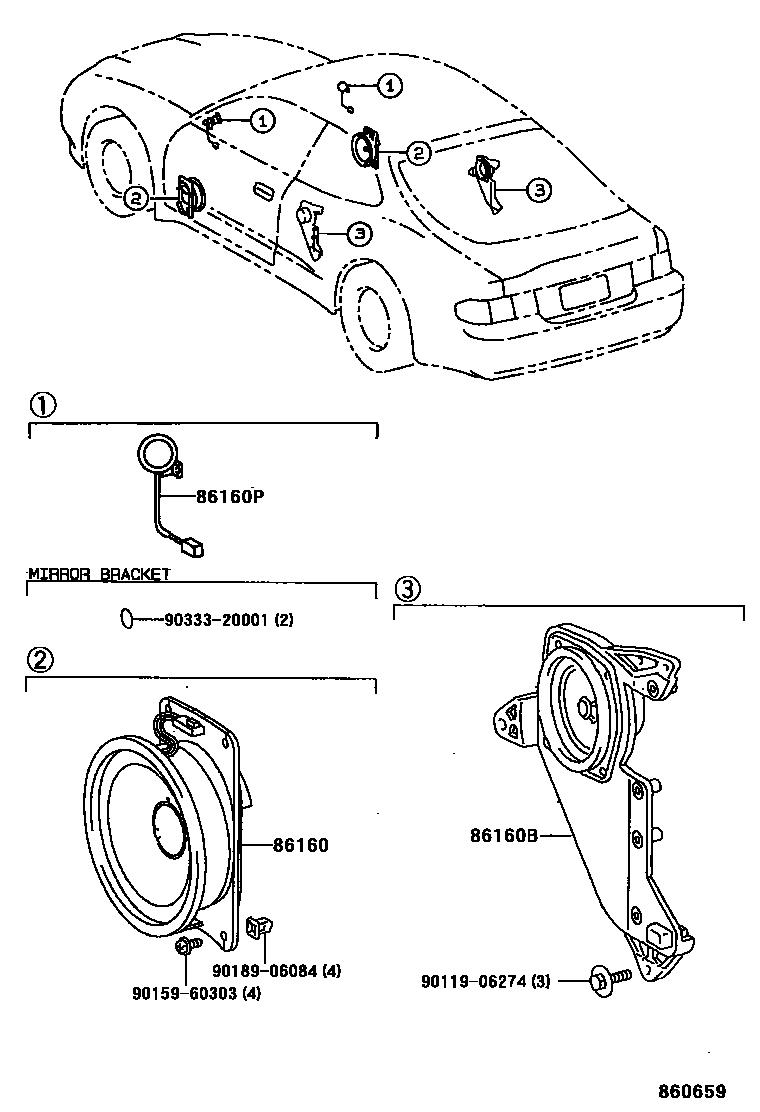

Parts diagram

86160SPEAKER ASSY, FRONT NO.1

main86160-2B140i199311-199508

15W,OD=160

main86160-2B150i199311

15W,OD=208

86160BSPEAKER ASSY, REAR

main86160-2B210i199311

RH

main86160-2B220i199311

LH

86160PSPEAKER ASSY, FRONT NO.2

main86160-2B170i199508

RH

main86160-2B180i199508

LH

9011906274

main90119-06274

9015960303

main90159-60303

9018906084

main90189-06084

9033320001

main90333-20001

7 parts on this diagram · 1 diagram in section

SPEAKER for Toyota CELICA

This section contains 7 genuine Toyota parts for the SPEAKER system of the Toyota CELICA. Key components include: SPEAKER ASSY, FRONT NO.1, SPEAKER ASSY, REAR, SPEAKER ASSY, FRONT NO.2.
