Toyota CELICA — SIDE MOULDING

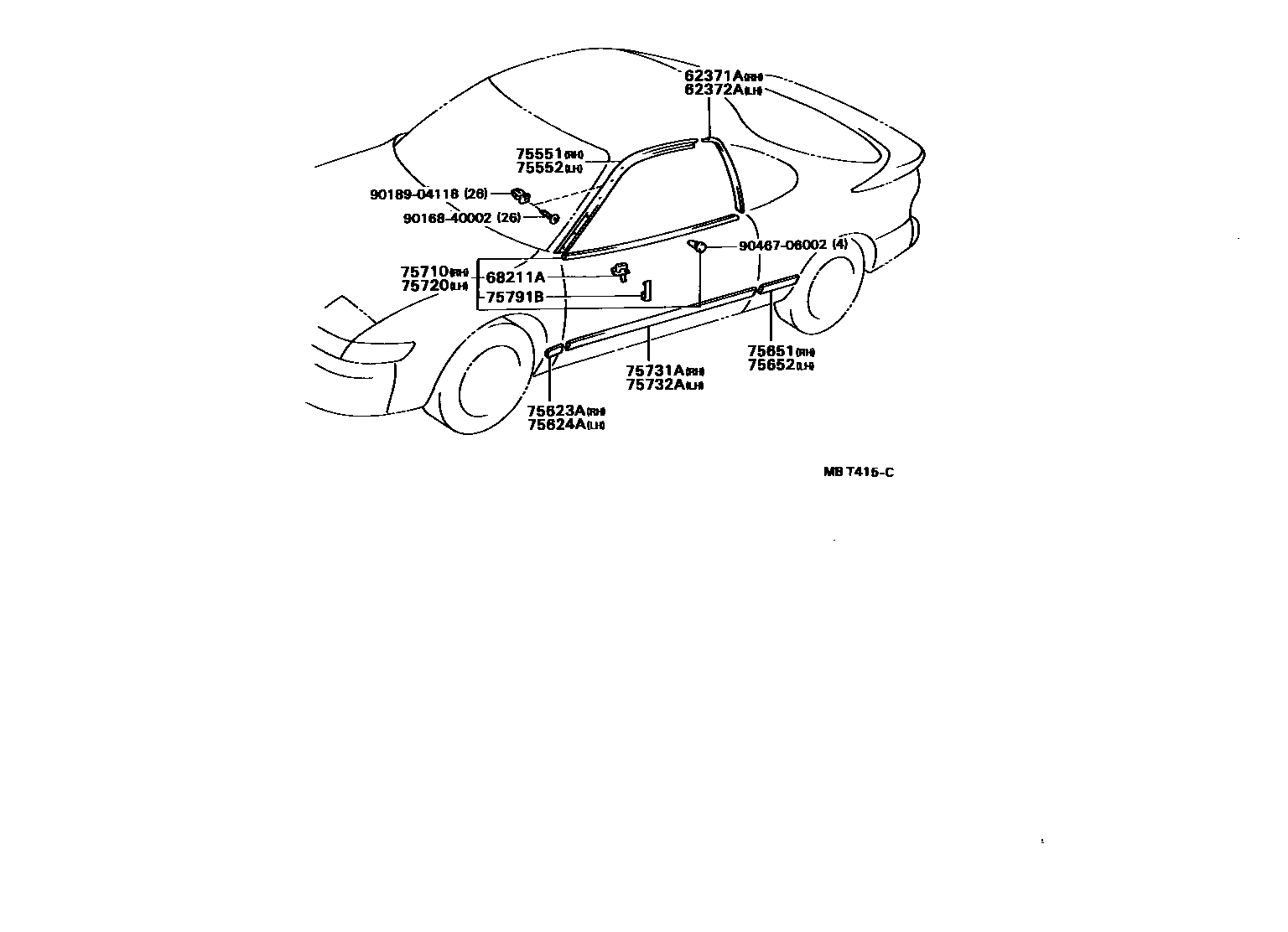

Parts diagram
62371ARETAINER, ROOF SIDE RAIL WEATHER STRIP, REAR RH
main62371-20050i198910-199311
62372ARETAINER, ROOF SIDE RAIL WEATHER STRIP, REAR LH
main62372-20050i198910-199311
68211ACLIP, DOOR BELT MOULDING
main68211-20080×12i198910-199311
75551MOULDING, ROOF DRIP SIDE FINISH, RH
main75551-20400i198910-199311
75552MOULDING, ROOF DRIP SIDE FINISH, LH
main75552-20400i198910-199311
75623AMOULDING, FRONT FENDER, OUTSIDE REAR RH
main75623-20290-01i198910-199005
W(COLORED MOULDING),BLACK,202
main75623-20290-02i198910-199005
W(COLORED MOULDING),RED MICA,3H4
main75623-20290-08i198910-199005
W(COLORED MOULDING),SUPER WHITE 2,040
main75623-20290-12i198910-199005
W(COLORED MOULDING),SUPER RED 2,3E5
main75623-20290-13i198910-199005
W(COLORED MOULDING),BLUISH GRAY M,182
main75623-20290-14i198910-199005
W(COLORED MOULDING),BLUE MICA M,8G7
main75623-20291-01i199005-199008
W(COLORED MOULDING),BLACK,202
main75623-20291-02i199005-199008
W(COLORED MOULDING),RED MICA,3H4
main75623-20291-03i199008-199108
W(COLORED MOULDING),BLUISH SILVER M,181
main75623-20291-08i199008-199311
W(COLORED MOULDING),SUPER WHITE 2,040
main75623-20291-12i199008-199311
W(COLORED MOULDING),SUPER RED 2,3E5
main75623-20291-13i199008-199311
W(COLORED MOULDING),BLUISH GRAY M,182
main75623-20291-14i199005-199008
W(COLORED MOULDING),BLUE MICA M,8G7
main75623-20291-D0i199108-199311
W(COLORED MOULDING),WINE RED M,3J8
main75623-20291-H0i199108-199311
W(COLORED MOULDING),MEDIUM TURQUOISE M,749
main75623-20291-J0i199108-199311
W(COLORED MOULDING),DARK BLUE M,8J1
main75623-20320-01i198910-199005
BLACK,202
main75623-20320-02i198910-199005
RED MICA,3H4
main75623-20320-08i198910-199005
SUPER WHITE 2,040
main75623-20320-12i198910-199005
SUPER RED 2,3E5
main75623-20320-13i198910-199005
BLUISH GRAY M,182
main75623-20320-14i198910-199005
BLUE MICA M,8G7
main75623-20321-01i199108-199311
BLACK,202
main75623-20321-02i199005-199108
RED MICA,3H4
main75623-20321-03i199005-199108
BLUISH SILVER M,181
main75623-20321-08i199008-199311
SUPER WHITE 2,040
main75623-20321-12i199008-199311
SUPER RED 2,3E5
main75623-20321-13i199008-199311
BLUEISH GRAY M,182
main75623-20321-14i199005-199108
BLUE MICA M,8G7
main75623-20321-D0i199108-199311
WINE RED MICA,3J8
main75623-20321-H0i199108-199311
MEDIUM TURQUOISE M,749
main75623-20321-J0i199108-199311
DARK BCUE M,8J1
main75623-20330i198910-199005
main75623-20331i199005-199311
75624AMOULDING, FRONT FENDER, OUTSIDE REAR LH
main75624-20280-01i198910-199005
W(COLORED MOULDING),BLACK,202
main75624-20280-02i198910-199005
W(COLORED MOULDING),RED MICA,3H4
main75624-20280-08i198910-199005
W(COLORED MOULDING),SUPER WHITE 2,040
main75624-20280-12i198910-199005
W(COLORED MOULDING),SUPER RED 2,3E5
main75624-20280-13i198910-199005
W(COLORED MOULDING),BLUISH GRAY M,182
main75624-20280-14i198910-199005
W(COLORED MOULDING),BLUE MICA M,8G7
main75624-20281-01i199005-199008
W(COLORED MOULDING),BLACK,202
main75624-20281-02i199008-199108
W(COLORED MOULDING),RED MICA,3H4
main75624-20281-03i199008-199108
W(COLORED MOULDING),BLUISH SILVER M,181
main75624-20281-08i199008-199311
W(COLORED MOULDING),SUPER WHITE 2,040
main75624-20281-12i199008-199311
W(COLORED MOULDING),SUPER RED 2,3E5
main75624-20281-13i199005-199008
W(COLORED MOULDING),BLUEISH GRAY M,182
main75624-20281-14i199008-199108
W(COLORED MOULDING),BLUE MICA M,8G7
main75624-20281-D0i199108-199311
W(COLORED MOULDING),WINE RED MICA,3J8
main75624-20281-H0i199108-199311
W(COLORED MOULDING),MEDIUM TURQUOISE M,749
main75624-20281-J0i199108-199311
W(COLORED MOULDING),DARK BLUE M.M,8J1
main75624-20310-01i198910-199005
BLACK,202
main75624-20310-02i198910-199005
RED MICA,3H4
main75624-20310-08i198910-199005
SUPER WHITE 2,040
main75624-20310-12i198910-199005
SUPER RED 2,3E5
main75624-20310-13i198910-199005
BLUISH GRAY M,182
main75624-20310-14i198910-199005
BLUE MICA M,8G7
main75624-20311-01i199005-199311
BLACK,202
main75624-20311-02i199005-199108
RED MICA,3H4
main75624-20311-03i199008-199108
BLUISH SILVER M,181
main75624-20311-08i199005-199311
SUPER WHITE 2,040
main75624-20311-12i199005-199311
SUPER RED 2,3E5
main75624-20311-13i199005-199311
BLUISH GRAY M,182
main75624-20311-14i199005-199108
BLUE MICA M,8G7
main75624-20311-D0i199108-199311
WINE RED MICA,3J8
main75624-20311-H0i199108-199311
MEDIUM TURQUOISE M,749
main75624-20311-J0i199108-199311
DARK BLUE M.M,8J1
main75624-20330i198910-199005
main75624-20331i199005-199311
75651MOULDING, QUARTER, OUTSIDE RH
main75651-20400-01i199008-199311
W(COLORED MOULDING),BLACK,202
main75651-20400-02i198910-199008
W(COLORED MOULDING),RED MICA,3H4
main75651-20400-03i199008-199108
W(COLORED MOULDING),BLUISH SILVER M,181
main75651-20400-08i199008-199311
W(COLORED MOULDING),SUPER WHITE 2,040
main75651-20400-12i198910-199008
W(COLORED MOULDING),SUPER RED 2,3E5
main75651-20400-13i198910-199008
W(COLORED MOULDING),BLUISH GRAY M,182
main75651-20400-14i198910-199008
W(COLORED MOULDING),BLUE MICA M,8G7
main75651-20400-D0i199108-199311
W(COLORED MOULDING),WINE RED M,3J8
main75651-20400-H0i199108-199311
W(COLORED MOULDING),MEDIUM TURQUOISE M,749
main75651-20400-J0i199108-199311
W(COLORED MOULDING),DARK BLUE M.M,8J1
main75651-20430-01i198910-199311
BLACK,202
main75651-20430-02i198910-199108
RED MICA,3H4
main75651-20430-03i199008-199108
BLUISH SILVER M,181
main75651-20430-08i198910-199311
SUPER WHITE 2,040
main75651-20430-12i198910-199311
SUPER RED 2,3E5
main75651-20430-13i198910-199311
BLUISH GRAY M,182
main75651-20430-14i198910-199108
BLUE MICA M,8G7
main75651-20430-D0i199108-199311
WINE RED MICA,3J8
main75651-20430-H0i199108-199311
MEDIUM TURQUOISE M,749
main75651-20430-J0i199108-199311
DARK BLUE MICA,8J1
main75651-20440i198910-199311
75652MOULDING, QUARTER, OUTSIDE LH
main75652-20370-01i198910-199008
W(COLORED MOULDING),BLACK,202
main75652-20370-02i199008-199108
W(COLORED MOULDING),RED MICA,3H4
main75652-20370-03i199008-199108
W(COLORED MOULDING),BLUISH SILVER M,181
main75652-20370-08i198910-199008
W(COLORED MOULDING),SUPER WHITE 2,040
main75652-20370-12i198910-199008
W(COLORED MOULDING),SUPER RED 2,3E5
main75652-20370-13i198910-199008
W(COLORED MOULDING),BLUISH GRAY M,182
main75652-20370-14i198910-199008
W(COLORED MOULDING),BLUE MICA M,8G7
main75652-20370-D0i199108-199311
W(COLORED MOULDING),WINE RED MICA,3J8
main75652-20370-H0i199108-199311
W(COLORED MOULDING),MEDIUM TURQUOISE M,749
main75652-20370-J0i199108-199311
W(COLORED MOULDING),DARK BLUE MICA,8J1
main75652-20400-01i198910-199311
BLACK,202
main75652-20400-02i198910-199108
RED MICA,3H4
main75652-20400-03i199008-199108
BLUISH SILVER M,181
main75652-20400-08i198910-199311
SUPER WHITE 2,040
main75652-20400-12i198910-199311
SUPER RED 2,3E5
main75652-20400-13i198910-199311
BLUISH GRAY M,182
main75652-20400-14i198910-199108
BLUE MICA M,8G7
main75652-20400-D0i199108-199311
WINE RED MICA,3J8
main75652-20400-H0i199108-199311
MEDIUM TURQUOISE M,749
main75652-20400-J0i199108-199311
DARK BLUE MICA,8J1
main75652-20410i198910-199311
75710MOULDING ASSY, FRONT DOOR BELT, RH
main75710-20330i198910-199008
main75710-20331i199008-199311
75720MOULDING ASSY, FRONT DOOR BELT, LH
main75720-20330i198910-199008
main75720-20331i199008-199311
75731AMOULDING, FRONT DOOR, OUTSIDE RH
main75731-20520-01i198910-199004
W(COLORED MOULDING),BLACK,202
main75731-20520-02i198910-199004
W(COLORED MOULDING),RED MICA,3H4
main75731-20520-08i198910-199004
W(COLORED MOULDING),SUPER WHITE 2,040
main75731-20520-12i198910-199004
W(COLORED MOULDING),SUPER RED 2,3E5
main75731-20520-13i198910-199004
W(COLORED MOULDING),BLUISH GRAY M,182
main75731-20520-14i198910-199004
W(COLORED MOULDING),BLUE MICA M,8G7
main75731-20521-01i199008-199311
W(COLORED MOULDING),BLACK,202
main75731-20521-02i199004-199008
W(COLORED MOULDING),RED MICA,3H4
main75731-20521-03i199008-199108
W(COLORED MOULDING),BLUISH SILVER M,181
main75731-20521-08i199004-199008
W(COLORED MOULDING),SUPER WHITE 2,040
main75731-20521-12i199004-199008
W(COLORED MOULDING),SUPER RED 2,3E5
main75731-20521-13i199008-199311
W(COLORED MOULDING),BLUISH GRAY M,182
main75731-20521-14i199008-199108
W(COLORED MOULDING),BLUE MICA M,8G7
main75731-20521-D0i199108-199311
W(COLORED MOULDING),WINE RED MICA,3J8
main75731-20521-H0i199108-199311
W(COLORED MOULDING),MEDIUM TURQUOISEM,749
main75731-20521-J0i199108-199311
W(COLORED MOULDING),DARK BLUE MICA,8J1
main75731-20550-01i198910-199004
BLACK,202
main75731-20550-02i198910-199004
RED MICA,3H4
main75731-20550-08i198910-199004
SUPER WHITE 2,040
main75731-20550-12i198910-199004
SUPER RED 2,3E5
main75731-20550-13i198910-199004
BLUISH GRAY M,182
main75731-20550-14i198910-199004
BLUE MICA M,8G7
main75731-20551-01i199004-199311
BLACK,202
main75731-20551-02i199004-199108
RED MICA,3H4
main75731-20551-03i199008-199108
BLUISH SILVER M,181
main75731-20551-08i199004-199311
SUPER WHITE 2,040
main75731-20551-12i199004-199311
SUPER RED 2,3E5
main75731-20551-13i199004-199311
BLUISH GRAY M,182
main75731-20551-14i199004-199108
BLUE MICA M,8G7
main75731-20551-D0i199108-199311
WINE RED M,3J8
main75731-20551-H0i199108-199311
MEDIUM TURQUOISE M,749
main75731-20551-J0i199108-199311
DARK BLUE MICA,8J1
main75731-20560i198910-199004
main75731-20561i199004-199311
75732AMOULDING, FRONT DOOR, OUTSIDE LH
main75732-20520-01i198910-199004
W(COLORED MOULDING),BLACK,202
main75732-20520-02i198910-199004
W(COLORED MOULDING),RED MICA,3H4
main75732-20520-08i198910-199004
W(COLORED MOULDING),SUPER WHITE 2,040
main75732-20520-12i198910-199004
W(COLORED MOULDING),SUPER RED 2,3E5
main75732-20520-13i198910-199004
W(COLORED MOULDING),BLUISH GRAY M,182
main75732-20520-14i198910-199004
W(COLORED MOULDING),BLUE MICA M,8G7
main75732-20521-01i199004-199008
W(COLORED MOULDING),BLACK,202
main75732-20521-02i199008-199108
W(COLORED MOULDING),RED MICA,3H4
main75732-20521-03i199008-199108
W(COLORED MOULDING),BLUISH SILVER M,181
main75732-20521-08i199008-199311
W(COLORED MOULDING),SUPER WHITE 2,040
main75732-20521-12i199004-199008
W(COLORED MOULDING),SUPER RED 2,3E5
main75732-20521-13i199004-199008
W(COLORED MOULDING),BLUISH GRAY M,182
main75732-20521-14i199008-199108
W(COLORED MOULDING),BLUE MICA M,8G7
main75732-20521-D0i199108-199311
W(COLORED MOULDING),WINE RED M,3J8
main75732-20521-H0i199108-199311
W(COLORED MOULDING),MEDIUM TURQUOISE M,749
main75732-20521-J0i199108-199311
W(COLORED MOULDING),DARK BLUE MICA,8J1
main75732-20550-01i198910-199004
BLACK,202
main75732-20550-02i198910-199004
RED MICA,3H4
main75732-20550-08i198910-199004
SUPER WHITE 2,040
main75732-20550-12i198910-199004
SUPER RED 2,3E5
main75732-20550-13i198910-199004
BLUISH GRAY M,182
main75732-20550-14i198910-199004
BLUE MICA M,8G7
main75732-20551-01i199008-199311
BLACK,202
main75732-20551-02i199004-199108
RED MICA,3H4
main75732-20551-03i199004-199108
BLUISH SILVER M,181
main75732-20551-08i199008-199311
SUPER WHITE 2,040
main75732-20551-12i199008-199311
SUPER RED 2,3E5
main75732-20551-13i199008-199311
BLUISH GRAY M,182
main75732-20551-14i199004-199108
BLUE MICA M,8G7
main75732-20551-D0i199108-199311
WINE RED M,3J8
main75732-20551-H0i199108-199311
MEDIUM TURQUOISE M,749
main75732-20551-J0i199108-199311
DARK BLUE M,8J1
main75732-20560i198910-199004
main75732-20561i199004-199311
75791BCLIP, BELT MOULDING SIDE
main75791-20030×8i198910-199311
9016840002
main90168-40002
9018904118
main90189-04118
9046706002
main90467-06002

17 parts on this diagram · 1 diagram in section

SIDE MOULDING for Toyota CELICA

This section contains 17 genuine Toyota parts for the SIDE MOULDING system of the Toyota CELICA. Key components include: RETAINER, ROOF SIDE RAIL WEATHER STRIP, REAR RH, RETAINER, ROOF SIDE RAIL WEATHER STRIP, REAR LH, CLIP, DOOR BELT MOULDING, MOULDING, ROOF DRIP SIDE FINISH, RH, MOULDING, ROOF DRIP SIDE FINISH, LH.
