Toyota CELICA — SHORT BLOCK ASSEMBLY

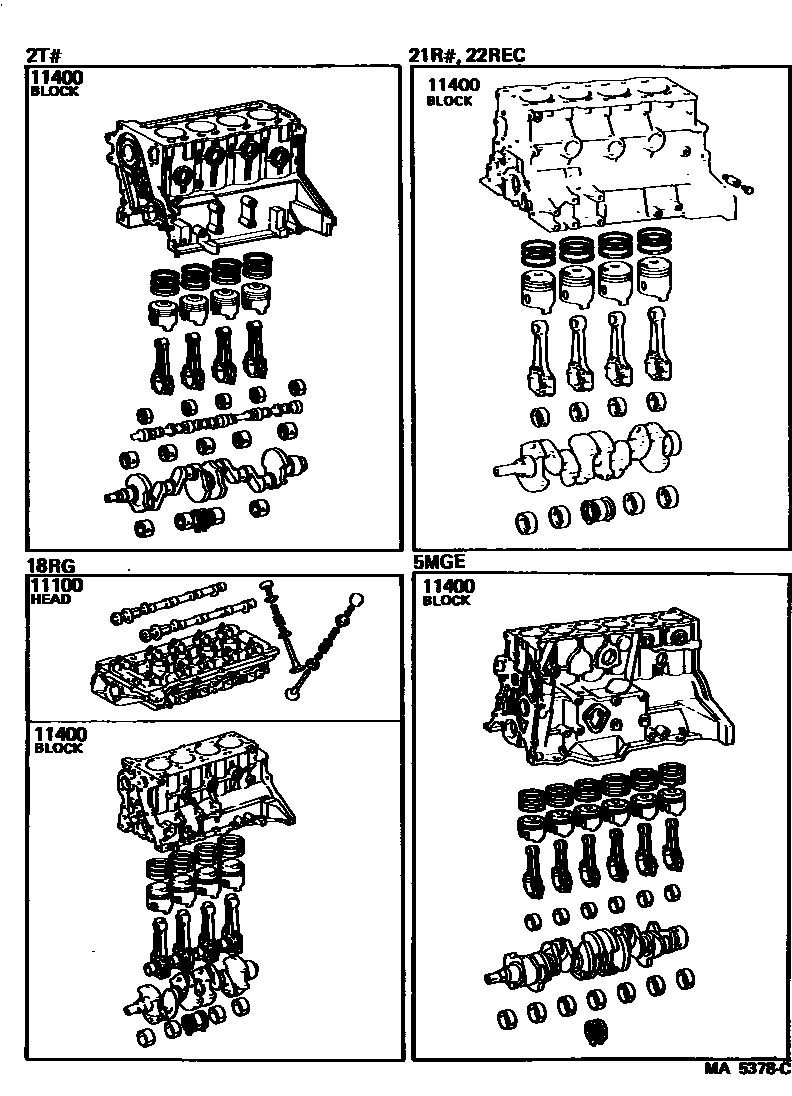

Parts diagram

11100HEAD ASSY, SHORT

main11100-88236i198108-198308

11400BLOCK ASSY, SHORT

main11400-16050i198308-198507

main11400-16060i198308-198507

main11400-26052i198108-198207

main11400-26053i198207-198507

main11400-35040i198408-198507

main11400-37040i198108-198408

main11400-37050i198108-198308

main11400-37060i198408-198507

main11400-43050i198112-198205

main11400-43051i198205-198407

main11400-43052i198407-198408

main11400-43060i198208-198407

main11400-43061i198407-198408

main11400-43070i198308-198407

main11400-43071i198407-198408

main11400-43090i198408-198512

main11400-43110i198408-198512

main11400-43120i198408-198512

main11400-74020i198308-198408

main11400-88290i198108-198308

2 parts on this diagram · 2 diagrams in section

SHORT BLOCK ASSEMBLY for Toyota CELICA

This section contains 2 genuine Toyota parts for the SHORT BLOCK ASSEMBLY system of the Toyota CELICA. Key components include: HEAD ASSY, SHORT, BLOCK ASSY, SHORT.
