Toyota CELICA — SHORT BLOCK ASSEMBLY

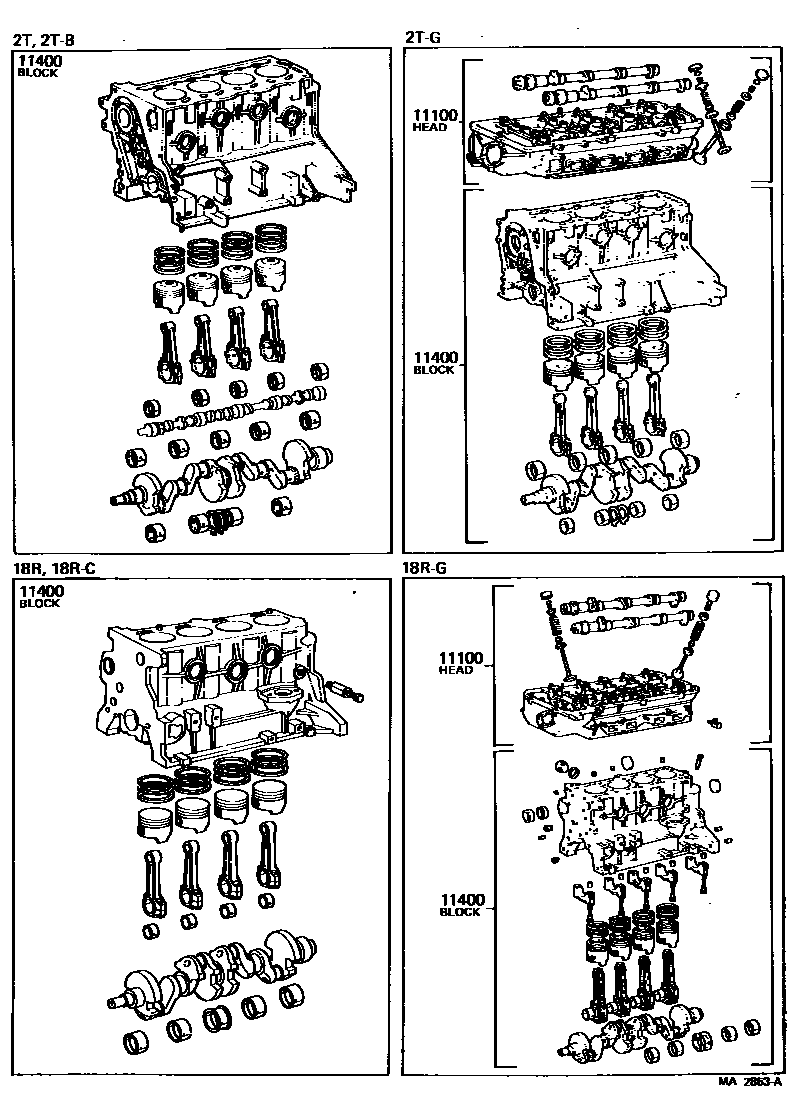

Parts diagram

11100HEAD ASSY, SHORT

main11100-27020i197708-197908

main11100-27021i197908-198107

main11100-88234i197708-197809

main11100-88236i197809-198107

11400BLOCK ASSY, SHORT

main11400-26051i197708-197908

main11400-26052i197908-198107

main11400-26061i197708-197908

main11400-27012i197708-197805

main11400-27013i197805-198107

main11400-34043i197708-198104

main11400-34044i198104-198107

main11400-88234i197708-198106

main11400-88290i198106-198107

2 parts on this diagram · 1 diagram in section

SHORT BLOCK ASSEMBLY for Toyota CELICA

This section contains 2 genuine Toyota parts for the SHORT BLOCK ASSEMBLY system of the Toyota CELICA. Key components include: HEAD ASSY, SHORT, BLOCK ASSY, SHORT.
