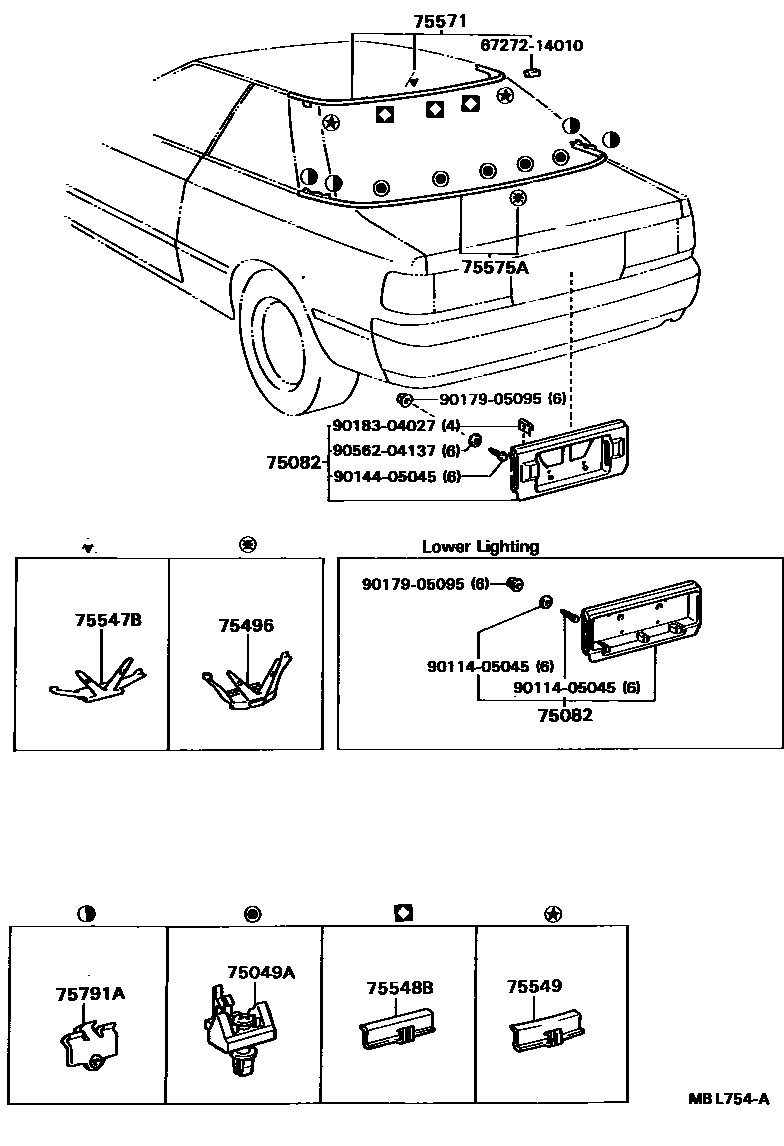

Toyota CELICA — REAR MOULDING
75049ACLIP SUB-ASSY, OUTSIDE MOULDING, NO.2
75082PANEL SUB-ASSY, LOWER BACK FINISH, CENTER
LICENSE PLATE LAMP=SIDE LIGHING
SUPER RED 2,3E5
BLUE MAICA,8E3
SUPER WHITE 2,040
GRAY M,168
75496CLIP, BACK WINDOW OUTSIDE MOULDING, NO.1
75547BCLIP, WINDSHIELD OUTSIDE MOULDING, NO.3
75548BFASTENER, BACK WINDOW OUTSIDE MOULDING
75549FASTENER, BACK WINDOW OUTSIDE MOULDING, NO.2
75571MOULDING, BACK WINDOW, OUTSIDE UPPER
75575AMOULDING, BACK WINDOW, OUTSIDE LOWER
75791ACLIP, BELT MOULDING SIDE
6727214010DUCT, FRONT DOOR AIR, LH
main67272-14010
9011405045
main90114-05045
9014405045
main90144-05045
9017905095
main90179-05095
9018304027
main90183-04027
9056204137
main90562-04137
15 parts on this diagram · 2 diagrams in section
REAR MOULDING for Toyota CELICA
This section contains 24 genuine Toyota parts for the REAR MOULDING system of the Toyota CELICA. Key components include: CLIP SUB-ASSY, OUTSIDE MOULDING, NO.2, PANEL SUB-ASSY, LOWER BACK FINISH, CENTER, CLIP, BACK WINDOW OUTSIDE MOULDING, NO.1, CLIP, WINDSHIELD OUTSIDE MOULDING, NO.3, FASTENER, BACK WINDOW OUTSIDE MOULDING.
