Toyota CELICA — PARTIAL ENGINE ASSEMBLY

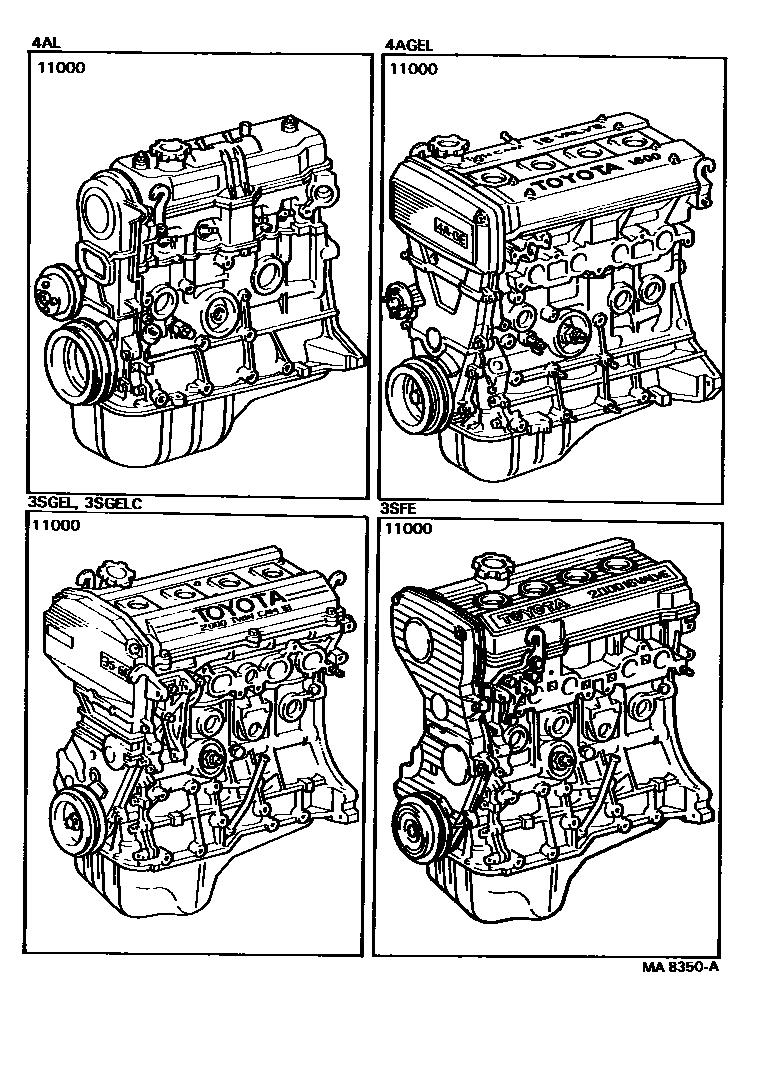

Parts diagram

11000ENGINE ASSY, PARTIAL

main19000-16280i198708-198908

main19000-16460i198708-198908

main19000-74091i198708-198905

main19000-74093i198905-198906

main19000-74095i198906-198908

main19000-74130i198708-198906

main19000-74131i198906-198907

main19000-74132i198907-198908

main19000-88366i198708-198906

main19000-88370i198706-198907

main19000-88376i198907-198908

1 parts on this diagram · 1 diagram in section
