Toyota CELICA — PACKAGE TRAY PANEL & LUGGAGE COMPARTMENT MAT

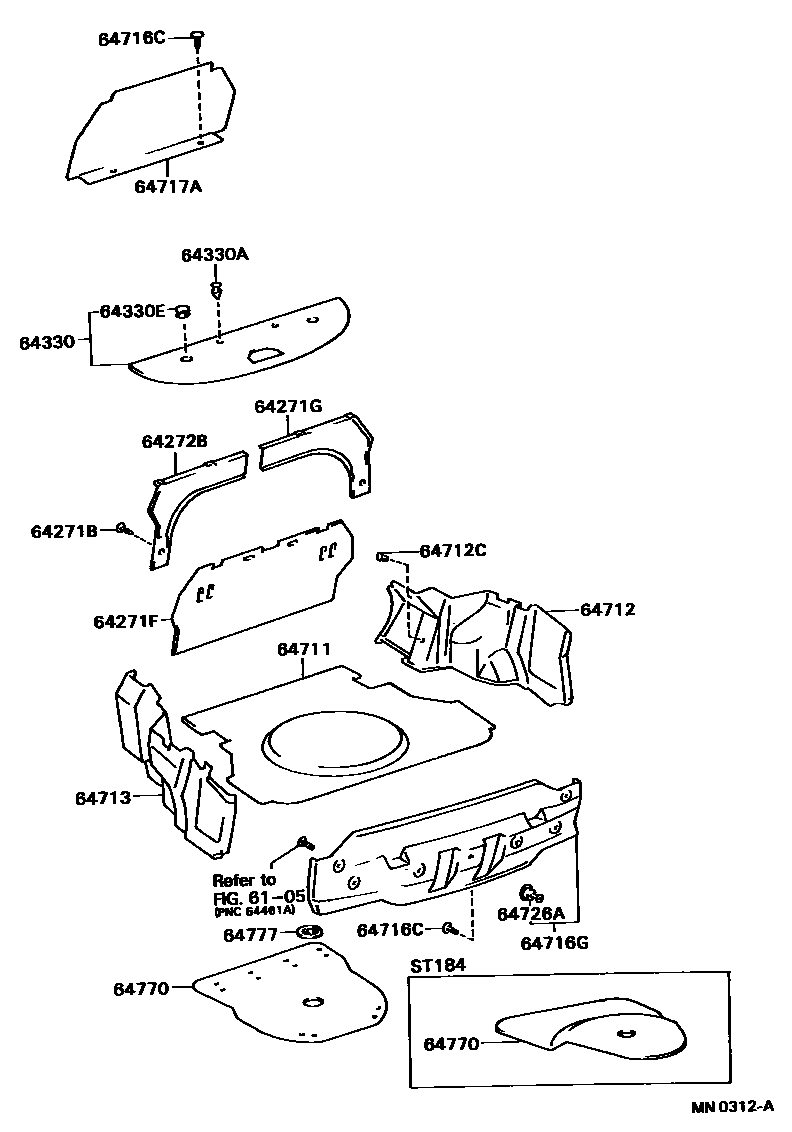

Parts diagram
6105LUGGAGE COMPARTMENT DOOR & LOCK
→ Go to FIG 61-05
64271BCLIP(FOR ROOM PARTITION BOARD)
main90467-06016-33×2i199108-199208
GRAY,TRIM1#,8#
main90467-06016-58×2i198910-199108
GRAY,TRIM1#,8#
64271FTRIM, ROOM PARTITION
main64271-20230i198911-199108
64271GBOARD, ROOM PARTITION, RH
main64271-20180-03i198910-199208
GRAY,TRIM1#,8#
64272BBOARD, ROOM PARTITION, LH
main64272-20020-03i198910-199208
GRAY,TRIM1#,8#
64330PANEL ASSY, PACKAGE TRAY TRIM
main64330-2B200-03i198910-199311
SHADOW GRAY,TRIM1#
main64330-2B200-04i198910-199208
DARK BLUE,TRIM8#
main64330-2B220-03i199008-199311
W(SPOILER),SHADOW GRAY,TRIM1#
main64330-2B220-04i198911-199311
DARK BLUE,TRIM8#
64330ACLIP(FOR PACKAGE TRAY TRIM PANEL)
main90467-08037-13×6i198910-199311
SHADOW GRAY,TRIM1#
main90467-08037-24×6i198910-199108
DARK BLUE,TRIM8#
main90467-08037-J0×6i199108-199208
DARK BLUE,TRIM8#
64330EPLUG(FOR PACKAGE TRAY TRIM PANEL)
main90950-01436-13×2i198910-199009
GRAY,TRIM1#
main90950-01436-B1×2i199009-199311
SHADOW GRAY,TRIM1#
main90950-01436-J0×2i198910-199208
DARK BLUE,TRIM8#
64711MAT, LUGGAGE COMPARTMENT FLOOR
main64711-20630-03i198911-199108
GRAY,TRIM1#,8#
main64711-20640-03i198911-199008
W(SPORTS SEAT),GRAY,TRIM1#,8#
main64711-20640-C0i199108-199208
BLACK,TRIM1#,8#
64712COVER, LUGGAGE COMPARTMENT TRIM, RH
main64712-20170-03i198910-199108
GRAY,TRIM1#,8#
main64712-20170-C0i199108-199208
BLACK,TRIM1#,8#
64712CCLIP(FOR LUGGAGE COMPARTMENT TRIM COVER)
main90467-08056-23×6i198910-199108
GRAY,TRIM1#,8#
main90467-08056-C0×6i199208-199311
BLACK,TRIM1#
64713COVER, LUGGAGE COMPARTMENT TRIM, LH
main64713-20170-03i198910-199108
GRAY,TRIM1#,8#
main64713-20170-C0i199108-199208
BLACK,TRIM1#,8#
64716CCLIP(FOR LUGGAGE COMPARTMENT TRIM REAR COVER)
main90467-07053-01i199108-199311
BLACK,TRIM1#
main90467-07053-23i198910-199108
GRAY,TRIM1#,8#
64716GCOVER, LUGGAGE COMPARTMENT TRIM, REAR
main64716-20320-03i198910-199108
GRAY,TRIM1#,8#
main64716-20320-C0i199108-199208
BLACK,TRIM1#,8#
64717ACOVER, LUGGAGE COMPARTMENT TRIM, FRONT
main64717-20250-03i198911-199108
GRAY,TRIM1#,8#
64726ACLIP, LUGGAGE TRIM, REAR
main64726-20020-01×6i199208-199311
BLACK,TRIM1#
main64726-20020-03×6i198910-199108
GRAY,TRIM1#,8#
64770COVER ASSY, SPARE WHEEL
main64770-20080i198911-199108
main64770-20090i198911-199108
185/70R13 85H
64777CLAMP, SPARE WHEEL COVER
main64777-32030i198911-199108

18 parts on this diagram · 1 diagram in section

PACKAGE TRAY PANEL & LUGGAGE COMPARTMENT MAT for Toyota CELICA

This section contains 18 genuine Toyota parts for the PACKAGE TRAY PANEL & LUGGAGE COMPARTMENT MAT system of the Toyota CELICA. Key components include: LUGGAGE COMPARTMENT DOOR & LOCK, CLIP(FOR ROOM PARTITION BOARD), TRIM, ROOM PARTITION, BOARD, ROOM PARTITION, RH, BOARD, ROOM PARTITION, LH.
