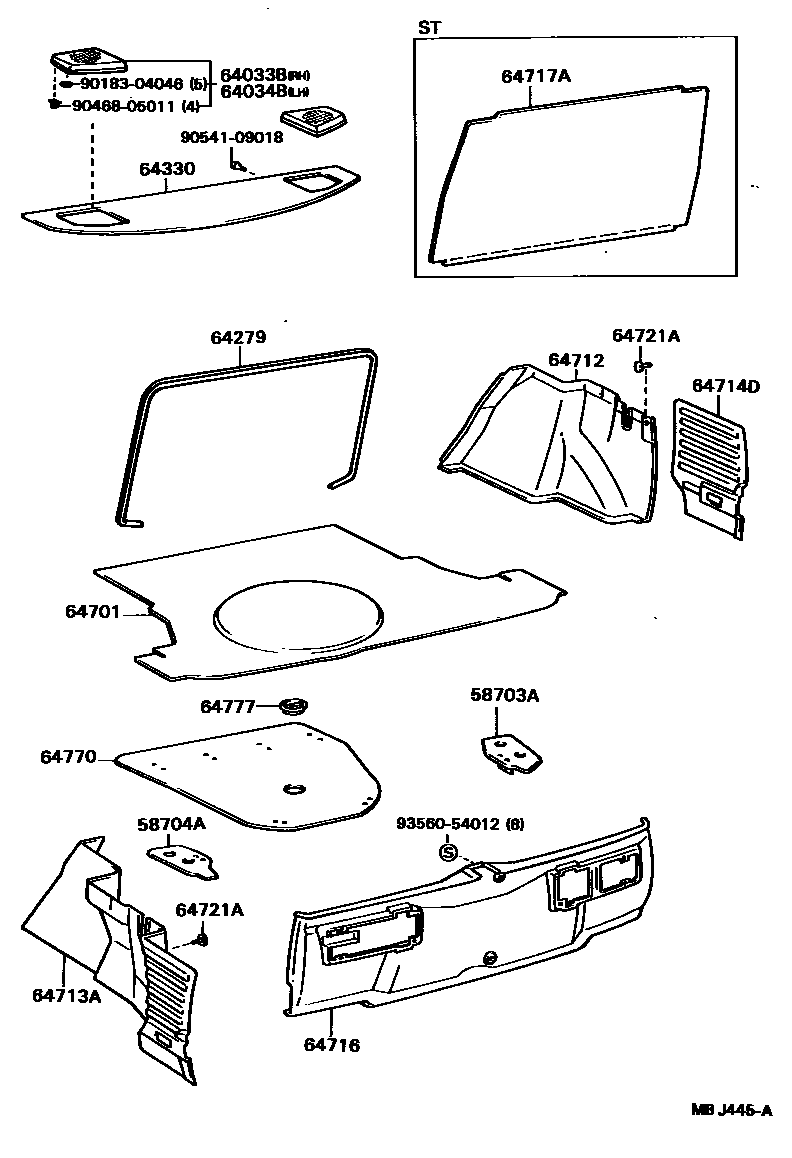

Toyota CELICA — PACKAGE TRAY PANEL & LUGGAGE COMPARTMENT MAT
58703ACOVER SUB-ASSY, LUGGAGE COMPARTMENT SIDE, RH
58704ACOVER SUB-ASSY, LUGGAGE COMPARTMENT SIDE, LH
64033BGRILLE SUB-ASSY, REAR SPEAKER, RH
GRAY,SHADOW GRAY
BLUE,DEEP BLUE
BROWN,BROWN
64034BGRILLE SUB-ASSY, REAR SPEAKER, LH
GRAY,SHADOW GRAY
BLUE,DEEP BLUE
BROWN,BROWN
64279PROTECTOR, ROOM PARTITION
GRAY,SHADOW GRAY
BLUE,DEEP BLUE
BROWN,BROWN
64330PANEL ASSY, PACKAGE TRAY TRIM
W/*SPG,GRAY,SHADOW GRAY
W/*SPG,BLUE,DEEP BLUE
W/*SPG,BROWN,BROWN
W/*SPG,GRAY,SHADOW GRAY
W/*SPG,BLUE,DEEP BLUE
W/*SPG,BROWN,BROWN
W/O *SPG,GRAY,SHADOW GRAY
W/O *SPG,BLUE,DEEP BLUE
W/O *SPG,BROWN,BROWN
W/O *SPG,GRAY,SHADOW GRAY
W/O *SPG,BLUE,DEEP BLUE
W/O *SPG,BROWN,BROWN
GRAY,SHADOW GRAY
BLUE,DEEP BLUE
BROWN,BROWN
64701MAT SUB-ASSY, LUGGAGE COMPARTMENT
GRAY,GRAY
64712COVER, LUGGAGE COMPARTMENT TRIM, RH
64713ACOVER, LUGGAGE COMPARTMENT TRIM, INNER LH
64714DCOVER, LUGGAGE COMPARTMENT TRIM, SIDE, RH
64716COVER, LUGGAGE COMPARTMENT, REAR CENTER
64717ACOVER, LUGGAGE COMPARTMENT TRIM, FRONT
64721ACLIP(FOR LUGGAGE COMPARTMENT TRIM INNER COVER)
BLACK,BLACK
64770COVER ASSY, SPARE WHEEL
64777CLAMP, SPARE WHEEL COVER
9018304046
main90183-04046
9046805011
main90468-05011
9054109018
main90541-09018
9356054012
main93560-54012
19 parts on this diagram · 1 diagram in section
PACKAGE TRAY PANEL & LUGGAGE COMPARTMENT MAT for Toyota CELICA
This section contains 19 genuine Toyota parts for the PACKAGE TRAY PANEL & LUGGAGE COMPARTMENT MAT system of the Toyota CELICA. Key components include: COVER SUB-ASSY, LUGGAGE COMPARTMENT SIDE, RH, COVER SUB-ASSY, LUGGAGE COMPARTMENT SIDE, LH, GRILLE SUB-ASSY, REAR SPEAKER, RH, GRILLE SUB-ASSY, REAR SPEAKER, LH, PROTECTOR, ROOM PARTITION.
