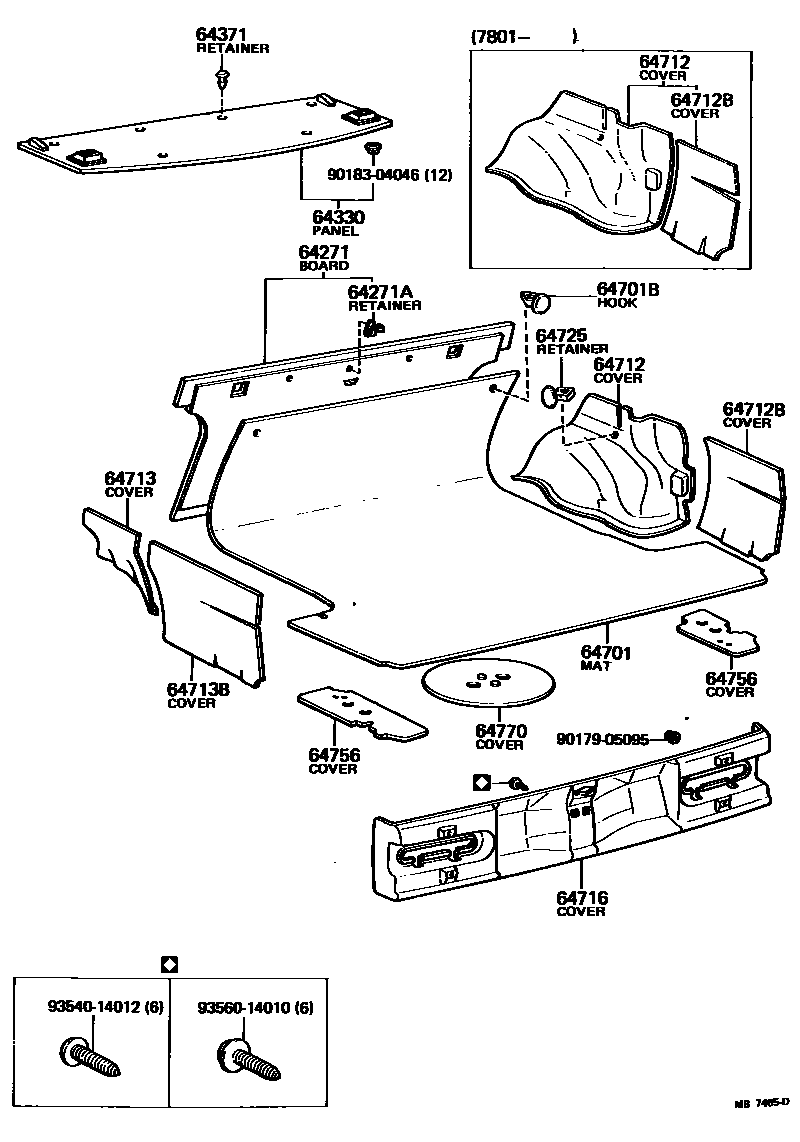

Toyota CELICA — PACKAGE TRAY PANEL & LUGGAGE COMPARTMENT MAT
64271BOARD, ROOM PARTITION, NO.1
64271ARETAINER, ROOM PARTITION BOARD
64330PANEL ASSY, PACKAGE TRAY TRIM
BLACK,BLACK,TRIM2#
BLUE,BLUE,TRIM8#
LIGHT BROWN,BROWN,TRIM4#
BLACK,BLACK,TRIM2#
BLUE,BLUE,TRIM8#
LIGHT BROWN,BROWN,TRIM4#
BLACK,BLACK,TRIM2#
BLUE,BLUE,TRIM8#
LIGHT BROWN,BROWN,TRIM4#
64371RETAINER, PACKAGE TRAY TRIM
BLACK,BLACK,TRIM2#
BLUE,BLUE,TRIM8#
LIGHT BROWN,BROWN,TRIM4#
BLACK,BLACK,TRIM2#
BLUE,BLUE,TRIM8#
LIGHT BROWN,BEIGE,TRIM4#
64701MAT SUB-ASSY, LUGGAGE COMPARTMENT
64701BHOOK, MALE(FOR LUGGAGE COMPARTMENT MAT)
GRAY,GRAY,TRIM2#
64712COVER, LUGGAGE COMPARTMENT TRIM, RH
64712BCOVER, LUGGAGE COMPARTMENT TRIM, SIDE, RH
64713COVER, LUGGAGE COMPARTMENT TRIM, LH
64713BCOVER, LUGGAGE COMPARTMENT TRIM, SIDE, LH
64716COVER, LUGGAGE COMPARTMENT, REAR CENTER
64725RETAINER, LUGGAGE COMPARTMENT COVER, NO.1
GRAY,GRAY,TRIM2#
64756COVER, LUGGAGE COMPARTMENT SIDE
RH
LH
64770COVER ASSY, SPARE WHEEL
9017905095
main90179-05095
9018304046
main90183-04046
9354014012
main93540-14012
9356014010
main93560-14010
18 parts on this diagram · 1 diagram in section
PACKAGE TRAY PANEL & LUGGAGE COMPARTMENT MAT for Toyota CELICA
This section contains 18 genuine Toyota parts for the PACKAGE TRAY PANEL & LUGGAGE COMPARTMENT MAT system of the Toyota CELICA. Key components include: BOARD, ROOM PARTITION, NO.1, RETAINER, ROOM PARTITION BOARD, PANEL ASSY, PACKAGE TRAY TRIM, RETAINER, PACKAGE TRAY TRIM, MAT SUB-ASSY, LUGGAGE COMPARTMENT.
