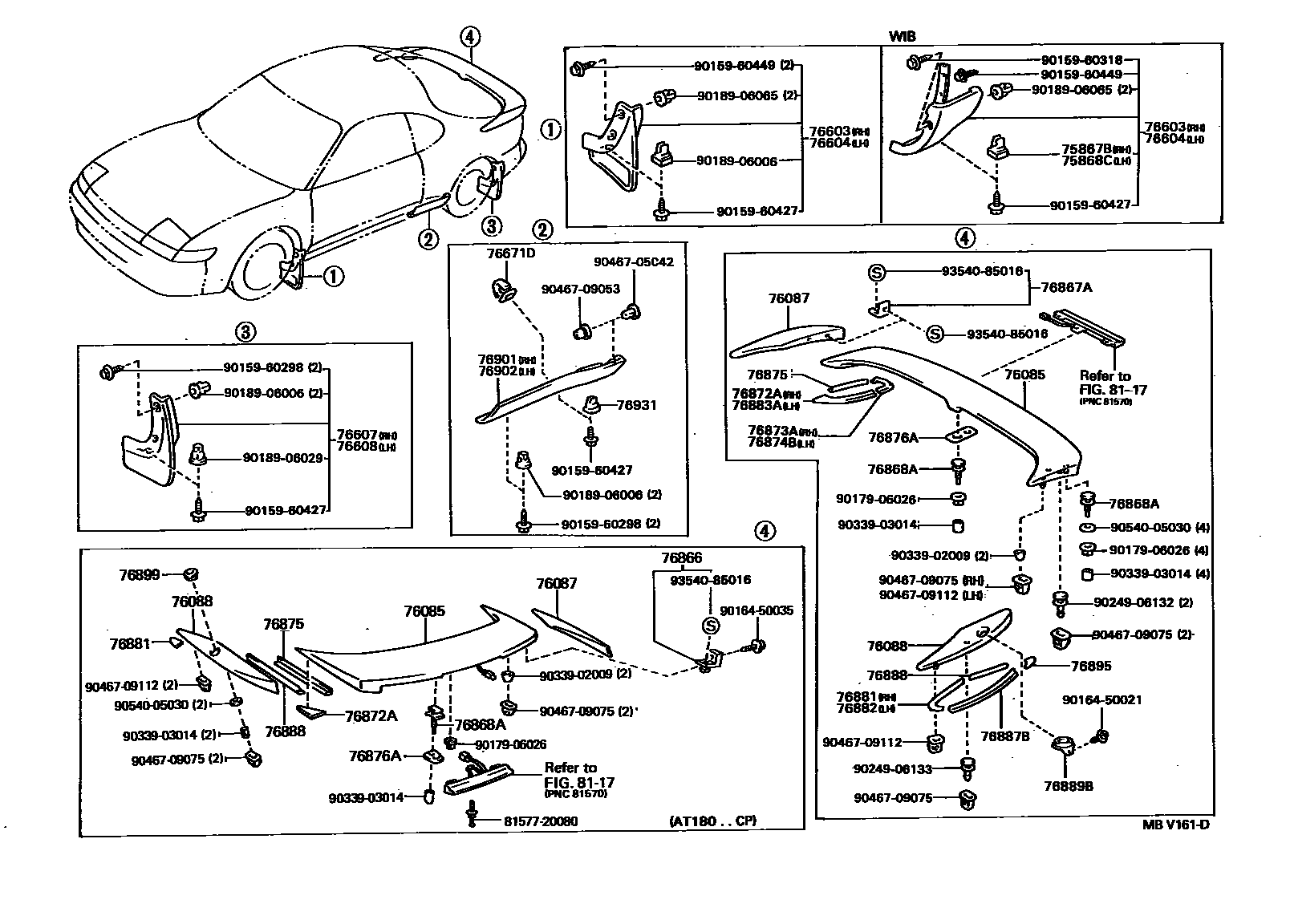

Toyota CELICA — MUDGUARD & SPOILER
75867BCLIP, ROCKER PANEL MOULDING
APPEARANCE PACKAGE
75868CCLIP, REAR SPOILER, NO.2
APPEARANCE PACKAGE
76085SPOILER SUB-ASSY, REAR
76087SPOILER SUB-ASSY, REAR NO.1
76088SPOILER SUB-ASSY, REAR NO.2
W(REAR SPOILER)
W(REAR SPOILER & ANTENA)
76603MUDGUARD SUB-ASSY, FRONT FENDER, RH
SUPER RED 2,3E5
BLUEISH GRAY M,182
SUPER WHITE 2,040
BLACK,202
WINE RED MICA,3J8
MEDIUM TURQUOISE M,749
DARK BLUE M.M,8J1
BLACK,202
APPEARANCE PACKAGE,BLACK,202
RED MICA,3H4
APPEARANCE PACKAGE,RED MICA,3H4
APPEARANCE PACKAGE,BLUEISH GRAY M,182
BLUEISH GRAY M,182
APPEARANCE PACKAGE,SUPER WHITE 2,040
SUPER WHITE 2,040
APPEARANCE PACKAGE,SUPER RED 2,3E5
SUPER RED 2,3E5
APPEARANCE PACKAGE,BLUISH SILVER M,181
BLUISH SILVER M,181
BLUE MICA M,8G7
APPEARANCE PACKAGE,BLUE MICA M,8G7
WINE RED MICA,3J8
MEDIUM TURQUOISE M,749
DARK BLUE M.M,8J1
76604MUDGUARD SUB-ASSY, FRONT FENDER, LH
SUPER RED 2,3E5
BLUEISH GRAY M,182
SUPER WHITE 2,040
BLACK,202
WINE RED MICA,3J8
MEDIUM TURQUOISE M,749
DARK BLUE M.M,8J1
BLACK,202
APPEARANCE PACKAGE,BLACK,202
APPEARANCE PACKAGE,RED MICA,3H4
RED MICA,3H4
APPEARANCE PACKAGE,BLUEISH GRAY M,182
BLUEISH GRAY M,182
APPEARANCE PACKAGE,SUPER WHITE 2,040
SUPER WHITE 2,040
APPEARANCE PACKAGE,SUPER RED 2,3E5
SUPER RED 2,3E5
BLUISH SILVER M,181
APPEARANCE PACKAGE,BLUISH SILVER M,181
BLUE MICA M,8G7
APPEARANCE PACKAGE,BLUE MICA M,8G7
WINE RED MICA,3J8
MEDIUM TURQUOISE M,749
DARK BLUE M.M,8J1
76607MUDGUARD SUB-ASSY, QUARTER PANEL, REAR RH
BLACK,202
SUPER RED 2,3E5
BLUEISH GRAY M,182
SUPER WHITE 2,040
WINE RED MICA,3J8
MEDIUM TURQUOISE M,749
DARK BLUE M.M,8J1
76608MUDGUARD SUB-ASSY, QUARTER PANEL, REAR LH
BLACK,202
SUPER RED 2,3E5
BLUEISH GRAY M,182
SUPER WHITE 2,040
WINE RED MICA,3J8
MEDIUM TURUQUOISE M,749
DARK BLUE M.M,8J1
76671DCLIP, SIDE MUDGUARD
sub76671-14020
76866RETAINER, REAR SPOILER, NO.2
76867ARETAINER, REAR SPOILER, NO.3
76868ARETAINER, REAR SPOILER, NO.4
76872APROTECTOR, REAR SPOILER, NO.1
76873APROTECTOR, REAR SPOILER, RH
sub90999-91054
76874BPROTECTOR, REAR SPOILER, LH
sub90999-91054
76876APROTECTOR, REAR SPOILER, NO.10
76881PROTECTOR, REAR SPOILER SIDE, NO.1 RH
76882PROTECTOR, REAR SPOILER SIDE, NO.1 LH
76883APROTECTOR, REAR SOPILER, NO.7
76887BPROTECTOR, REAR SPOILER SIDE, NO.2
sub90999-91056
76889BSEAL, REAR SPOILER, NO.1
76895PROTECTOR, REAR SPOILER, NO.5
76899PROTECTOR, REAR SPOILER, SIDE NO.6
76901MUDGUARD SUB-ASSY, SIDE, RH
APPEARANCE PACKAGE,BLACK,202
BLACK,202
APPEARANCE PACKAGE,RED MICA,3H4
RED MICA,3H4
BLUISH SILVER M,181
APPEARANCE PACKAGE,BLUISH SILVER M,181
SUPER WHITE 2,040
APPEARANCE PACKAGE,SUPER WHITE 2,040
SUPER RED 2,3E5
APPEARANCE PACKAGE,SUPER RED 2,3E5
APPEARANCE PACKAGE,BLUISH GRAY M,182
BLUISH GRAY M,182
APPEARANCE PACKAGE,BLUE MICA M,8G7
BLUE MICA M,8G7
WINE RED M,3J8
MEDIUM TURQUDISE M,749
DARK BLUE M,8J1
76902MUDGUARD SUB-ASSY, SIDE, LH
APPEARANCE PACKAGE,BLACK,202
BLACK,202
APPEARANCE PACKAGE,RED MICA,3H4
RED MICA,3H4
BLUISH SILVER M,181
APPEARANCE PACKAGE,BLUISH SILVER M,181
SUPER WHITE 2,040
APPEARANCE PACKAGE,SUPER WHITE 2,040
SUPER RED 2,3E5
APPEARANCE PACKAGE,SUPER RED 2,3E5
APPEARANCE PACKAGE,BLUISH GRAY M,182
BLUISH GRAY M,182
APPEARANCE PACKAGE,BLUE MICA M,8G7
BLUE MICA M,8G7
WINE RED M,3J8
MEDIUM TURQUOISE M,749
DARK BLUE M,8J1
76931RETAINER, SIDE MUDGUARD, NO.3
APPEARANCE PACKAGE
8117
8157720080
main81577-20080
9015960298
main90159-60298
9015960318
main90159-60318
9015960427
main90159-60427
9015960449
main90159-60449
9016450021
main90164-50021
9016450035
main90164-50035
9017906026
main90179-06026
9018906006
main90189-06006
9018906029
main90189-06029
9018906065
main90189-06065
9024906132
main90249-06132
9024906133
main90249-06133
9033902009
main90339-02009
9033903014
main90339-03014
9046705042
main90467-05042
9046709053
main90467-09053
9046709075
main90467-09075
9046709112
main90467-09112
9054005030
main90540-05030
9354085016
main93540-85016
51 parts on this diagram · 1 diagram in section
