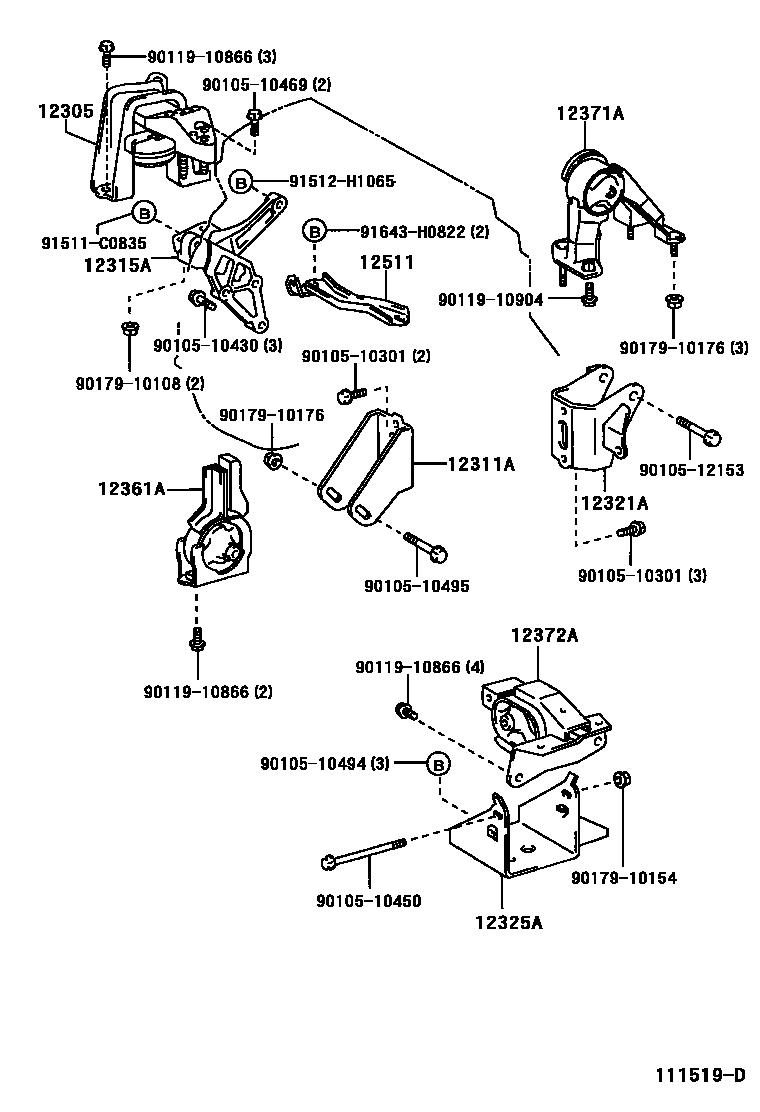

Toyota CELICA — MOUNTING

0001 1 0002 1

12305INSULATOR SUB-ASSY, ENGINE MOUNTING, RH

main12305-22050i2ZZGE..ZZT231..6F199908-200012

main12305-22051i2ZZGE..ZZT231..6F200012-200208

main12305-22060i2ZZGE..ZZT231..4FC199908-200208

main12305-22300i2ZZGE..ZZT231..6F200310-200509

main12305-22310i2ZZGE..ZZT231..4FC200310-200509

12311ABRACKET, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE)

main12311-22020i2ZZGE..ZZT231..6F200208-200509

main12311-22040i2ZZGE..ZZT231..4FC200208-200509

12315ABRACKET, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE)

main12315-22030i2ZZGE..ZZT231199908-200208

12321ABRACKET, ENGINE MOUNTING, REAR(FOR TRANSVERSE ENGINE)

main12321-22030i2ZZGE..ZZT231..6F200208-200509

main12321-22040i2ZZGE..ZZT231..4FC199908-200208

12325ABRACKET, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)

main12325-22010i2ZZGE..ZZT231..6F199908-200208

main12325-22030i2ZZGE..ZZT231..4FC199908-200208

12361AINSULATOR, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE)

main12361-22030i2ZZGE..ZZT231..6F199908-200208

main12361-22040i2ZZGE..ZZT231..4FC200208-200509

12371AINSULATOR, ENGINE MOUNTING, REAR

main12371-22060i2ZZGE..ZZT231..6F200208-200509

main12371-22070i2ZZGE..ZZT231..4FC200208-200509

12372AINSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)

main12372-22020i2ZZGE..ZZT231..6F200208-200509

main12372-22030i2ZZGE..ZZT231..4FC200208-200509

12511BRACKET, ALTERNATOR, NO.1

main12511-88600i2ZZGE..ZZT231199908-200109

main12511-88601i2ZZGE..ZZT231200109-200208

9010510301

main90105-10301

9010510430

main90105-10430

9010510450

main90105-10450

9010510469

main90105-10469

9010510494

main90105-10494

9010510495

main90105-10495

9010512153

main90105-12153

9011910866

main90119-10866

9011910904

main90119-10904

9017910108

main90179-10108

9017910154

main90179-10154

9017910176

main90179-10176

91511C0835

main91511-C0835

91512H1065

main91512-H1065

91643H0822

main91643-H0822

24 parts on this diagram · 2 diagrams in section
