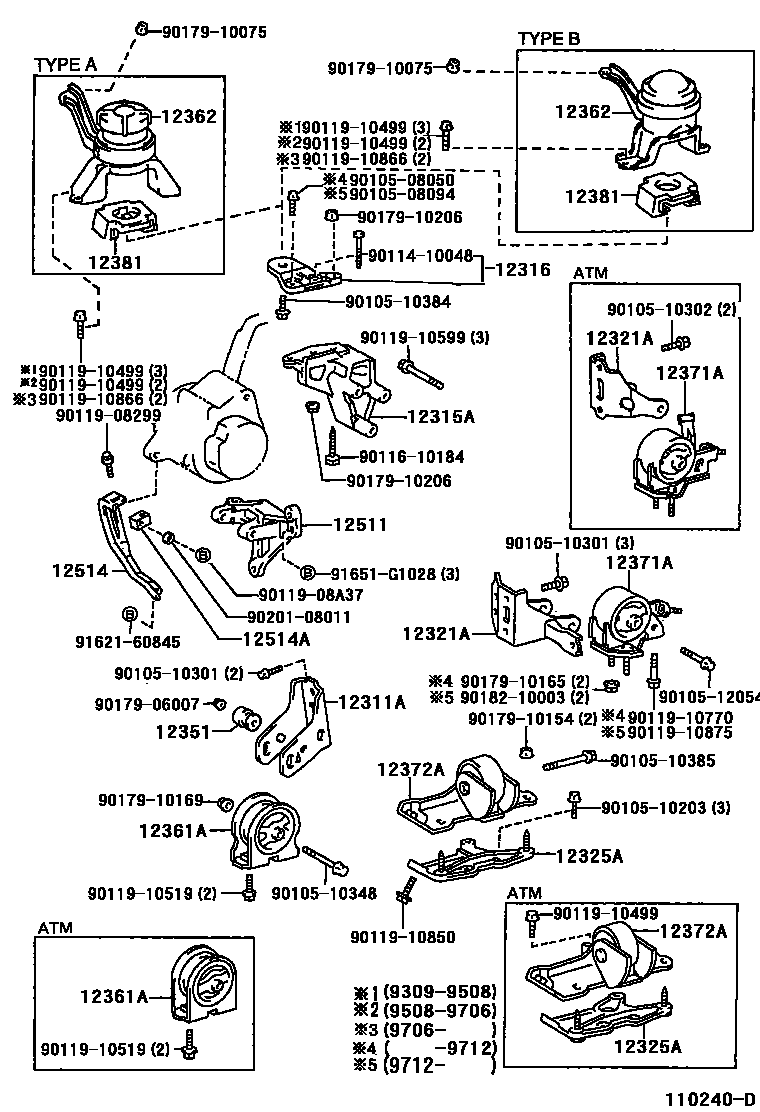

Toyota CELICA — MOUNTING
12311ABRACKET, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE)
12315ABRACKET, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE)
12316BRACKET, ENGINE MOUNTING, NO.2 RH
12321ABRACKET, ENGINE MOUNTING, REAR(FOR TRANSVERSE ENGINE)
12325ABRACKET, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)
12351DAMPER, ENGINE MOUNTING
12361AINSULATOR, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE)
12362INSULATOR, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE)
TYPE A
TYPE B
TYPE A
TYPE B
12371AINSULATOR, ENGINE MOUNTING, REAR
12372AINSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)
12381STABILIZER, ENGINE MOUNTING
TYPE A
TYPE B
12511BRACKET, ALTERNATOR, NO.1
12514BAR, ALTERNATOR BELT ADJUSTING
12514ASLIDER, FAN BELT ADJUSTING
9010508050
main90105-08050
9010508094
main90105-08094
9010510203
main90105-10203
9010510301
main90105-10301
9010510302
main90105-10302
9010510348
main90105-10348
9010510384
main90105-10384
9010510385
main90105-10385
9010512054
main90105-12054
9011410048
main90114-10048
9011610184
main90116-10184
9011908299
main90119-08299
9011908A37
main90119-08A37
9011910499
main90119-10499
9011910519
main90119-10519
9011910599
main90119-10599
9011910770
main90119-10770
9011910850
main90119-10850
9011910866
main90119-10866
9011910875
main90119-10875
9017906007
main90179-06007
9017910075
main90179-10075
9017910154
main90179-10154
9017910165
main90179-10165
9017910169
main90179-10169
9017910206
main90179-10206
9018210003
main90182-10003
9020108011
main90201-08011
9162160845
main91621-60845
91651G1028
main91651-G1028
44 parts on this diagram · 2 diagrams in section
MOUNTING for Toyota CELICA
This section contains 50 genuine Toyota parts for the MOUNTING system of the Toyota CELICA. Key components include: BRACKET, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE), BRACKET, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE), BRACKET, ENGINE MOUNTING, NO.2 RH, BRACKET, ENGINE MOUNTING, REAR(FOR TRANSVERSE ENGINE), BRACKET, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE).
