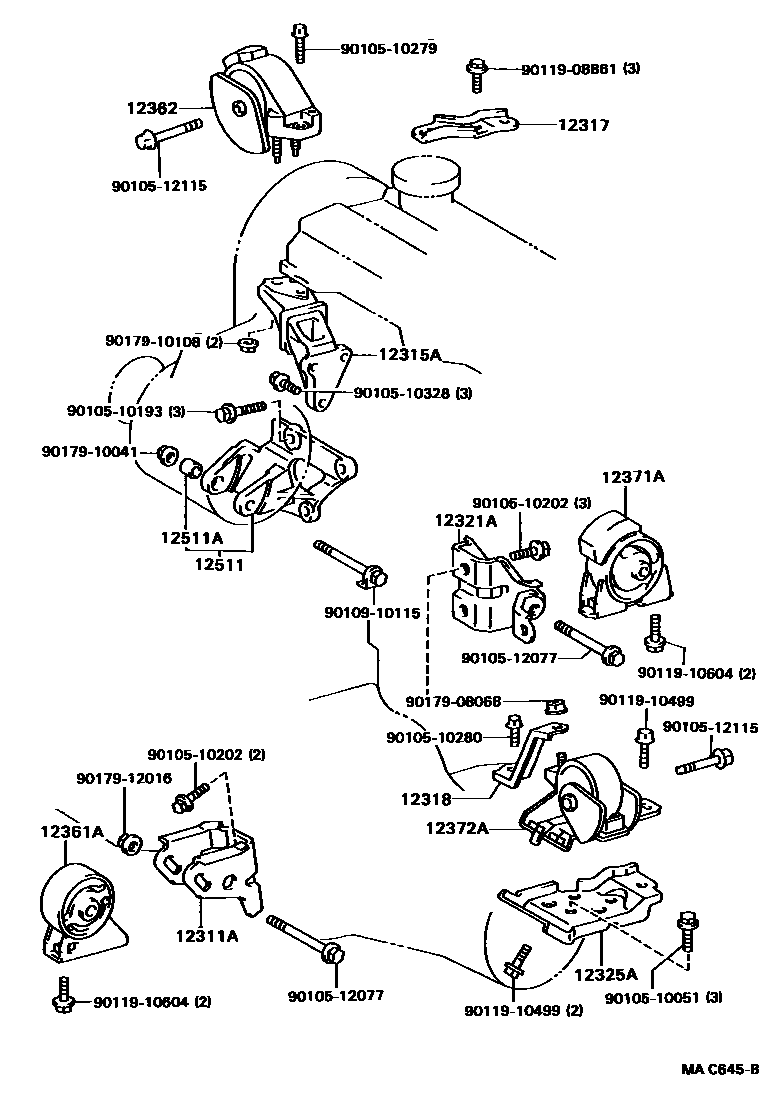

Toyota CELICA — MOUNTING
12311ABRACKET, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE)
12315ABRACKET, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE)
12317STAY, ENGINE MOUNTING, RH
12318STAY, ENGINE MOUNTING, LH
12321ABRACKET, ENGINE MOUNTING, REAR(FOR TRANSVERSE ENGINE)
12325ABRACKET, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)
12361AINSULATOR, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE)
12362INSULATOR, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE)
12371AINSULATOR, ENGINE MOUNTING, REAR
12372AINSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)
12511BRACKET, ALTERNATOR, NO.1
12511ABUSH, ALTERNATOR BRACKET
9010510051
main90105-10051
9010510193
main90105-10193
9010510202
main90105-10202
9010510279
main90105-10279
9010510280
main90105-10280
9010510328
main90105-10328
9010512077
main90105-12077
9010512115
main90105-12115
9010910115
main90109-10115
9011908861
main90119-08861
9011910499
main90119-10499
9011910604
main90119-10604
9017908068
main90179-08068
9017910041
main90179-10041
9017910108
main90179-10108
9017912016
main90179-12016
28 parts on this diagram · 4 diagrams in section
MOUNTING for Toyota CELICA
This section contains 58 genuine Toyota parts for the MOUNTING system of the Toyota CELICA. Key components include: BRACKET, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE), BRACKET, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE), STAY, ENGINE MOUNTING, RH, STAY, ENGINE MOUNTING, LH, BRACKET, ENGINE MOUNTING, REAR(FOR TRANSVERSE ENGINE).
