Toyota CELICA — MOUNTING

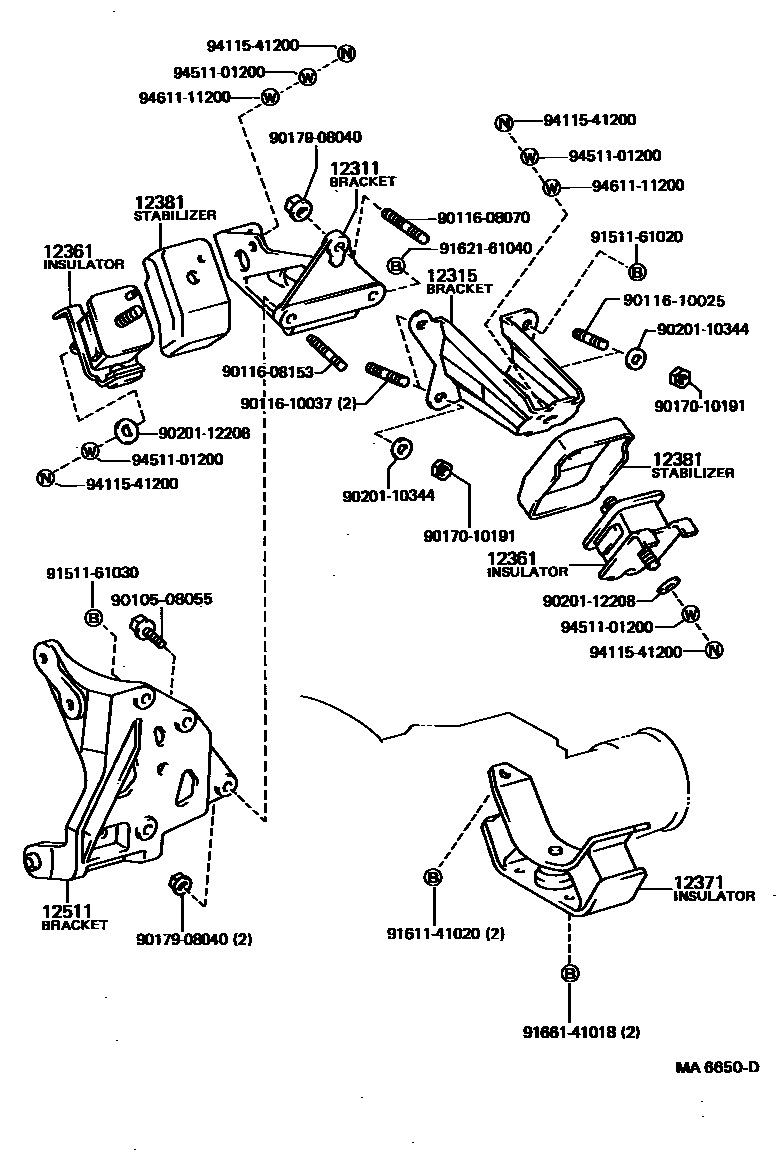

Parts diagram

12311BRACKET, ENGINE MOUNTING, FRONT NO.1 RH

main12301-35070i198208-198502

main12301-35080i198108-198208

main12301-35150i198408-198507

main12301-35170i198502-198507

main12311-15090i198308-198507

main12311-25051i198108-198308

main12311-26052i198108-198507

main12311-34020i198108-198308

main12311-41051i198112-198512

main12311-63010i198308-198408

12315BRACKET, ENGINE MOUNTING, FRONT NO.1 LH

main12302-35020i198108-198507

main12302-35090i198502-198507

main12312-25041i198108-198507

main12315-15060i198308-198507

main12315-34031i198108-198308

main12315-41070i198112-198208

main12315-41071i198208-198512

main12315-63010i198308-198408

12361INSULATOR, ENGINE MOUNTING, FRONT

main12361-16010i198308-198507

main12361-18010i198108-198507

MARUYASU,TOHKAIGOMU

main12361-18020i198108-198507

TOYO GOMU

main12361-18030i198108-198507

TOYOTA GOSEI

main12361-36012i198108-198308

RH

main12361-43020i198112-198512

main12361-63010i198502-198507

main12361-63010i198308-198408

TOYO

main12361-63020i198308-198408

MARUYASU

main12362-36012i198108-198308

LH

12371INSULATOR, ENGINE MOUNTING, REAR NO.1

main12371-16010i198308-198507

main12371-33010i198108-198507

main12371-34020i198108-198308

main12371-34030i198108-198507

main12371-43020i198112-198512

12381STABILIZER, ENGINE MOUNTING

main12381-15040i198308-198503

main12381-16010i198503-198507

main12381-18010i198108-198507

MARUYASU,TOHKAIGOMU

main12381-18020i198108-198507

TOYO GOMU

main12381-18050i198108-198507

TOYOTA GOSEI

main12381-63010i198308-198408

TOYO

main12381-63020i198308-198408

MARUYASU

12511BRACKET, ALTERNATOR, NO.1

main12511-16011i198308-198507

main12511-25010i198108-198507

main12511-33011i198108-198308

main12511-35010i198108-198408

main12511-35030i198408-198507

main12511-41030i198112-198308

main12511-43010i198308-198512

main12511-63010i198308-198408

9010508055

main90105-08055

9011608070

main90116-08070

9011608153

main90116-08153

9011610025

main90116-10025

9011610037

main90116-10037

9017010191

main90170-10191

9017908040

main90179-08040

9020110344

main90201-10344

9020112208

main90201-12208

9151161020

main91511-61020

9151161030

main91511-61030

9161141020

main91611-41020

9162161040

main91621-61040

9166141018

main91661-41018

9411541200

main94115-41200

9451101200

main94511-01200

9461111200

main94611-11200

23 parts on this diagram · 9 diagrams in section

MOUNTING for Toyota CELICA

This section contains 53 genuine Toyota parts for the MOUNTING system of the Toyota CELICA. Key components include: BRACKET, ENGINE MOUNTING, FRONT NO.1 RH, BRACKET, ENGINE MOUNTING, FRONT NO.2, BRACKET, ENGINE MOUNTING, FRONT NO.1 LH, BRACKET, ENGINE MOUNTING ABSORBER, INSULATOR, ENGINE MOUNTING, FRONT.
