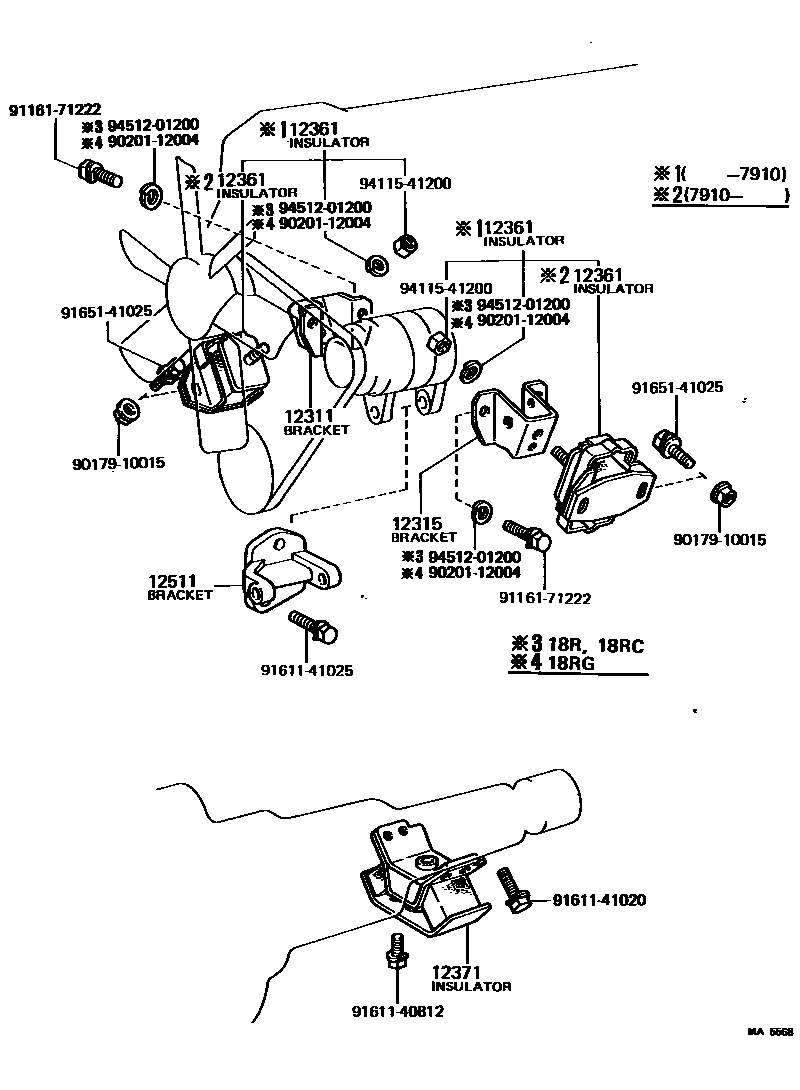

Toyota CELICA — MOUNTING

0001 1 0002 1 0003 1

12311BRACKET, ENGINE MOUNTING, FRONT NO.1 RH

main12311-25040i2T,2TG..TA40197708-197809

main12311-25050i2T,2TG..TA40197809-198001

main12311-25051i2T,2TG..TA40198001-198107

main12311-26050i2TB..TA40197708-197809

main12311-26051i2TB..TA40197809-198001

main12311-26052i2TB..TA40198001-198107

main12311-33011i18R#..RA40197708-198107

12315BRACKET, ENGINE MOUNTING, FRONT NO.1 LH

main12312-25020i2T#..TA40197708-197809

main12312-25040i2T#..TA40197809-198001

main12312-25041i2T#..TA40198001-198107

main12315-33011i18R#..RA40197708-198107

12361INSULATOR, ENGINE MOUNTING, FRONT

main12361-25013×2i2TG..TA40197708-197903

main12361-25014×2i2TG..TA40197903-198107

main12361-26040×2i2T,2TB..TA40197809-197904

main12361-26041×2i2T,2TB..TA40197904-198107

main12361-28020×2i2T,2TB..TA40197708-197804

main12361-28040×2i2T,2TB..TA40197804-197809

main12361-36012i18R#..RA40197910-198107

RH

main12361-39096i18R#..RA40197708-197910

RH

sub94115-41200

sub94512-01200

main12362-36012i18R#..RA40197910-198107

LH

main12362-39036i18R#..RA40197708-197910

LH

sub94115-41200

sub94512-01200

12371INSULATOR, ENGINE MOUNTING, REAR NO.1

main12371-33010i2T#..TA40..MTM197708-198107

main12371-34020i18R#..RA40..MTM197901-198107

main12371-34030i18R,18RC..RA40..3FC197901-198107

12511BRACKET, ALTERNATOR, NO.1

main12511-25010i2T#..TA40197708-198107

main12511-33011i18R#..RA40197708-198107

9017910015

main90179-10015

9020112004

main90201-12004

9116171222

main91161-71222

9161140812

main91611-40812

9161141020

main91611-41020

9161141025

main91611-41025

9165141025

main91651-41025

9411541200

main94115-41200

9451201200

main94512-01200

14 parts on this diagram · 3 diagrams in section
