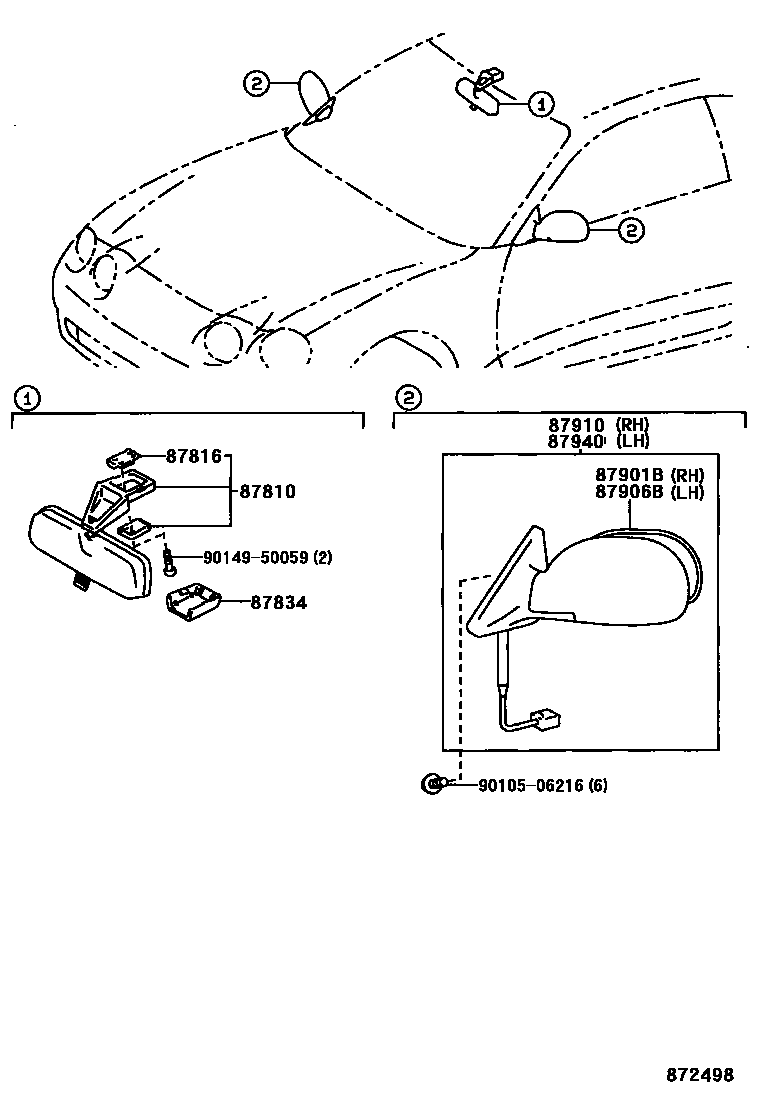

Toyota CELICA — MIRROR
87810MIRROR ASSY, INNER REAR VIEW
LIGHT GRAY,TRIM2#,(L)
LT.GRAY,TRIM2#,(L)
87816SPRING, INNER REAR VIEW MIRROR
(L)
(J)
87834COVER, INNER REAR VIEW MIRROR STAY HOLDER
LT.GRAY,TRIM2#
GRAY,TRIM2#
87901BMIRROR SUB-ASSY, OUTER REAR VIEW, RH
87906BMIRROR SUB-ASSY, OUTER REAR VIEW, LH
87910MIRROR ASSY, OUTER REAR VIEW, RH
SUPER WHITE 2,040
SILVER ME,199
BLACK,202
SUPER RED 4,3L2
ORANGE MC,3K6
SUPER BRIGHT YELLOW,576
DEEP TEAL ME,752
TURQUOISE M.M.,746
TURQUOISE M.M.,756
PURPLISH BLUE M.M.,8K9
DK.BLUE M.M.,8L2
BLUE ME.,8M2
PURPLE ME. OP.,933
SUPER WHITE 2,040
SILVER ME,199
DK.BL.GRAY ME,183
BLACK,202
SUPER RED 4,3L2
ORANGE MC,3K6
SUPER BRIGHT YELLOW,576
LT.GREEN ME.,6R0
DEEP TEAL ME,752
TURQUOISE M.M,746
GRAISH TURQUOISE M.M,753
TURQUOISE M.M.,756
PURPLISH BLUE M.M.,8K9
SX-R(AUSTRALIA),BLUE M.M.,8L5
PURPLE ME. OP.,933
87940MIRROR ASSY, OUTER REAR VIEW, LH
SUPER WHITE 2,040
SILVER ME,199
DK.BL.GRAY ME,183
BLACK,202
SUPER RED 4,3L2
ORANGE MC,3K6
SUPER BRIGHT YELLOW,576
LT.GREEN ME.,6R0
DEEP TEAL ME,752
GRAISH TURQUOISE M.M,753
TURQUOISE M.M,746
TURQUOISE M.M.,756
PURPLISH BLUE M.M.,8K9
DK.BLUE M.M.,8L2
BLUE ME.,8M2
SX-R(AUSTRALIA),BLUE M.M.,8L5
PURPLE ME. OP.,933
9010506216
main90105-06216
9014950059
main90149-50059
9 parts on this diagram · 1 diagram in section
