EPC Data

Toyota CELICA — MIRROR

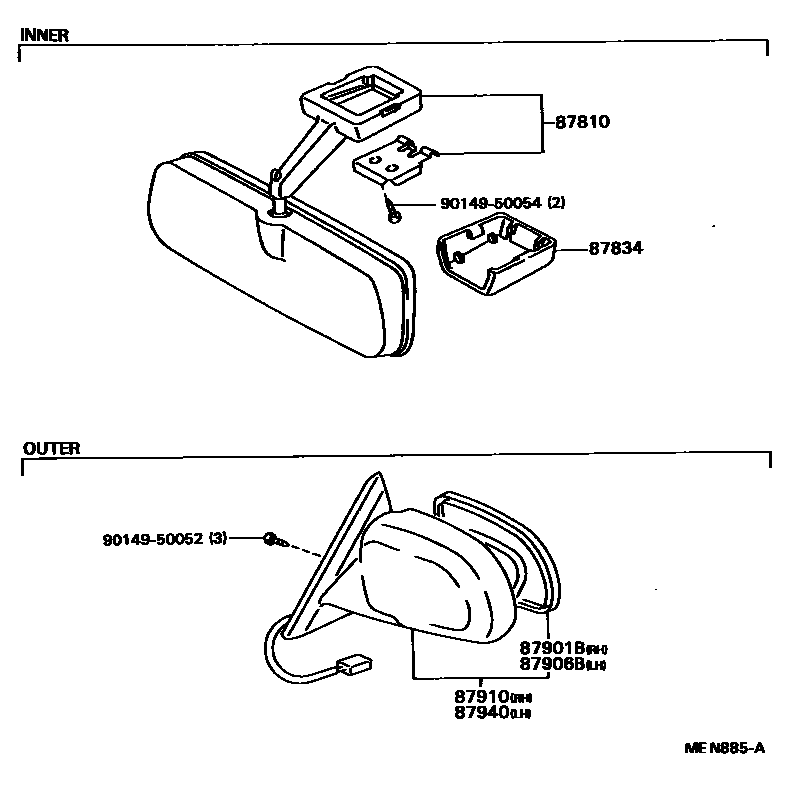

Parts diagram
87810MIRROR ASSY, INNER REAR VIEW
main87810-20240-03i198910-199311
SHADOW GRAY,TRIM1#
sub87810-20240
sub87810-20250
main87810-20240-04i198910-199311
DARK BLUE,TRIM8#
sub87810-20240
sub87810-20250
87834COVER, INNER REAR VIEW MIRROR STAY HOLDER
main87834-20110-03i199008-199108
SHADOW GRAY,SHADOW GRAY,TRIM1#
sub87834-20110
main87834-20110-03i198910-199208
SHADOW GRAY,TRIM1#
sub87834-20110
main87834-20110-04i198910-199311
DARK BLUE,TRIM8#
sub87834-20110
main87834-20110-S3i199208-199311
LI.GRAY,TRIM1#
sub87834-20110
87901BMIRROR SUB-ASSY, OUTER REAR VIEW, RH
main87931-2B370i198910-199007
main87931-2B371i199007-199311
main87931-2B400i198911-199311
main87931-2B411i199007-199110
W(ELECTRONIC REMOTE CONTROL MIRROR)
sub87931-2B412
main87931-2B411i199007-199110
sub87931-2B412
main87931-2B412i199110-199311
W(ELECTRONIC REMOTE CONTROL MIRROR)
87906BMIRROR SUB-ASSY, OUTER REAR VIEW, LH
main87961-2B400i198910-199311
main87961-2B411i199007-199110
W(ELECTRONIC REMOTE CONTROL MIRROR)
sub87961-2B412
main87961-2B411i199007-199110
sub87961-2B412
main87961-2B412i199110-199311
W(ELECTRONIC REMOTE CONTROL MIRROR)
87910MIRROR ASSY, OUTER REAR VIEW, RH
main87910-2B370-01i198910-199007
BLACK,202
sub87910-2B371
main87910-2B370-02i198910-199007
SUPER RED,3E5
sub87910-2B371
main87910-2B370-03i198910-199007
BLUISH GRAY METALLIC,182
sub87910-2B371
main87910-2B370-08i198910-199007
SUPER WHITE,040
sub87910-2B371
main87910-2B370-12i198910-199007
RED MICA,3H4
sub87910-2B371
main87910-2B370-14i198910-199007
BLUE MICA METALLIC,8G7
sub87910-2B371
main87910-2B371-01i199007-199311
BLACK,202
sub87910-2B371
main87910-2B371-02i199007-199311
SUPER RED,3E5
sub87910-2B371
main87910-2B371-03i199007-199311
BLUISH GRAY M,182
sub87910-2B371
main87910-2B371-08i199007-199311
SUPER WHITE,040
sub87910-2B371
main87910-2B371-12i199007-199108
RED MICA,3H4
sub87910-2B371
main87910-2B371-14i199007-199108
BLUE MICA M,8G7
sub87910-2B371
main87910-2B371-23i199008-199108
BLUISH SILVER M,181
sub87910-2B371
main87910-2B371-38i199108-199311
WINE RED MICA,3J8
sub87910-2B371
main87910-2B371-H0i199108-199311
MEDIUM TURQUOISE M.,749
sub87910-2B371
main87910-2B371-J0i199108-199311
DARK BLUE M.M,8J1
sub87910-2B371
main87910-2B380i198911-199007
sub87910-2B381
main87910-2B381i199007-199311
main87910-2B390i198911-199007
sub87910-2B391
main87910-2B391i199007-199311
main87910-2B400i198911-199007
W(ELECTRONIC REMOTE CONTROL MIRROR)
sub87910-2B401
main87910-2B401i199007-199110
W(ELECTRONIC REMOTE CONTROL MIRROR)
sub87910-2B402
main87910-2B402i199110-199311
W(ELECTRONIC REMOTE CONTROL MIRROR)
main87910-2B410i198911-199007
W(ELECTRONIC REMOTE CONTROL MIRROR)
sub87910-2B411
main87910-2B411i199007-199110
W(ELECTRONIC REMOTE CONTROL MIRROR)
sub87910-2B412
main87910-2B411i199007-199110
sub87910-2B412
main87910-2B412i199110-199311
W(ELECTRONIC REMOTE CONTROL MIRROR)
87940MIRROR ASSY, OUTER REAR VIEW, LH
main87940-2B380i198911-199007
sub87940-2B381
main87940-2B381i199007-199311
main87940-2B390i198911-199007
sub87940-2B391
main87940-2B391i199007-199311
main87940-2B400i198911-199007
W(ELECTRONIC REMOTE CONTROL MIRROR)
sub87940-2B401
main87940-2B401i199007-199110
W(ELECTRONIC REMOTE CONTROL MIRROR)
sub87940-2B402
main87940-2B402i199110-199311
W(ELECTRONIC REMOTE CONTROL MIRROR)
main87940-2B410i198911-199007
W(ELECTRONIC REMOTE CONTROL MIRROR)
sub87940-2B411
main87940-2B411i199007-199110
W(ELECTRONIC REMOTE CONTROL MIRROR)
sub87940-2B412
main87940-2B411i199007-199110
sub87940-2B412
main87940-2B412i199110-199311
W(ELECTRONIC REMOTE CONTROL MIRROR)
main87940-2B460-01i198910-199007
BLACK,202
sub87940-2B461
main87940-2B460-02i198910-199007
SUPER RED,3E5
sub87940-2B461
main87940-2B460-03i198910-199007
BLUISH GRAY METALLIC,182
sub87940-2B461
main87940-2B460-08i198910-199007
SUPER WHITE,040
sub87940-2B461
main87940-2B460-12i198910-199007
RED MICA,3H4
sub87940-2B461
main87940-2B460-14i198910-199007
BLUE MICA METALLIC,8G7
sub87940-2B461
main87940-2B461-01i199007-199110
BLACK,202
sub87940-2B462
main87940-2B461-02i199007-199110
SUPER RED,3E5
sub87940-2B462
main87940-2B461-03i199007-199110
BLUISH GRAY M,182
sub87940-2B462
main87940-2B461-08i199007-199110
SUPER WHITE,040
sub87940-2B462
main87940-2B461-12i199007-199108
RED MICA,3H4
sub87940-2B462
main87940-2B461-14i199007-199108
BLUE MICA M,8G7
sub87940-2B462
main87940-2B461-23i199008-199108
BLUISH SILVER M,181
sub87940-2B462
main87940-2B461-38i199108-199110
WINE RED MICA,3J8
sub87940-2B462
main87940-2B461-H0i199108-199110
MEDIUM TURQUOISE M.,749
sub87940-2B462
main87940-2B461-J0i199108-199110
DARK BLUE MICA,8J1
sub87940-2B462
main87940-2B462-38i199110-199311
WINE RED MICA,3J8
sub87940-2B462
main87940-2B462-A0i199110-199311
SUPER WHITE,040
sub87940-2B462
main87940-2B462-B0i199110-199311
BLUISH GRAY M.,182
sub87940-2B462
main87940-2B462-C0i199110-199311
BLACK,202
sub87940-2B462
main87940-2B462-D0i199110-199311
SUPER RED,3E5
sub87940-2B462
main87940-2B462-H0i199110-199311
MEDIUM TURQUOISE M.,749
sub87940-2B462
main87940-2B462-J0i199110-199311
DARK BLUE M.M,8J1
sub87940-2B462
9014950052
main90149-50052
9014950054
main90149-50054

8 parts on this diagram · 1 diagram in section
