Toyota CELICA — MIRROR

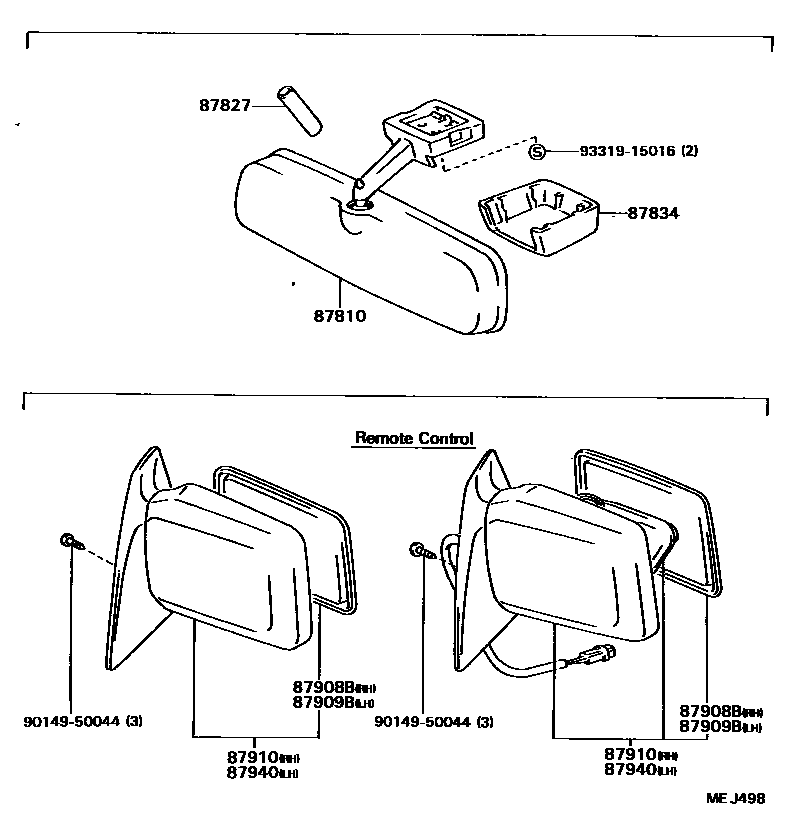

Parts diagram
87810MIRROR ASSY, INNER REAR VIEW
main87810-20200-04i198708-198908
BLUE,TRIM8#
sub87810-20200
sub87810-12221
main87810-20200-05i198708-198908
DARK BEIGE,TRIM4#
sub87810-20200
sub87810-12221
main87810-20200-11i198708-198908
BLACK,TRIM2#
sub87810-20200
sub87810-12221
87827ABSORBER, INNER REAR VIEW MIRROR
main87828-22020i198802-198908
L=35
main87828-87002i198708-198908
L=32
87834COVER, INNER REAR VIEW MIRROR STAY HOLDER
main87834-20080-34i198708-198908
DEEP BLUE,TRIM8#
sub87834-20080
main87834-20080-53i198708-198908
SHADOW GRAY,TRIM2#
sub87834-20080
main87834-20080-55i198708-198908
DARK BEIGE,TRIM4#
sub87834-20080
main87834-20100-05i198709-198908
BEIGE,TRIM4#
87908BMIRROR SUB-ASSY, RH
main87908-20040i198708-198908
main87931-20400i198708-198908
ELECTRIC *RCM
main87931-20400i198708-198908
main87931-20540i198808-198908
ELECTRIC *RCM
main87931-20620i198708-198908
87909BMIRROR SUB-ASSY, LH
main87909-20690i198708-198908
main87961-1A120i198808-198908
main87961-20660i198708-198908
main87961-20680i198708-198908
ELECTRIC *RCM
87910MIRROR ASSY, OUTER REAR VIEW, RH
main87910-20391i198708-198908
main87910-20401i198708-198805
ELECTRIC *RCM
main87910-20402i198805-198908
ELECTRIC *RCM
main87910-20620i198708-198805
main87910-20621i198805-198908
BLACK
main87910-20631i198708-198908
main87910-20641i198708-198908
ELECRTIC *RCM
main87910-20641i198708-198908
ELECTRIC *RCM
main87910-2B350-08i198901-198908
SUPER WHITE,040,COLORED
87940MIRROR ASSY, OUTER REAR VIEW, LH
main87940-20660i198708-198805
main87940-20661i198805-198908
BLACK
main87940-20671i198708-198908
main87940-20681i198708-198805
ELECTRIC *RCM
main87940-20682i198805-198908
ELECTRIC *RCM
main87940-20691i198708-198908
main87940-20701i198708-198908
ELECTRIC *RCM
main87940-20701i198708-198908
ELECRTIC *RCM
main87940-2B350-08i198901-198908
SUPER WHITE,040,COLORED
9014950044
main90149-50044
9331915016
main93319-15016

9 parts on this diagram · 1 diagram in section
