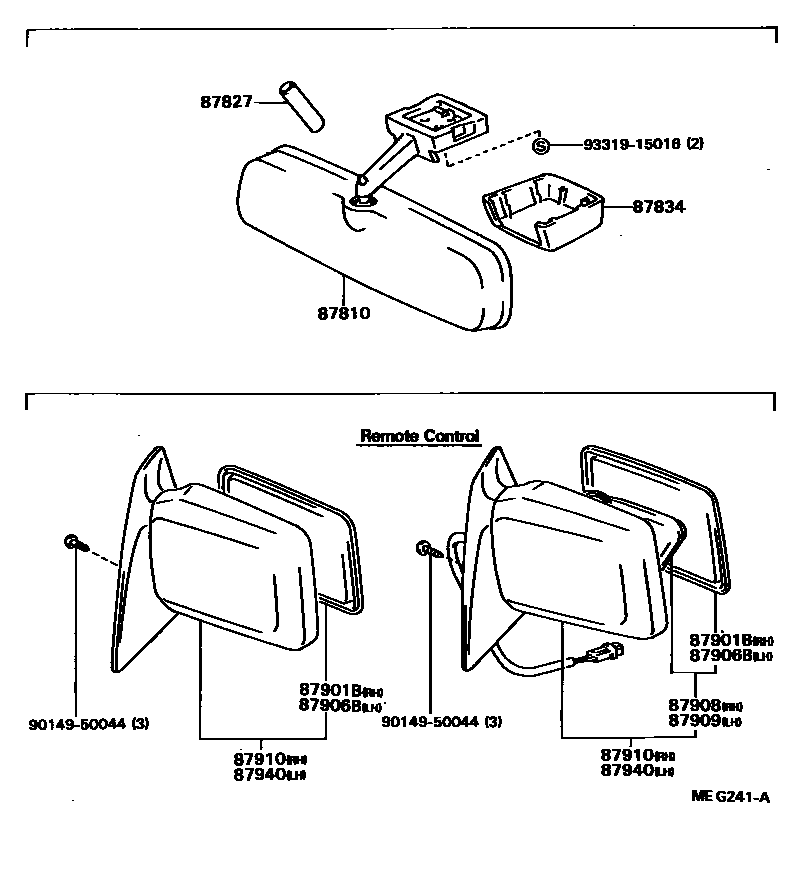

Toyota CELICA — MIRROR

87810MIRROR ASSY, INNER REAR VIEW

main87810-20200-03i198508-198708

GRAY,GRAY

main87810-20200-04i198508-198708

BLUE,BLUE

main87810-20200-06i198508-198708

BROWN,BROWN

87827ABSORBER, INNER REAR VIEW MIRROR

main87828-22020i198508-198708

L=34.5

main87828-87002i198704-198708

L=32

87834COVER, INNER REAR VIEW MIRROR STAY HOLDER

main87834-20080-06i198508-198708

BROWN,BROWN

main87834-20080-34i198508-198708

BLUE,DEEP BLUE

main87834-20080-53i198508-198708

GRAY,SHADOW GRAY

87901BMIRROR SUB-ASSY, OUTER REAR VIEW, RH

main87908-20040i198508-198708

main87908-20770i198608-198708

main87931-20400i198508-198708

*RCM

main87931-20620i198508-198708

*RCM

87906BMIRROR SUB-ASSY, OUTER REAR VIEW, LH

main87909-20690i198508-198708

main87909-20830i198608-198708

main87961-20660i198508-198708

*RCM

main87961-20680i198508-198708

*RCM

87908ACTUATOR ASSY, OUTER MIRROR, RH

main87908-20400i198508-198708

*RCM

main87908-20620i198508-198708

*RCM

87909ACTUATOR ASSY, OUTER MIRROR, LH

main87909-20660i198508-198708

*RCM

main87909-20680i198508-198708

*RCM

87910MIRROR ASSY, OUTER REAR VIEW, RH

main87910-20390i198508-198606

main87910-20391i198606-198708

main87910-20400i198508-198606

*RCM

main87910-20401i198606-198708

*RCM

main87910-20620i198508-198708

*RCM

main87910-20630i198508-198606

main87910-20631i198606-198708

main87910-20640i198508-198606

*RCM

main87910-20641i198606-198708

*RCM

main87910-20770i198608-198708

87940MIRROR ASSY, OUTER REAR VIEW, LH

main87940-20660i198508-198708

*RCM

main87940-20670i198508-198606

main87940-20671i198606-198708

main87940-20680i198508-198606

*RCM

main87940-20681i198606-198708

*RCM

main87940-20690i198508-198606

main87940-20691i198606-198708

main87940-20700i198508-198606

*RCM

main87940-20701i198606-198708

*RCM

main87940-20830i198608-198708

9014950044

main90149-50044

9331915016

main93319-15016

11 parts on this diagram · 1 diagram in section

MIRROR for Toyota CELICA

This section contains 11 genuine Toyota parts for the MIRROR system of the Toyota CELICA. Key components include: MIRROR ASSY, INNER REAR VIEW, ABSORBER, INNER REAR VIEW MIRROR, COVER, INNER REAR VIEW MIRROR STAY HOLDER, MIRROR SUB-ASSY, OUTER REAR VIEW, RH, MIRROR SUB-ASSY, OUTER REAR VIEW, LH.
