Toyota CELICA — MIRROR
87810MIRROR ASSY, INNER REAR VIEW
BLACK,BLACK,TRIM2#
BLUE,BLUE,TRIM8#
LIGHT BROWN,BROWN,TRIM4#
BLACK,BLACK,TRIM2#
BLUE,BLUE,TRIM8#
LIGHT BROWN,BROWN,TRIM4#
BLACK,BLACK,TRIM2#
BLUE,BLUE,TRIM8#
LIGHT BROWN,BROWN,TRIM4#
BLACK,BLACK,TRIM2#
BLUE,BLUE,TRIM8#
LIGHT BROWN,BROWN,TRIM4#
NON GLARE,BLACK,BLACK,TRIM2#
NON GLARE,BLUE,BLUE,TRIM8#
NON GLARE,LIGHT BROWN,BROWN,TRIM4#
NON GLARE,BLACK,BLACK,TRIM2#
NON GLARE,BLUE,BLUE,TRIM8#
NON GLARE,LIGHT BROWN,BROWN,TRIM4#
NON GLARE,BLACK,BLACK,TRIM2#
NON GLARE,BLUE,BLUE,TRIM8#
NON GLARE,LIGHT BROWN,BROWN,TRIM4#
NON GLARE,BLACK,BLACK,TRIM2#
NON GLARE,BLUE,BLUE,TRIM8#
NON GLARE,LIGHT BROWN,BROWN,TRIM4#
87816SPRING, INNER REAR VIEW MIRROR
87834COVER, INNER REAR VIEW MIRROR STAY HOLDER
BLUE,IKI,BLUE,TRIM8#
GRAY,IKI,GRAY,TRIM2#
LIGHT BROWN,IKI,BEIGE,TRIM4#
NON GLARE,BLUE,MURAKAMI,BLUE,TRIM8#
NON GLARE,GRAY,MURAKAMI,GRAY,TRIM2#
NON GLARE,LIGHT BROWN,MURAKAMI,BEIGE,TRIM4#
NON GLARE,BLUE,MURAKAMI,BLUE,TRIM8#
NON GLARE,GRAY,MURAKAMI,GRAY,TRIM2#
NON GLARE,LIGHT BROWN,MURAKAMI,BEIGE,TRIM4#
BLUE,BLUE,TRIM8#
IVORY,IVORY,TRIM0#
GRAY,GRAY,TRIM2#
LIGHT BROWN,BEIGE,TRIM4#
GRAY,IKI,GRAY,TRIM2#
BLUE,IKI,BLUE,TRIM8#
LIGHT BROWN,IKI,BEIGE,TRIM4#
GRAY,IKI,GRAY,TRIM2#
BLUE,IKI,BLUE,TRIM8#
LIGHT BROWN,IKI,BEIGE,TRIM4#
87910MIRROR ASSY, OUTER REAR VIEW, RH
DOOR TYPE
DOOR TYPE
DOOR MANUAL TYPE
DOOR MANUAL TYPE
DOOR REMOTE CONTROL TYPE
DOOR REMOTE CONTROL TYPE
DOOR MANUAL TYPE
FENDER PLAIN TYPE
FENDER SPORTS TYPE
87911GASKET, OUTER REAR VIEW MIRROR, RH
FENDER PLAIN TYPE
FENDER SPORTS TYPE
IKI
MURAKAMI
87940MIRROR ASSY, OUTER REAR VIEW, LH
DOOR MANUAL TYPE
DOOR BOWL TYPE
DOOR BOWL TYPE
DOOR MANUAL TYPE
main87940-14271iTA40..5F..LT..EUG;TA40..LB..RHD..4F;RA40..RHD..GT..EUG;RA40..LB..LHD..3FC..EUG;RA40..CP..RHD..3FC..EUG;RA40..LB..LHD..5F..XT..GEN;TA40..CP..LHD..5F..ST..GEN198008-198107
DOOR MANUAL TYPE
DOOR REMOTE CONTROL TYPE
DOOR REMOTE CONTROL TYPE
DOOR MANUAL TYPE
FENDER PLAIN TYPE
FENDER SPORTS TYPE
87941GASKET, OUTER REAR VIEW MIRROR, LH
FENDER PLAIN TYPE
FENDER SPORTS TYPE
IKI
MURAKAMI
9331915016
main93319-15016
9411040600
main94110-40600

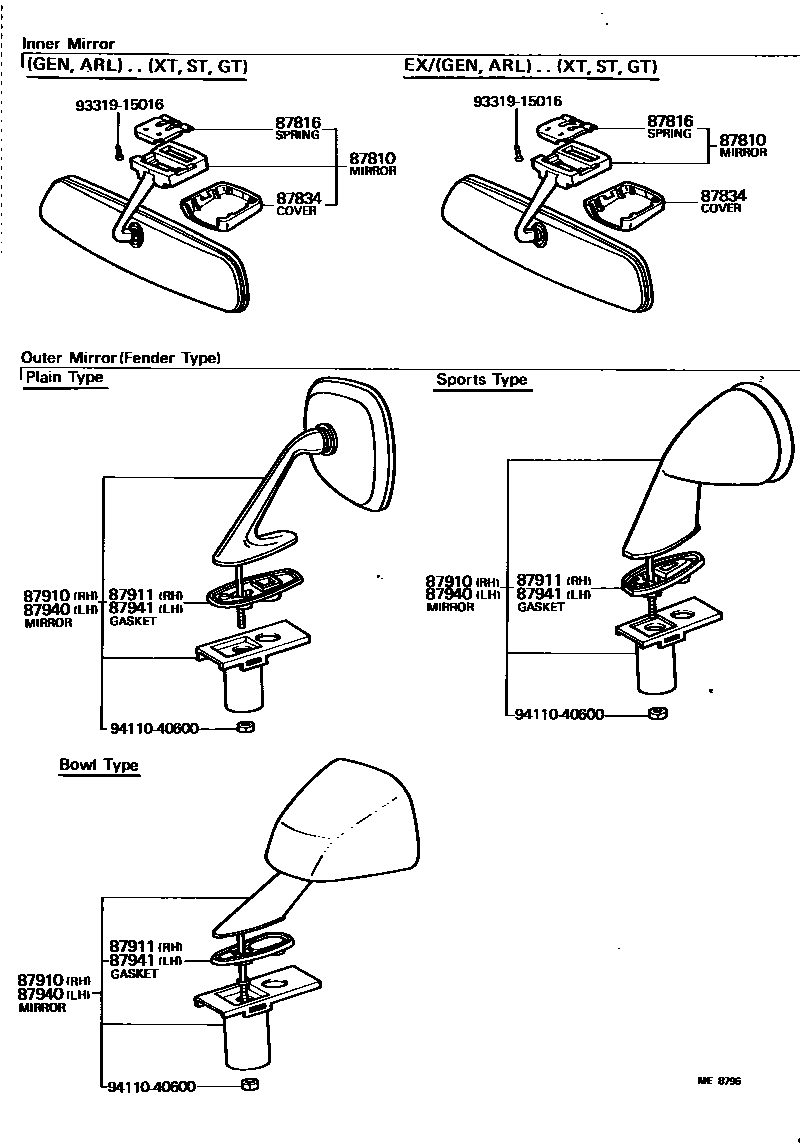

9 parts on this diagram · 2 diagrams in section
