Toyota CELICA — METER

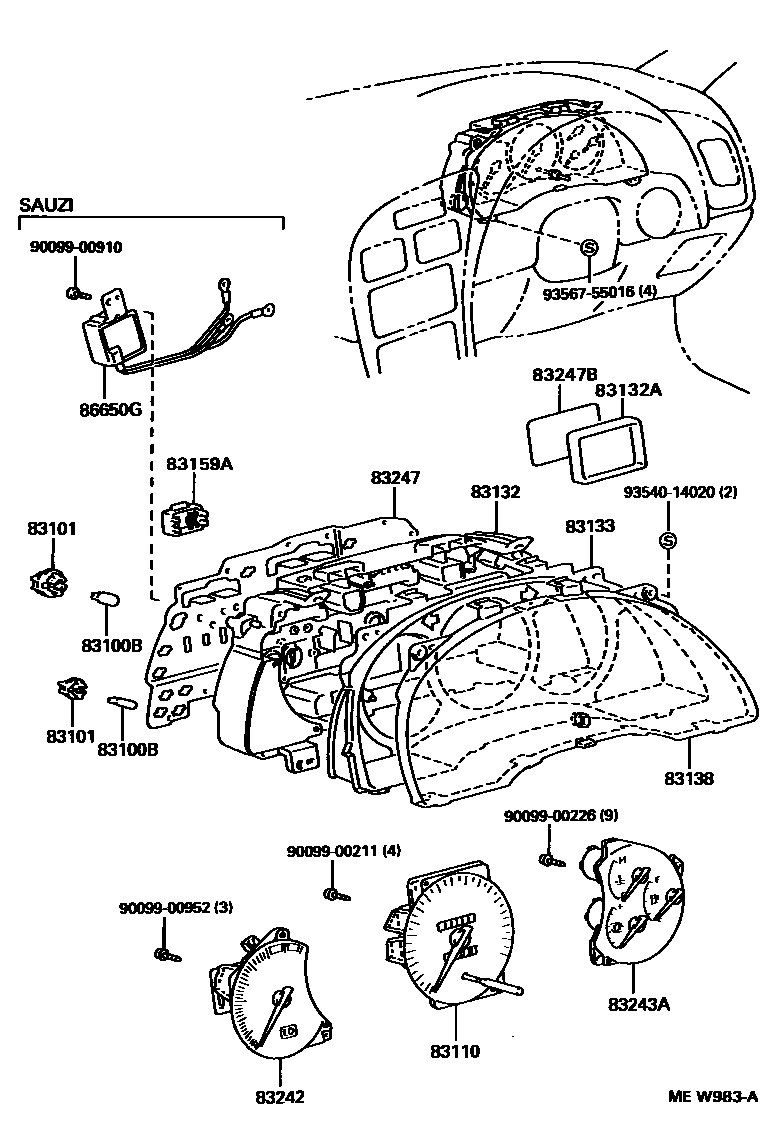

Parts diagram

83100BBULB, COMBINATION METER, NO.1

main83109-24020×3i199311

12V3.4W W(GREEN CAP)

main83109-30070×2i199508

14V 2.0W,W/O SOCKET

main83119-32010i199809-199812

14V 3.0W,W(WHITE METER)

main90099-53008i199809-199812

14V 2.0W,W(WHITE METER)

main90981-11018×9i199311

12V 1.2W W/O SOCKET

main99132-12034×3i199311-199508

12V 3.4W

83101SOCKET SUB-ASSY, COMBINATION METER BULB

main83101-14030×3i199311

TYPE A:REFER TO ILLUSTRATION

main83101-14040×14i199311-199508

TYPE B:REFER TO ILLUSTRATION

main83101-24010×2i199809-199812

W(WHITE METER) & TYPE C:REFER TO ILLUSTRATION

83110SPEEDOMETER ASSY

main83110-2D500i199311

main83110-2D510i199311

MPH & KM/H

main83110-2D520i199311

KM/H

main83110-2D530i199402

main83220-20250i199901-199907

SX-R(AUSTRALIA)

83132CASE, COMBINATION METER

main83132-2D030i199311

main83132-2D150i199402-199508

main83132-2D151i199508

main83132-2D190i199311-199508

main83132-2D191i199508

83132ACASE, METER

main83132-2D210i199402

83133PLATE, COMBINATION METER, NO.1

main83133-20690i199311

83138GLASS, SPEEDOMETER

main83138-2B370i199311

83159ASWITCH, METER, NO.2

main83159-22370i199402

83242TACHOMETER ASSY, ENGINE

main83242-20650i199311

main83242-20730i199311

main83242-20750i199402

main83881-20710i199901-199907

SX-R(AUSTRALIA)

83243AGAUGE SUB-ASSY, FUEL RECEIVER

main83243-20650i199311

main83243-20690i199402

main83243-20730i199311

main83882-20520i199901-199907

SX-R(AUSTRALIA)

83247PLATE, METER CIRCUIT

main83247-2D050i199311

main83247-2D070i199311-199508

main83247-2D071i199508

main83247-2D130i199402-199508

main83247-2D131i199508

main83861-20710i199901-199907

SX-R(AUSTRALIA)

83247BPLATE, METER CIRCUIT, NO.2

main83247-2D290i199402

86650GBUZZER ASSY

main86650-20040i199311

9009900211

main90099-00211

9009900226

main90099-00226

9009900910

main90099-00910

9009900952

main90099-00952

9354014020

main93540-14020

9356755016

main93567-55016

19 parts on this diagram · 3 diagrams in section
