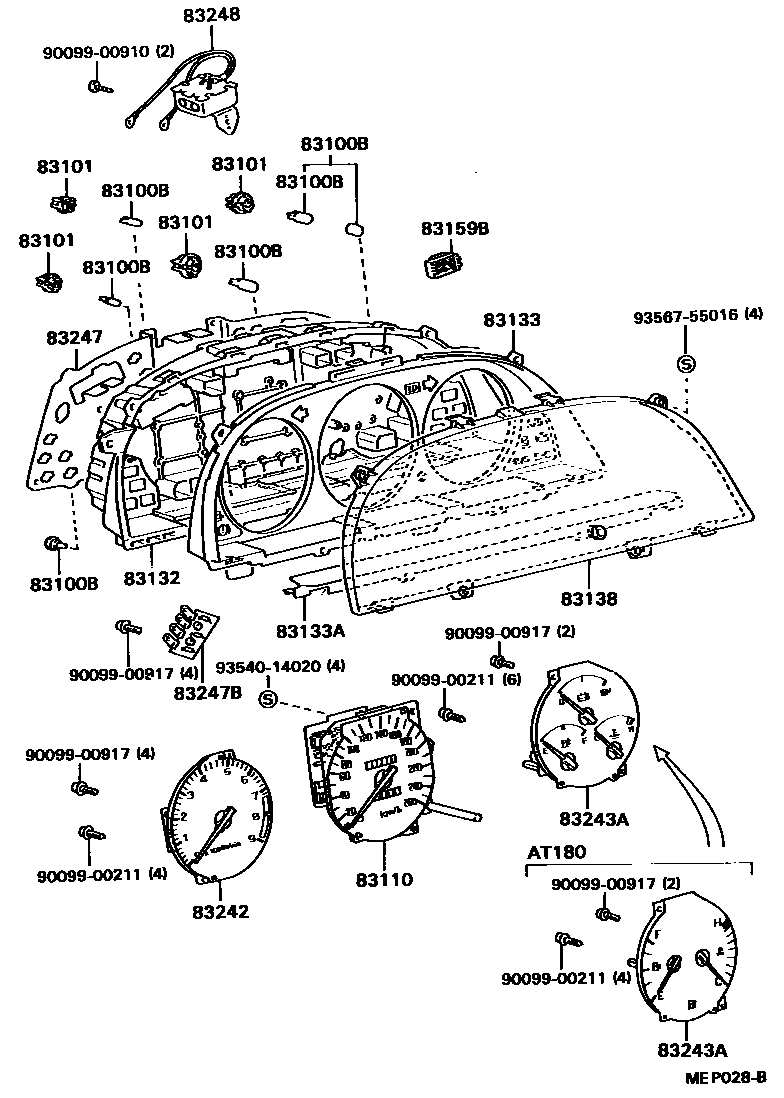

Toyota CELICA — METER
83100BBULB, COMBINATION METER, NO.1
12V 1.4W,W(SOCKET)
12V 1.4W,W(SOCKET),SOCKET:83101-14030
12V 1.4W,GREEN CAP,12V 1.4W,GREEN CAP,SOCKET:83101-14030
12V 1.4W,GREEN CAP,SOCKET:83101-14030
12V3.4W W(GREEN CAP),12V 3.4W,GREEN CAP,SOCKET:83101-14030
12V3.4W W(GREEN CAP),SOCKET:83101-14030
14V 2.0W,W/O SOCKET,14V 2.0W,LONG LIFE,SOCKET:83101-14040
14V 3.0W,14V 3.0W,SOCKET:83101-14030
12V 1.2W W/O SOCKET,12V 1.2W,SOCKET:83101-14040
12V 1.2W W/O SOCKET,SOCKET:83101-14040
12V 3.4W,SOCKET:83101-14030
12V 3.4W,12V 3.4W SOCKET:83101-14040
12V 3.4W,12V 3.4W,SOCKET:83101-14030
83101SOCKET SUB-ASSY, COMBINATION METER BULB
BULB:3.0W OR 3.4W
BULB 3.0W OR 3.4W
BULB:1.2W OR 1.4W
BULB:1.4W
83110SPEEDOMETER ASSY
W(MILE/H-MAIN & KM/H)
W(MILE/H-MAIN & KM/H)
sub83110-2D121
VENEZUELA SPEC
W(MILE/H-MAIN & KM/H)
83133PLATE, COMBINATION METER, NO.1
83133APLATE, COMBINATION METER, NO.2
83138GLASS, SPEEDOMETER
83159BRELAY ASSY, METER
83243AGAUGE SUB-ASSY, FUEL RECEIVER
83247BPLATE, METER CIRCUIT, NO.2
9009900211
main90099-00211
9009900910
main90099-00910
9009900917
main90099-00917
9354014020
main93540-14020
9356755016
main93567-55016
18 parts on this diagram · 5 diagrams in section
