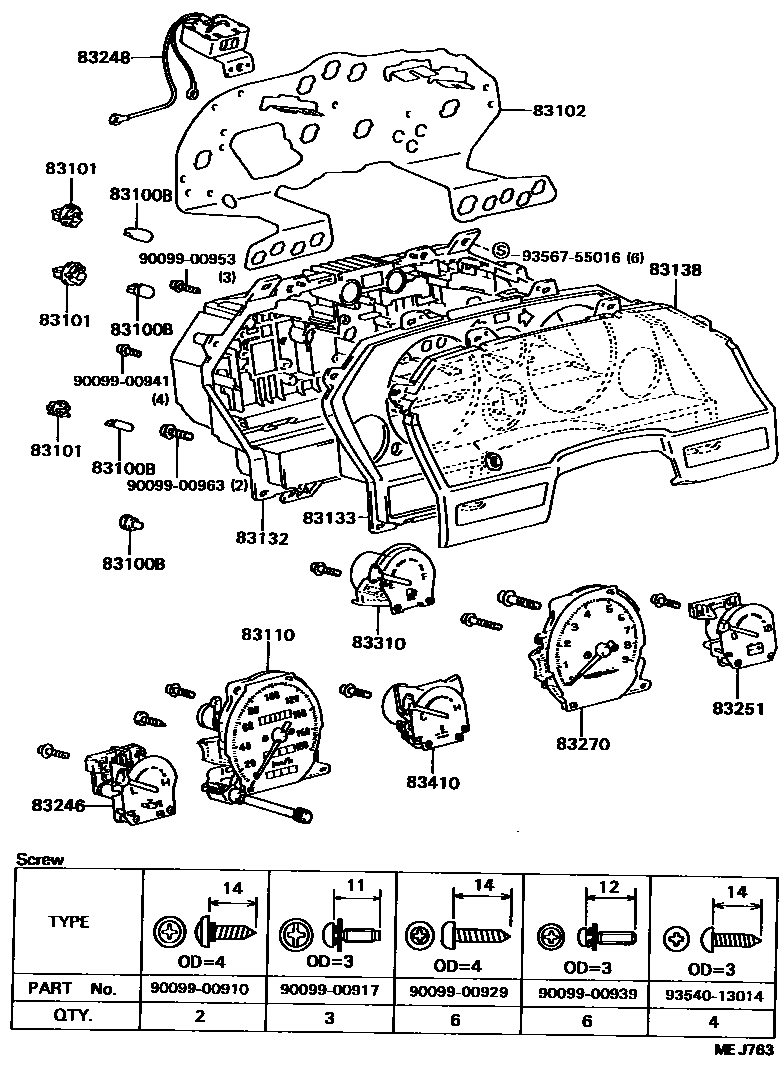

Toyota CELICA — METER

0001 1 0002 1 0003 1

83100BBULB, COMBINATION METER, NO.1

main83101-20080iST162..4FC..(GT,SX)198708-198908

12V 1.4W,W(SOCKET)

main83109-24020iAT160,ST162198708-198908

12V3.4W W(GREEN CAP)

main90981-11018iST162..ST;ST162..5F..SX198708-198908

12V 1.2W W/O SOCKET

main90981-11018iAT160..LHD198708-198710

12V 1.2W W/O SOCKET,12V 1.2W OR 14V 1.4W

main99132-12034iAT160,ST162..RHD198708-198908

12V 3.4W

83101SOCKET SUB-ASSY, COMBINATION METER BULB

main83101-14030iAT160,ST162198708-198908

BULB:12V 3.4W

main83101-14040iST162..4FC..ME198708-198908

BULB:12V 1.2W

83102PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.1

main83247-1D260iAT160..RHD198708-198908

main83247-1D280iST162..5F..SX198708-198908

main83247-1D300iST162..4FC..SX198708-198908

main83247-1D320iST162..ST198708-198908

main83247-1J580iST162..5F..ME198708-198908

main83247-1J600iST162..4FC..ME198708-198908

main83247-1J620iAT160..CBR198708-198908

main83247-1J640iAT160..LHD..TWC198708-198908

83110SPEEDOMETER ASSY

main83110-2B350iST162..ST198708-198908

main83110-2B411iAT160..RHD198708-198908

main83110-2B421iAT160..RHD198708-198908

MPH/KM

main83110-2B470iAT160..CBR198708-198908

main83110-2B481iAT160..LHD..TWC198708-198908

main83110-2B491iST162..ME198708-198908

main83110-2B500iAT160..CBR198708-198908

MPH/KM

main83110-2B511iAT160..LHD..TWC198708-198908

MPH/KM

main83110-2B520iST162..SX198708-198908

83132CASE, COMBINATION METER

main83132-1D040iST162..ST198708-198908

main83132-1D060iAT160..RHD198708-198908

main83132-1D120iST162..5F..SX198708-198908

main83132-1D140iST162..4FC..SX198708-198908

main83132-1D220iST162..4FC..ME198708-198908

main83132-1D240iST162..5F..ME198708-198908

main83132-1D280iAT160..CBR198708-198908

main83132-1D300iAT160..LHD..TWC198708-198908

83133PLATE, COMBINATION METER, NO.1

main83133-1B470iAT160,ST162..RHD198708-198908

main83133-1B490iAT160,ST162..LHD198708-198908

83138GLASS, SPEEDOMETER

main83138-1B130iAT160,ST162..RHD198708-198908

main83138-1B150iAT160,ST162..LHD198708-198908

83246GAUGE, OIL PRESSURE RECEIVER

main83246-14650iAT160,ST162198708-198908

83248CHIME, SPEED WARNING

main86640-20090iST162..ME198708-198908

83251METER, VOLTAGE

main83251-14630iAT160,ST162198708-198908

83270TACHOMETER ASSY, ENGINE

main83242-1B010iST162..ST198708-198908

main83242-1B030iAT160..RHD198708-198908

main83242-1B070iST162..5F..SX198708-198908

main83242-1B110iST162..4FC..SX198708-198908

main83242-1B190iAT160..CBR198708-198908

main83242-1B210iST162..5F..ME198708-198908

main83242-1B310iST162..4FC..ME198708-198908

main83242-1B330iAT160..LHD..TWC198708-198908

83310GAGE ASSY, FUEL RECEIVER

main83243-14710iAT160,ST162..RHD198708-198908

main83243-14730iAT160,ST162..LHD198708-198908

83410GAGE ASSY, WATER TEMPERATURE RECEIVER

main83244-1B130iAT160..CBR198708-198908

main83244-1B150iST162..ME198708-198908

main83244-1B290iAT160,ST162..RHD198708-198908

main83244-1B310iAT160..LHD..TWC198708-198908

9009900910

main90099-00910

9009900917

main90099-00917

9009900929

main90099-00929

9009900939

main90099-00939

9009900941

main90099-00941

9009900953

main90099-00953

9009900963

main90099-00963

9354013014

main93540-13014

9356755016

main93567-55016

22 parts on this diagram · 3 diagrams in section
