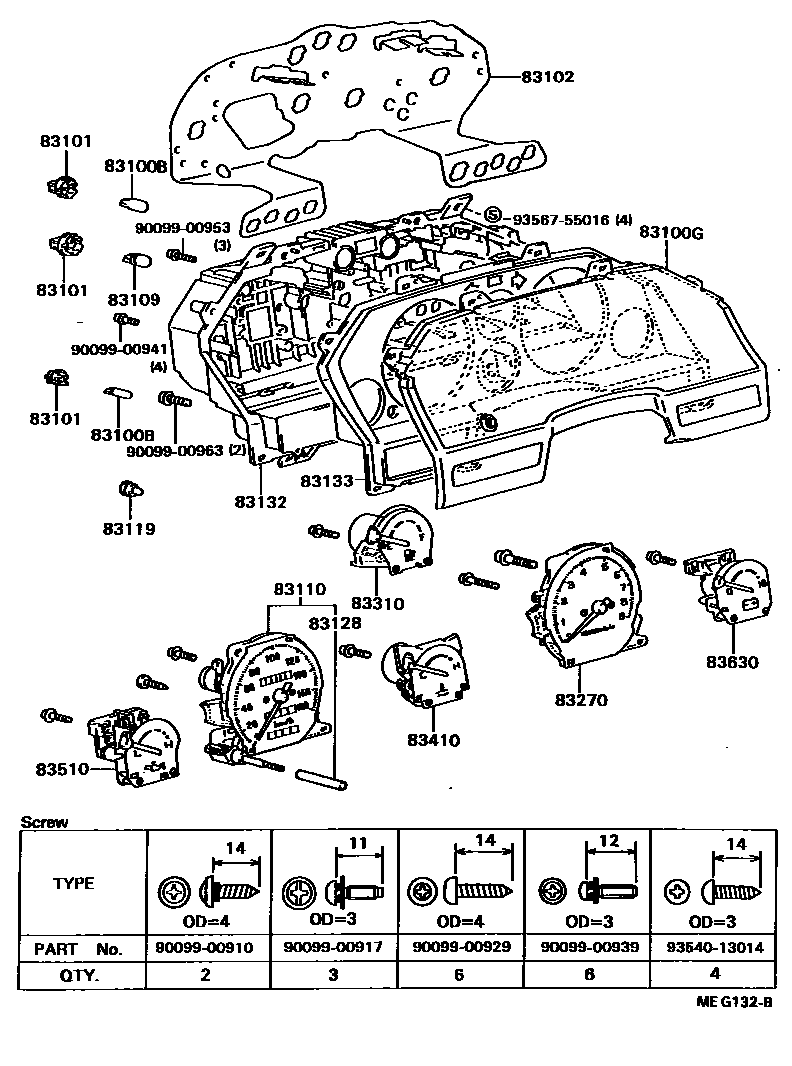

Toyota CELICA — METER

0001 1 0002 1

83100BBULB, COMBINATION METER, NO.1

main90981-11018×8iAT160,ST162,182198508-198708

12V 1.2W W/O SOCKET,12V 1.4W

main99132-12034×4iAT160,ST162,182198508-198708

12V 3.4W,12V 3.4W

83100GGLASS, COMBINATION METER

main83138-1B130iAT160,ST162,182..RHD198508-198708

main83138-1B150iAT160,ST162..LHD198508-198708

83101SOCKET SUB-ASSY, COMBINATION METER BULB

main83101-14030×8iAT160,ST162,182198508-198708

BULB;12V 3.4W

main83101-14040×8iAT160,ST162,182198508-198708

BULB;12V 1.4W

83102PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.1

main83247-1J070iAT160..RHD198508-198608

main83247-1J090iST182198508-198608

main83247-1J110iST162..ARL198508-198608

main83247-1J270iST162..5F..ME198508-198608

main83247-1J290iST162..4FC..ME198508-198608

main83247-1J310iAT160..CBR198508-198608

main83247-1J330iAT160..LHD..TWC198508-198608

main83247-1J350iST162..5F..GEN198508-198608

main83247-1J360iST162..ST198608-198708

main83247-1J370iST162..4FC..GEN198508-198608

main83247-1J400iAT160..RHD198608-198708

KM

main83247-1J420iAT160..RHD198608-198708

MILE/KM

main83247-1J480iST182198608-198708

main83247-1J500iST162..SX198608-198708

main83247-1J580iST162..5F..ME198608-198708

main83247-1J600iST162..4FC..ME198608-198708

main83247-1J620iAT160..CBR198608-198708

main83247-1J640iAT160..LHD..TWC198608-198708

main83247-1J660iST162..5F..GEN198608-198708

main83247-1J680iST162..4FC..GEN198608-198708

83109BULB, COMBINATION METER, NO.2

main83109-24020×4iST162..ST198608-198708

12V3.4W W(GREEN CAP),12V 3.4W,W/GREEN CAP

main83109-24030×4iAT160198508-198608

12V3.4W W(GREEN CAP),12V 3.4W,W/GREEN CAP

83110SPEEDOMETER ASSY

main83110-2B350iST162..ST198608-198708

KM

main83110-2B410iAT160..RHD198508-198708

KM

main83110-2B420iAT160..RHD198508-198708

MILE/KM

main83110-2B470iAT160..CBR198508-198708

KM

main83110-2B480iAT160,ST162..LHD..TWC198508-198708

KM

main83110-2B490iST162..ME198508-198708

KM

main83110-2B500iAT160..CBR198508-198708

MILE/KM

main83110-2B510iAT160,ST162..LHD..TWC198508-198708

MILE/KM

main83110-2B520iST162,182..SX198508-198708

KM

83119BULB, COMBINATION METER, NO.3

main83101-20080×2iST162..4FC..(GT,SX)198508-198708

12V 1.4W,W(SOCKET)

83128KNOB, TRIP COUNTER

main83128-14670iAT160,ST162,182198508-198708

83132CASE, COMBINATION METER

main83132-1D040iST162..ST198608-198708

main83132-1D060iAT160..RHD198608-198708

main83132-1D120iST182198608-198708

main83132-1D140iST162..SX198608-198708

main83132-1D220iST162..4FC..ME198608-198708

main83132-1D240iST162..5F..ME198608-198708

main83132-1D260iST162..4FC..GEN198608-198708

main83132-1D280iAT160..CBR198608-198708

main83132-1D300iAT160..LHD..TWC198608-198708

main83132-1D320iST162..5F..GEN198608-198708

main83132-1J090iAT160..RHD198508-198608

sub83132-1J130

main83132-1J150iST182198508-198608

sub83132-1J070

main83132-1J310iST162..5F..ME198508-198608

main83132-1J330iST162..4FC..ME198508-198608

main83132-1J350iAT160..CBR198508-198608

main83132-1J370iAT160..LHD..TWC198508-198608

main83132-1J390iST162..5F..GEN198508-198608

main83132-1J410iST162..4FC..GEN198508-198608

main83132-1J450iST162..ARL198508-198608

83133PLATE, COMBINATION METER, NO.1

main83133-1B470iAT160,ST162,182..RHD198508-198708

main83133-1B490iAT160,ST162..LHD198508-198708

83270TACHOMETER ASSY, ENGINE

main83242-1B010iST162..ST198608-198708

main83242-1B030iAT160..RHD198508-198708

main83242-1B070iST182198508-198708

main83242-1B110iST162..SX198508-198708

main83242-1B190iAT160..CBR198508-198708

main83242-1B210iST162..5F..GT198508-198708

main83242-1B310iST162..4FC..GT198508-198708

main83242-1B330iAT160..LHD..TWC198508-198708

83310GAGE ASSY, FUEL RECEIVER

main83243-14710iAT160,ST162,182..RHD198508-198708

main83243-14730iAT160,ST162..LHD198508-198708

83410GAGE ASSY, WATER TEMPERATURE RECEIVER

main83244-1B110iAT160,ST162,182198508-198608

main83244-1B130iST162..GT198508-198608

*ME

main83244-1B150iST162..GT198608-198708

*ME

83510GAGE ASSY, OIL PRESSURE RECEIVER

main83246-14650iAT160,ST162,182198508-198708

83630VOLTMETER ASSY

main83251-14630iAT160,ST162,182198508-198708

9009900910

main90099-00910

9009900917

main90099-00917

9009900929

main90099-00929

9009900939

main90099-00939

9009900941

main90099-00941

9009900953

main90099-00953

9009900963

main90099-00963

9354013014

main93540-13014

9356755016

main93567-55016

24 parts on this diagram · 2 diagrams in section
