Toyota CELICA — METER

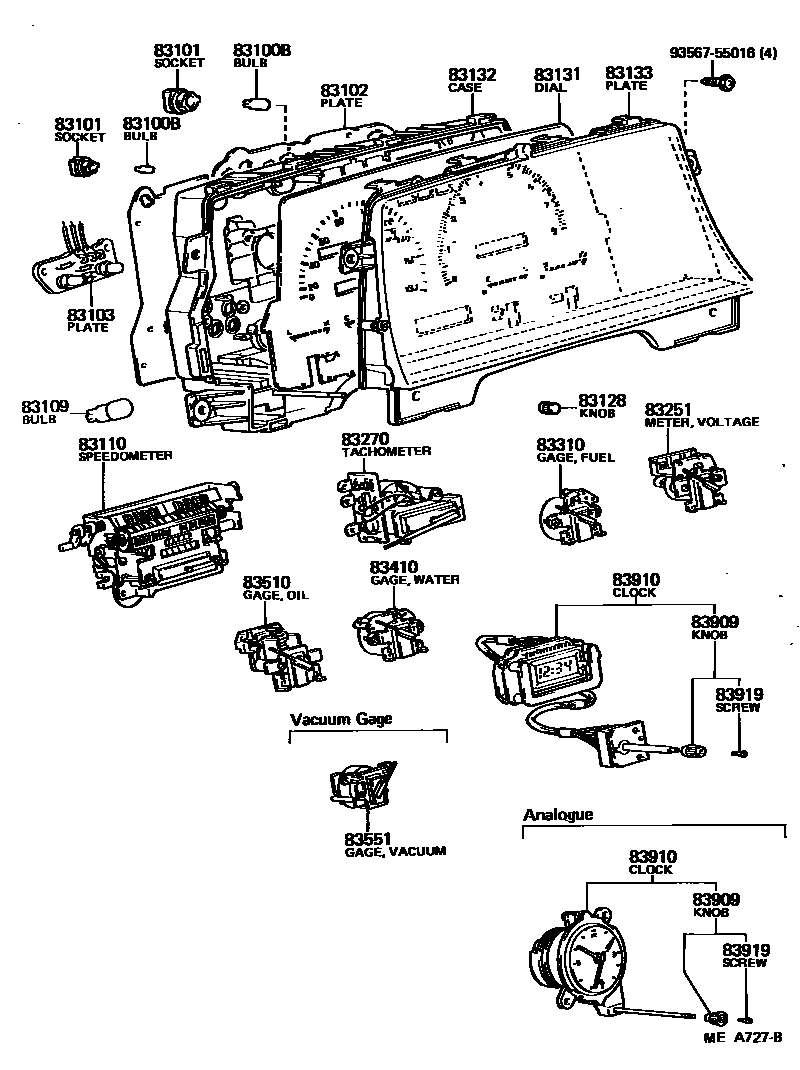

Parts diagram
83100BBULB, COMBINATION METER, NO.1
main90981-11018i198108-198512
12V 1.2W W/O SOCKET
main99132-12034i198108-198512
12V 3.4W
83101SOCKET SUB-ASSY, COMBINATION METER BULB
main83101-12020i198308-198512
12V 3.4W LONG
main83101-14030i198108-198512
12V 3.4W
main83101-14040i198108-198512
12V 1.4W
83102PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.1
main83247-14670i198108-198305
main83247-14671i198305-198308
main83247-14690i198108-198305
main83247-14691i198305-198308
main83247-14710i198108-198305
W/DIGITAL CLOCK
main83247-14711i198305-198308
W/DIGITAL CLOCK
main83247-14730i198108-198305
main83247-14731i198305-198308
main83247-14750i198108-198303
main83247-14751i198303-198308
main83247-14770i198108-198303
W/DIGITAL CLOCK
main83247-14771i198303-198308
W/DIGITAL CLOCK
main83247-14790i198108-198303
main83247-14791i198303-198308
main83247-14810i198108-198303
W/DIGITAL CLOCK
main83247-14810i198112-198303
main83247-14811i198303-198308
W/DIGITAL CLOCK
main83247-1B490i198209-198303
GEN SPEC
main83247-1B490i198208-198303
main83247-1B491i198303-198308
GEN SPEC
main83247-1B610i198308-198512
W/DIGITAL SPEEDOMETER
main83247-1B630i198308-198309
W/DIGITAL SPEEDOMETER
main83247-1B650i198308-198512
W/DIGITAL SPEEDOMETER
main83247-1B770i198308-198507
main83247-1B790i198308-198507
main83247-1B810i198308-198507
W/DIGITAL CLOCK
main83247-1B830i198308-198408
main83247-1B850i198308-198507
main83247-1B870i198308-198507
W/DIGITAL CLOCK
main83247-1B890i198308-198507
main83247-1D010i198308-198507
W/DIGITAL CLOCK
main83247-1D030i198308-198507
main83247-1D050i198308-198507
main83247-1D070i198308-198507
W/DIGITAL CLOCK
main83247-1D090i198308-198512
main83247-1D110i198308-198405
main83247-1D130i198308-198405
main83247-1D330i198309-198512
W/DIGITAL SPEEDOMETER
main83247-1D530i198408-198507
main83247-1D550i198405-198507
main83247-1D570i198405-198507
83103PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.2
main83247-1B271i198308-198512
W/DIGITAL SPEEDOMETER
main83247-1D270i198308-198512
83109BULB, COMBINATION METER, NO.2
main83109-24010i198308-198512
12V 1.4W,GREEN CAP
main83109-24020i198308-198512
12V3.4W W(GREEN CAP)
83110SPEEDOMETER ASSY
main83110-14350i198108-198308
KM
main83110-14350i198209-198305
GEN SPEC,KM
main83110-14351i198308-198507
KM
main83110-14360i198108-198308
MILE
main83110-14361i198308-198507
MILE
main83110-14370i198108-198308
KM
main83110-14371i198308-198507
KM
main83110-14380i198108-198308
MILE
main83110-14380i198108-198308
MILE,W/DIGITAL CLOCK
main83110-14380i198209-198305
GEN SPEC,MILE
main83110-14381i198308-198507
MILE
main83110-14381i198308-198507
MILE,W/DIGITAL CLOCK
main83110-14390i198108-198308
MILE
main83110-14391i198308-198507
MILE
main83110-14400i198108-198308
KM
main83110-14400i198209-198305
GEN SPEC,KM
main83110-14401i198308-198507
KM
main83110-14410i198108-198308
KM
main83110-14411i198308-198507
KM
main83110-14420i198209-198305
GEN SPEC,MILE
main83110-14421i198308-198507
MILE
main83110-14741i198305-198308
GEN SPEC,KM
main83110-14751i198305-198308
GEN SPEC,MILE
main83110-14820i198308-198512
KM
main83110-14840i198308-198512
W/DIGITAL SPEEDOMETER
main83110-1B010i198308-198512
W/DIGITAL SPEEDOMETER
main83110-1B051i198308-198408
W/SPEEDO WARNING
main83110-1B052i198408-198507
main83110-1B060i198305-198308
MILE;GEN SPEC,MILE
main83110-1B070i198305-198308
KM;GEN SPEC,KM
main83110-1B100i198308-198507
KM
83128KNOB, TRIP COUNTER
main83128-10260i198308-198512
W/DIGITAL SPEEDO METER
main83128-14510i198108-198512
83131DIAL, METER, NO.1
main83131-14250i198108-198308
KM
main83131-14270i198108-198308
KM
main83131-14290i198108-198308
KM,W/DIGITAL CLOCK
main83131-14310i198108-198308
main83131-14350i198108-198308
KM
main83131-14370i198108-198308
MILE
main83131-14410i198108-198308
MILE
main83131-14430i198108-198308
MILE,W/DIGITAL CLOCK
main83131-14450i198108-198308
MILE
main83131-14470i198112-198305
main83131-14490i198108-198308
KM
main83131-14510i198108-198308
KM,W/DIGITAL CLOCK
main83131-14530i198108-198308
KM
main83131-14550i198108-198308
KM
main83131-14570i198108-198308
KM,W/DIGITAL CLOCK
main83131-14590i198108-198308
main83131-14610i198108-198308
W/DIGITAL CLOCK
main83131-14630i198108-198308
main83131-14670i198108-198308
W/DIGITAL CLOCK
main83131-14710i198108-198308
KM
main83131-14730i198108-198308
main83131-14750i198108-198308
W/DIGITAL CLOCK
main83131-14770i198112-198305
main83131-14790i198108-198308
main83131-14810i198108-198308
MILE
main83131-14850i198108-198308
MILE,W/DIGITAL CLOCK
main83131-14870i198108-198308
MILE
main83131-1B010i198108-198308
MILE
main83131-1B030i198108-198308
MILE,W/DIGITAL CLOCK
main83131-1B070i198108-198308
MILE
main83131-1B670i198208-198308
main83131-1B830i198209-198305
KM,GEN SPEC
main83131-1B850i198209-198305
MILE,GEN SPEC
main83131-1B870i198209-198308
KM,GEN SPEC
main83131-1D020i198308-198507
*ME
main83131-1D020i198308-198507
KM,W/SPEEDO WARNING
main83131-1D280i198308-198512
MILE&KM,W/DIGITAL SPEEDOMETER
main83131-1D300i198308-198512
W/DIGITAL SPEEDOMETER
main83131-1D320i198308-198512
MILE&KM,W/DIGITAL SPEEDOMETER
main83131-1D330i198305-198308
main83131-1D340i198308-198512
W/DIGITAL SPEEDOMETER
main83131-1D350i198305-198308
main83131-1D360i198308-198512
W/DIGITAL SPEEDOMETER
main83131-1D370i198305-198308
KM,GEN SPEC
main83131-1D380i198308-198512
W/DIGITAL SPEEDOMETER
main83131-1D390i198305-198308
MILE,GEN SPEC
main83131-1D400i198308-198512
W/DIGITAL SPEEDOMETER
main83131-1D420i198308-198512
W/DIGITAL SPEEDOMETER,*ME
main83131-1D420i198308-198512
W/DIGITAL SPEEDOMETER
main83131-1D510i198308-198507
KM
main83131-1D520i198308-198512
W/DIGITAL SPEEDOMETER
main83131-1D530i198308-198507
KM
main83131-1D540i198308-198512
W/DIGITAL SPEEDOMETER
main83131-1D550i198308-198507
KM,W/DIGITAL CLOCK
main83131-1D560i198308-198512
W/DIGITAL SPEEDOMETER
main83131-1D570i198308-198507
MILE
main83131-1D590i198308-198507
MILE
main83131-1D610i198308-198507
MILE,W/DIGITAL CLOCK
main83131-1D630i198308-198408
main83131-1D650i198308-198507
KM
main83131-1D670i198308-198507
MILE
main83131-1D690i198308-198507
KM
main83131-1D710i198308-198507
KM,W/DIGITAL CLOCK
main83131-1D730i198308-198507
MILE
main83131-1D750i198308-198507
MILE,W/DIGITAL CLOCK
main83131-1D760i198308-198512
KM
main83131-1D770i198308-198507
KM
main83131-1D780i198308-198512
KM
main83131-1D790i198308-198507
KM,W/DIGITAL CLOCK
main83131-1D800i198308-198507
KM,W/DIGITAL CLOCK
main83131-1D810i198308-198507
MILE
main83131-1D820i198308-198507
KM
main83131-1D830i198308-198507
MILE,W/DIGITAL CLOCK
main83131-1D840i198308-198507
W/DIGITAL CLOCK
main83131-1D850i198308-198507
KM
main83131-1D860i198308-198507
KM
main83131-1D870i198308-198507
MILE
main83131-1D880i198308-198507
KM,W/DIGITAL CLOCK
main83131-1D890i198308-198507
KM
main83131-1E010i198408-198507
83132CASE, COMBINATION METER
main83132-14570i198108-198308
main83132-14590i198108-198308
main83132-14610i198108-198308
KM OR MILE,W/DIGITAL CLOCK
main83132-14630i198108-198308
main83132-14650i198112-198305
main83132-14651i198305-198308
main83132-14670i198108-198303
W/DIGITAL CLOCK
main83132-14671i198303-198308
W/DIGITAL CLOCK
main83132-14690i198108-198303
main83132-14691i198303-198308
main83132-14710i198108-198303
W/DIGITAL CLOCK
main83132-14711i198303-198308
W/DIGITAL CLOCK
main83132-14730i198107-198303
main83132-14731i198303-198308
main83132-14750i198108-198303
W/DIGITAL CLOCK
main83132-14751i198303-198308
W/DIGITAL CLOCK
main83132-14770i198108-198303
main83132-14771i198303-198308
main83132-14790i198108-198303
W/DIGITAL CLOCK
main83132-14791i198303-198308
W/DIGITAL CLOCK
main83132-1B130i198108-198303
main83132-1B150i198112-198303
main83132-1B151i198303-198308
main83132-1B210i198112-198303
main83132-1B211i198303-198308
main83132-1B330i198208-198303
main83132-1B331i198303-198308
main83132-1B350i198208-198303
main83132-1B351i198303-198308
main83132-1B370i198209-198303
GEN SPEC
main83132-1B371i198303-198308
GEN SPEC
main83132-1B431i198303-198308
main83132-1B490i198308-198512
W/DIGITAL SPEEDOMETER
main83132-1B510i198308-198512
W/DIGITAL SPEEDOMETER
main83132-1B570i198308-198512
W/DIGITAL SPEEDOMETER,*ME
main83132-1B570i198308-198512
W/DIGITAL SPEEDOMETER
main83132-1B590i198308-198507
W/DIGITAL SPEEDOMETER
main83132-1B610i198308-198512
W/DIGITAL SPEEDO METER
main83132-1B630i198308-198512
W/DIGITAL SPEEDOMETER
main83132-1B750i198308-198507
main83132-1B770i198308-198507
main83132-1B790i198308-198507
W/DIGITAL CLOCK
main83132-1B810i198308-198408
main83132-1B830i198308-198507
main83132-1B850i198308-198507
main83132-1B870i198308-198507
W/DIGITAL CLOCK
main83132-1B890i198308-198507
main83132-1D010i198308-198507
W/DIGITAL CLOCK
main83132-1D050i198308-198507
main83132-1D070i198308-198507
main83132-1D090i198308-198507
W/DIGITAL CLOCK
main83132-1D110i198308-198507
main83132-1D130i198308-198507
W/DIGITAL CLOCK
main83132-1D150i198308-198507
W/DIGITAL CLOCK
main83132-1D170i198308-198512
main83132-1D190i198308-198507
main83132-1D210i198308-198405
*ME
main83132-1D710i198408-198507
main83132-1D730i198405-198507
*ME
83133PLATE, COMBINATION METER, NO.1
main83133-14510i198108-198305
main83133-14511i198305-198507
main83133-14530i198108-198305
W/DIGITAL CLOCK
main83133-14531i198305-198507
W/DIGITAL CLOCK
main83133-14570i198108-198507
main83133-14571i198303-198308
main83133-14590i198108-198303
W/ANALOGUE CLOCK
main83133-14590i198108-198308
main83133-14591i198303-198507
W/ANALOGUE CLOCK
main83133-14610i198108-198303
W/DIGITAL CLOCK
main83133-14611i198303-198512
W/DIGITAL CLOCK
main83133-14830i198308-198512
main83133-14930i198308-198512
MILE&KM,W/DIGITAL SPEEDOMETER
main83133-1B090i198308-198512
KM&MILE,W/DIGITAL SPEEDOMETER
main83133-1B110i198308-198512
main83133-1B130i198308-198512
W/DIGITAL SPEEDOMETER
83251METER, VOLTAGE
main83251-14510i198108-198308
main83251-14570i198308-198512
83270TACHOMETER ASSY, ENGINE
main83242-14510i198108-198507
main83242-14530i198112-198308
main83242-14550i198108-198507
main83242-14570i198112-198512
main83242-14750i198308-198507
main83242-14770i198308-198507
main83270-14310i198308-198512
W/DIGITAL SPEEDOMETER
main83270-14340i198308-198512
W/DIGITAL SPEEDOMETER
main83270-14380i198308-198512
W/DIGITAL SPEEDOMETER
main83270-14390i198308-198512
W/DIGITAL SPEEDOMETER
main83270-14400i198308-198512
W/DIGITAL SPEEDOMETER
main83270-14420i198308-198512
W/DIGITAL SPEEDOMETER
83310GAGE ASSY, FUEL RECEIVER
main83243-14510i198108-198512
main83310-14110i198308-198408
W/DIGITAL SPEEDOMETER
main83310-14111i198408-198409
W/DIGITAL SPEEDOMETER
main83310-14120i198308-198408
W/DIGITAL SPEEDOMETER
main83310-14121i198408-198512
W/DIGITAL SPEEDOMETER
main83310-14140i198409-198512
W/DIGITAL SPEEDOMETER
83410GAGE ASSY, WATER TEMPERATURE RECEIVER
main83244-14510i198108-198308
main83244-14550i198108-198308
main83244-14550i198308-198507
*ME
main83244-1B010i198308-198408
main83244-1B050i198308-198512
83510GAGE ASSY, OIL PRESSURE RECEIVER
main83246-14510i198108-198507
main83246-14510i198209-198308
GEN SPEC
main83551-14510i198308-198512
83551GAGE, VACUUM
main83551-14510i198108-198512
83909KNOB, CLOCK
main83909-14012i198108-198507
ANALOGUE
main83909-22180i198108-198512
DIGITAL
83910CLOCK ASSY
main83910-14280i198108-198507
ANALOGUE
main83910-14290i198108-198507
ANALOGUE
main83910-14300i198108-198512
DIGITAL
main83910-14310i198308-198512
W/DIGITAL SPEEDOMETER
main83910-14330i198308-198512
W/DIGITAL SPEEDOMETER
83919SCREW, CLOCK
main83919-12230i198108-198512
DIGITAL
main83919-14012i198108-198507
ANALOGUE
9356755016
main93567-55016

20 parts on this diagram · 4 diagrams in section

METER for Toyota CELICA

This section contains 56 genuine Toyota parts for the METER system of the Toyota CELICA. Key components include: BULB, COMBINATION METER, NO.1, SOCKET SUB-ASSY, COMBINATION METER BULB, PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.1, PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.2, PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.3.
