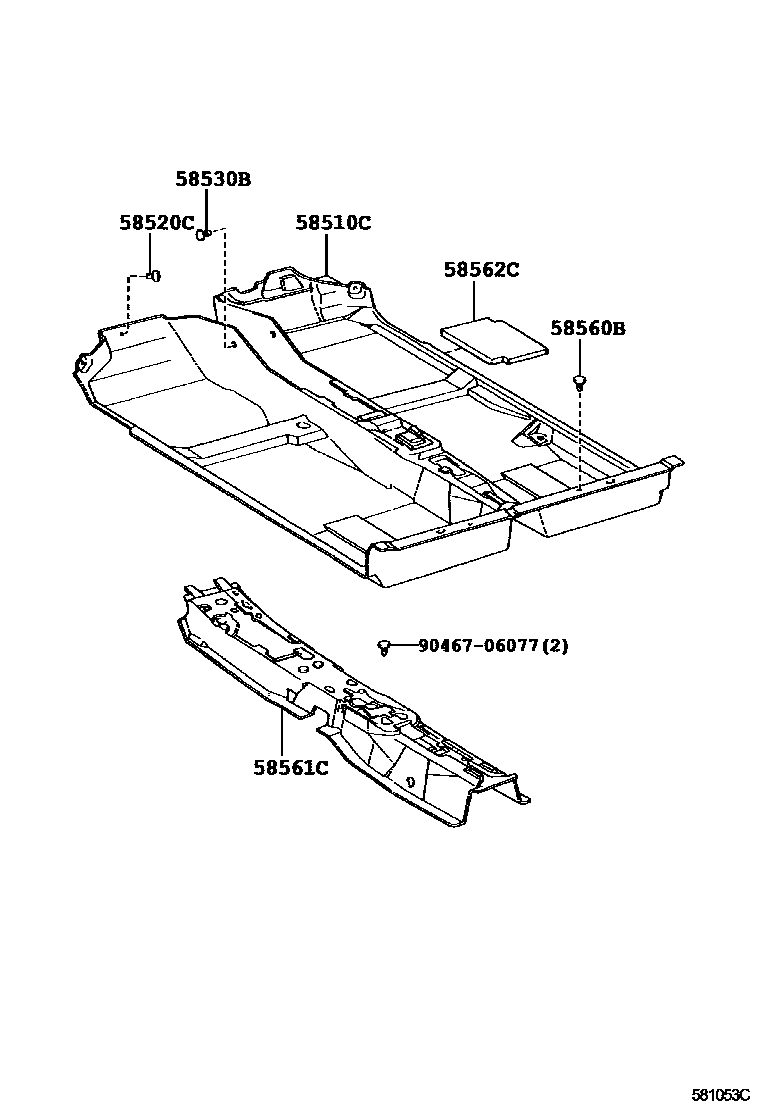

Toyota CELICA — MAT & CARPET

58510CCARPET ASSY, FRONT FLOOR, FRONT

main58510-2G110-B0i199908-200205

DARK GRAY,TRIM20,21,22

main58510-2G111-B0i200205-200208

DARK GRAY,TRIM20,21,22

main58510-2G112-B0i200308-200509

DARK GRAY,TRIM20,21,22

58520CCLIP(FOR FRONT FLOOR CARPET)

main90467-06001-C0i199908-200208

BLACK,TRIM20,21,22

58530BCLIP(FOR FRONT FLOOR CARPET)

main90467-08124×3i200301-200509

main90467-09118×3i200208-200301

58560BCLIP(FOR FLOOR CARPET, REAR)

main90467-06077×2i199908-200208

58561CSILENCER, FRONT FLOOR, NO.1

main58561-20020i199908-200208

main58561-20021i200208-200308

main58561-20022i200308-200509

58562CSILENCER, FRONT FLOOR, NO.2

main58562-20010i200008-200208

9046706077

main90467-06077

7 parts on this diagram · 1 diagram in section

MAT & CARPET for Toyota CELICA

This section contains 7 genuine Toyota parts for the MAT & CARPET system of the Toyota CELICA. Key components include: CARPET ASSY, FRONT FLOOR, FRONT, CLIP(FOR FRONT FLOOR CARPET), CLIP(FOR FLOOR CARPET, REAR), SILENCER, FRONT FLOOR, NO.1.
