Toyota CELICA — MAT & CARPET

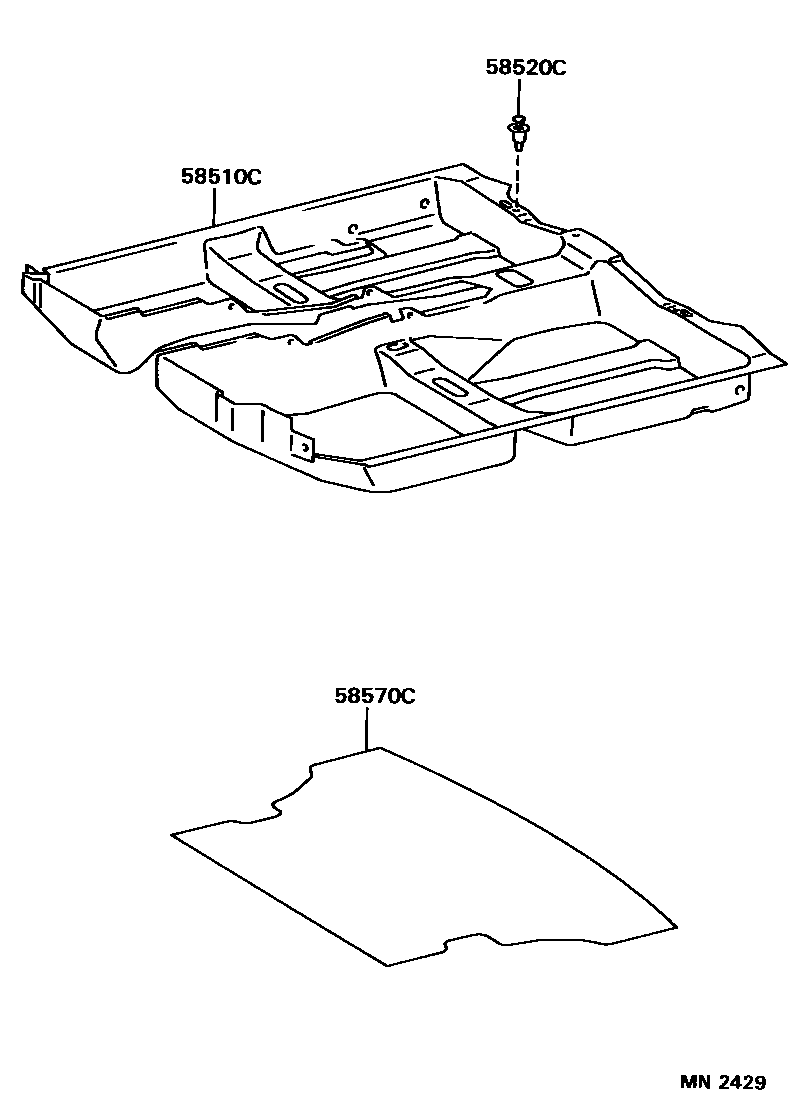

Parts diagram
58510CCARPET ASSY, FRONT FLOOR, FRONT
main58510-2D580-C0i199508
BLACK,TRIM2#
main58510-2D600-C0i199508
BLACK,TRIM2#
main58510-2D690-C0i199311-199508
BLACK,TRIM2#
main58510-2D700-C1i199402-199508
BLACK,TRIM2#
main58510-2D720-C1i199311-199508
BLACK,TRIM2#
58520CCLIP(FOR FRONT FLOOR CARPET)
main90467-06166-C0×9i199311-199508
BLACK,TRIM2#
58570CCARPET ASSY, REAR FLOOR
main58570-20200-C0i199311
BLACK,TRIM2#
main58570-20220-C0i199402
BLACK,TRIM2#

3 parts on this diagram · 1 diagram in section

MAT & CARPET for Toyota CELICA

This section contains 3 genuine Toyota parts for the MAT & CARPET system of the Toyota CELICA. Key components include: CARPET ASSY, FRONT FLOOR, FRONT, CLIP(FOR FRONT FLOOR CARPET), CARPET ASSY, REAR FLOOR.
