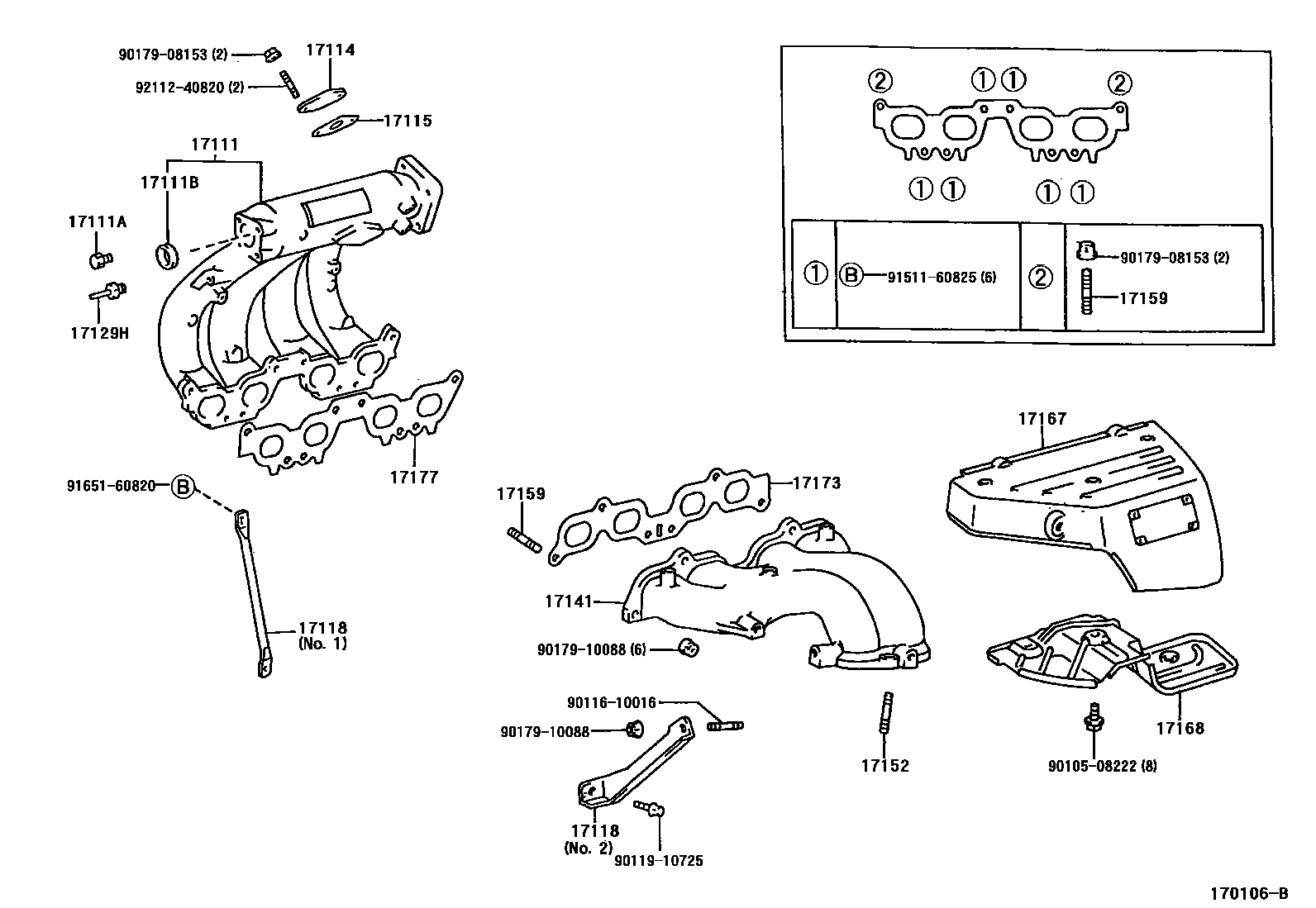

Toyota CELICA — MANIFOLD
17111MANIFOLD, INTAKE
GROUP A SPEC
17111APLUG, NO.1
17111BPLUG, NO.2
17114PLATE, INTAKE MANIFOLD HOLE COVER
17115GASKET, INTAKE MANIFOLD HOLE COVER
17118STAY, MANIFOLD
NO.2
NO.1
NO.2
17129HUNION, NO.4
17141MANIFOLD, EXHAUST
GROUP A SPEC
17152BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE)
17159BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
INTAKE MANIFOLD
EXHAUST MANIFOLD
NO.2
NO.1
INTAKE MANIFOLD
17167INSULATOR, EXHAUST MANIFOLD HEAT, NO.1
17168INSULATOR, EXHAUST MANIFOLD HEAT, NO.2
17173GASKET, EXHAUST MANIFOLD TO HEAD
17177GASKET, INTAKE MANIFOLD TO HEAD, NO.1
9010508222
main90105-08222
9011610016
main90116-10016
9011910725
main90119-10725
9017908153
main90179-08153
9017910088
main90179-10088
9151160825
main91511-60825
9165160820
main91651-60820
9211240820
main92112-40820
22 parts on this diagram · 5 diagrams in section
MANIFOLD for Toyota CELICA
This section contains 103 genuine Toyota parts for the MANIFOLD system of the Toyota CELICA. Key components include: GASKET KIT, TURBOCHARGER, GASKET, TURBO OIL INLET, GASKET, TURBO OIL OUTLET, NO.1, PIPE, TURBO OIL OUTLET, HOSE, TURBO OIL OUTLET.
