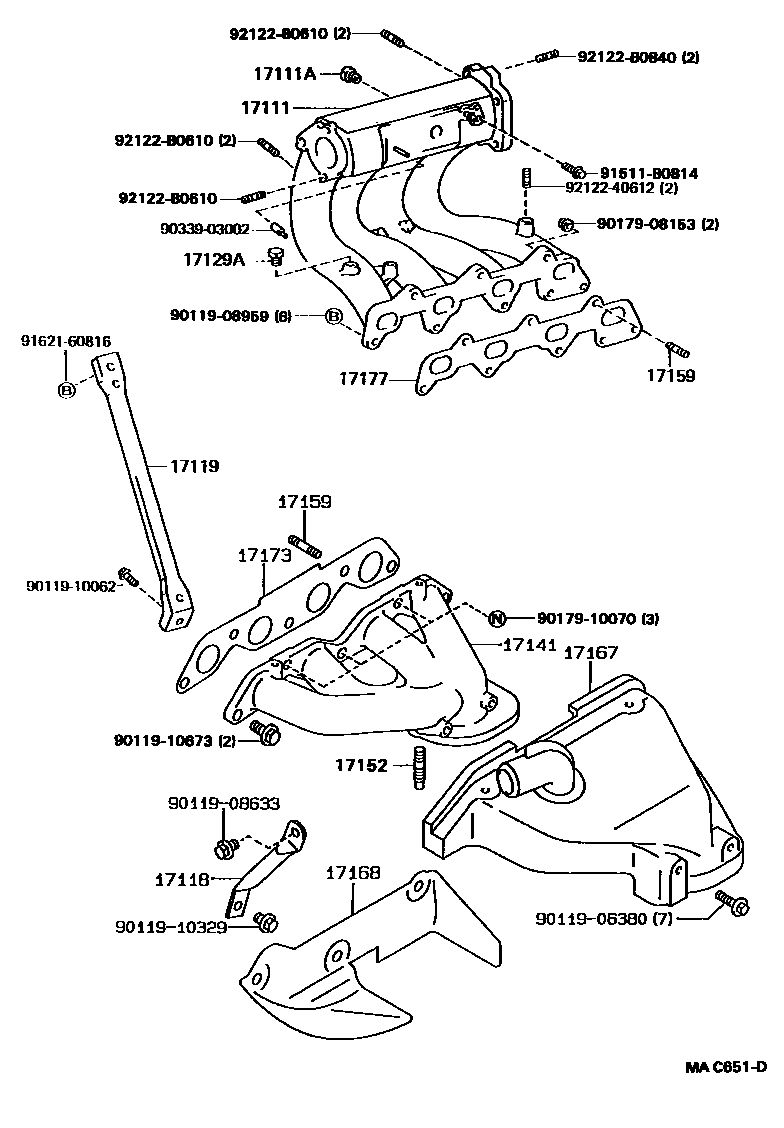

Toyota CELICA — MANIFOLD
17111MANIFOLD, INTAKE
17111APLUG, NO.1
17118STAY, MANIFOLD
17119STAY, MANIFOLD, NO.2
17129TANK, INTAKE AIR SURGE
17129AUNION, NO.1
17141MANIFOLD, EXHAUST
17152BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE)
17159BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
INTAKE MANIFOLD
INTAKE MANIFOLD
EXHAUST MANIFOLD
EXHAUST MANIFOLD
INTAKE MANIFOLD
EXHAUST MANIFOLD
INTAKE MANIFOLD
17167INSULATOR, EXHAUST MANIFOLD HEAT, NO.1
17168INSULATOR, EXHAUST MANIFOLD HEAT, NO.2
17173GASKET, EXHAUST MANIFOLD TO HEAD
TYPE A:REFER ILLUST.
TYPE B:REFER ILLUST.
17177GASKET, INTAKE MANIFOLD TO HEAD, NO.1
9011906380
main90119-06380
9011908633
main90119-08633
9011908959
main90119-08959
9011910062
main90119-10062
9011910329
main90119-10329
9011910673
main90119-10673
9017908153
main90179-08153
9017910070
main90179-10070
9033903002
main90339-03002
91511B0814
main91511-B0814
9162160816
main91621-60816
9212240612
main92122-40612
92122B0610
main92122-B0610
92122B0840
main92122-B0840
27 parts on this diagram · 6 diagrams in section
MANIFOLD for Toyota CELICA
This section contains 119 genuine Toyota parts for the MANIFOLD system of the Toyota CELICA. Key components include: GASKET KIT, TURBOCHARGER, GASKET, TURBO OIL INLET, HOSE, TURBO OIL OUTLET, CLAMP OR CLIP(FOR TURBO OIL OUTLET HOSE), PIPE, TURBO OIL, NO.1.
