Toyota CELICA — LOCK CYLINDER SET

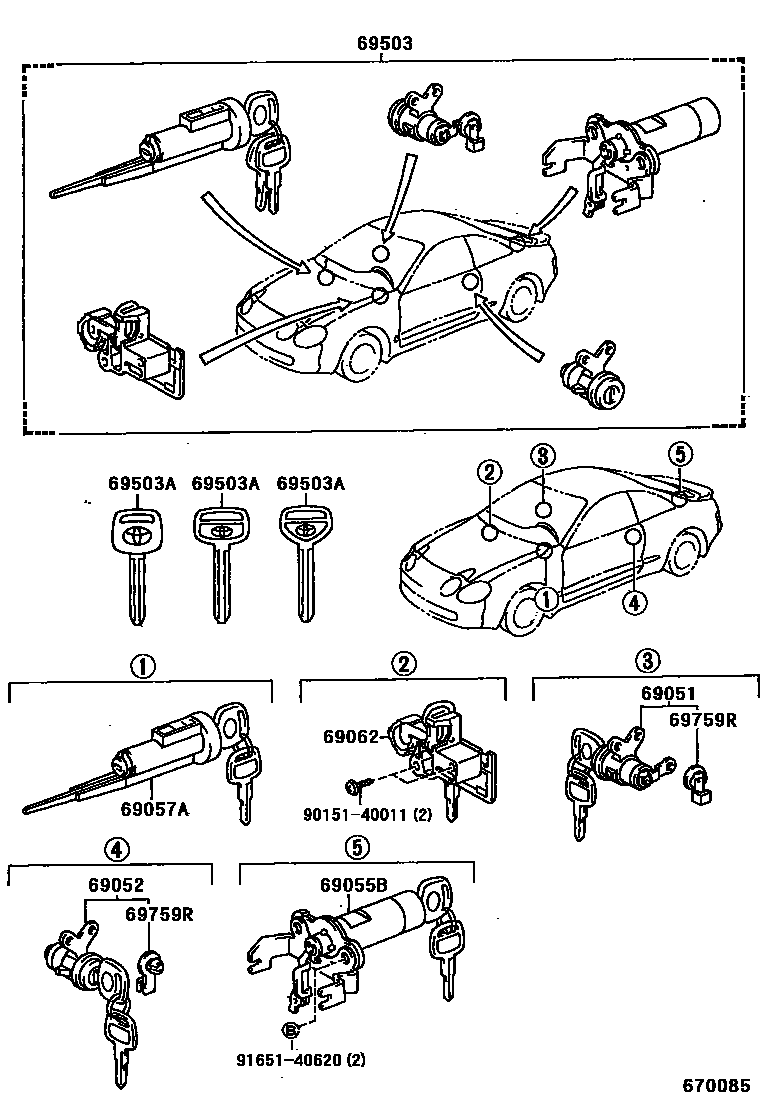

Parts diagram

69051CYLINDER & KEY SET, DOOR LOCK, RH

main69051-20350i199311

main69051-20370i199311

69052CYLINDER & KEY SET, DOOR LOCK, LH

main69052-20350i199311

main69052-20370i199311

69055BCYLINDER & KEY SET, BACK DOOR LOCK

main69055-20570i199311-199712

main69055-20590i199311-199712

main69055-20700i199712

main69055-20720i199712

69057ACYLINDER & KEY SET, IGNITION SWITCH LOCK

main69057-20340i199311

main69057-20360i199311

69062CYLINDER & KEY SET, GLOVE COMPARTMENT LOCK

main69056-20250i199311

main69056-20280i199311

69503CYLINDER SET, LOCK

main69005-2B320i199311-199712

main69005-2B340i199311-199712

main69005-2B590i199712

main69005-2B610i199712

69503AKEY, BLANK

main90999-00185i199311-199402

MASTER KEY,W(*68)

main90999-00186i199402

MASTER KEY

main90999-00188i199311-199402

SUB KEY

69759RSNAP, FRONT DOOR LOCK CYLINDER

main69759-22080i199311

ORANGE

main69759-22090i199311

PINK

9015140011

main90151-40011

9165140620

main91651-40620

10 parts on this diagram · 1 diagram in section

LOCK CYLINDER SET for Toyota CELICA

This section contains 10 genuine Toyota parts for the LOCK CYLINDER SET system of the Toyota CELICA. Key components include: CYLINDER & KEY SET, DOOR LOCK, RH, CYLINDER & KEY SET, DOOR LOCK, LH, CYLINDER & KEY SET, BACK DOOR LOCK, CYLINDER & KEY SET, IGNITION SWITCH LOCK, CYLINDER & KEY SET, GLOVE COMPARTMENT LOCK.
