Toyota CELICA — LOCK CYLINDER SET
69051CYLINDER & KEY SET, DOOR LOCK, RH
69052CYLINDER & KEY SET, DOOR LOCK, LH
69054CYLINDER & KEY SET, BACK DOOR LOCK
69054CCYLINDER & KEY SET, LUGGAGE COMPARTMENT LOCK
69057ACYLINDER & KEY SET, IGNITION SWITCH LOCK
W(POWER WINDOW)
W(POWER WINDOW)
69062CYLINDER & KEY SET, GLOVE COMPARTMENT LOCK
69503CYLINDER SET, LOCK
W(POWER WINDOW)
W(POWER WINDOW)
69503AKEY, BLANK
MASTER KEY
SUB KEY
MASTER KEY,W(*68)
MASTER KEY
MASTER KEY,W(*68)
SUB KEY
69555COVER, KEY
69561ARETAINER, LUGGAGE COMPARTMENT LOCK CYLINDER
69563APAD, LUGGAGE COMPARTMENT DOOR LOCK CYLINDER
69759RSNAP, FRONT DOOR LOCK CYLINDER
RH
LH
9015140005
main90151-40005
9165140612
main91651-40612

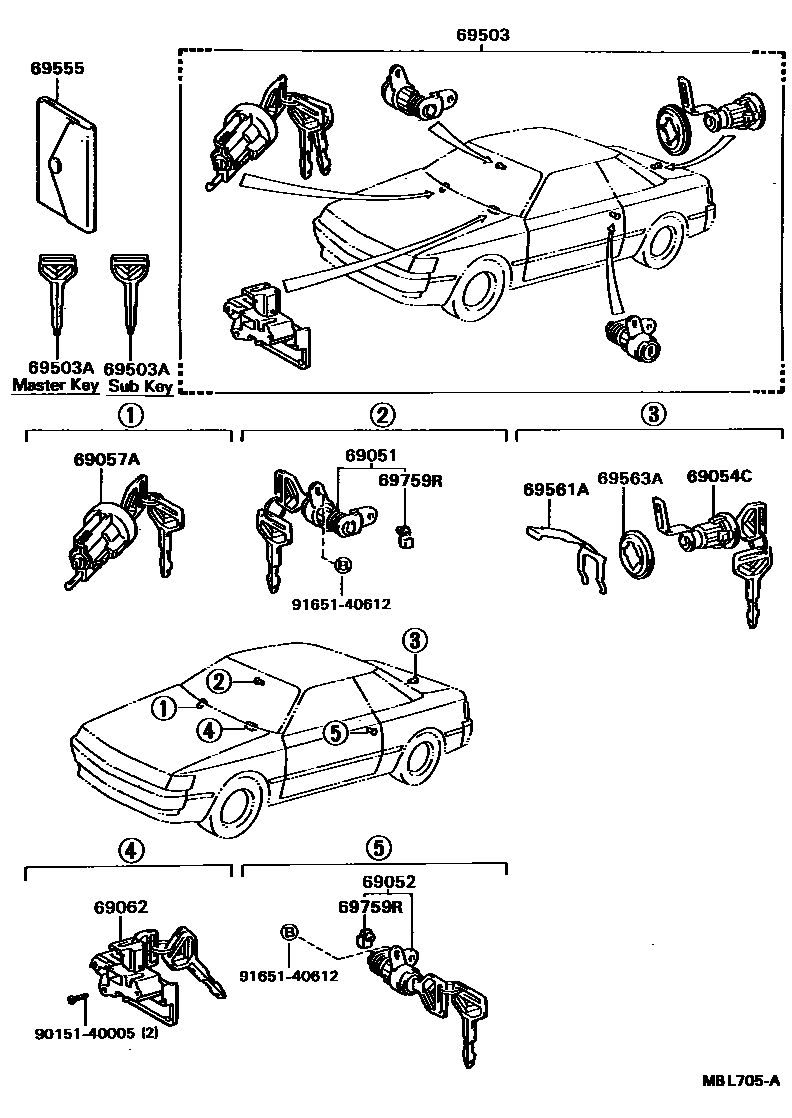

14 parts on this diagram · 2 diagrams in section
LOCK CYLINDER SET for Toyota CELICA
This section contains 17 genuine Toyota parts for the LOCK CYLINDER SET system of the Toyota CELICA. Key components include: CYLINDER & KEY SET, DOOR LOCK, RH, CYLINDER & KEY SET, DOOR LOCK, LH, CYLINDER & KEY SET, BACK DOOR LOCK, CYLINDER & KEY SET, LUGGAGE COMPARTMENT LOCK, CYLINDER & KEY SET, IGNITION SWITCH LOCK.
