Toyota CELICA — INTERIOR LAMP

67075REFLECTOR SUB-ASSY, FRONT DOOR TRIM, RH

main67665-20020i199311-199508

67076REFLECTOR SUB-ASSY, FRONT DOOR TRIM, LH

main67665-20020i199311-199508

81230LAMP ASSY, COURTESY

main81230-50040×2i199311

81230BBULB(FOR COURTESY LAMP)

main90981-11020×2i199311

12V 3.8W

81231LENS, COURTESY LAMP

main81231-50020×2i199311

81250LAMP ASSY, ROOM, NO.2

main81250-12030-C0i199311

BLACK,TRIM2#

81250BBULB, ROOM LAMP, NO.2

main99132-13050i199311

12V 5W

81251LENS, ROOM LAMP, NO.2

main81251-12030i199311

81260LAMP ASSY, GLOVE BOX

main81260-33010i199311

81260ALAMP ASSY, MAP

main81260-14080-B1i199311-199508

LI.GRAY,TRIM2#

main81260-14080-B3i199508

LT.GRAY,TRIM2#

main81260-20220-B0i199311-199508

W(MOON ROOF),LI.GRAY,TRIM2#

main81260-20220-B1i199508

W(MOON ROOF),LT.GRAY,TRIM2#

81260BBULB(FOR GLOVE BOX)

main90981-11018i199311

12V 1.2W W/O SOCKET

81260CBULB(FOR MAP LAMP)

main90981-12005×2i199311

12V 8W

main90981-12014i199311

12V 10W

81261LENS AND COVER, MAP LAMP

main81261-14080i199311

main81261-20220-B0i199311-199508

W(MOON ROOF),LI.GRAY,TRIM2#

main81261-20220-B2i199508

W(MOON ROOF),LT.GRAY,TRIM2#

81870DLAMP ASSY, KEY CYLINDER

main81870-20040i199402

81870EBULB, KEY CYLINDER LAMP

main90981-11018i199402

12V 1.2W W/O SOCKET

81870FCAP, KEY CYLINDER LAMP BULB

main84998-10080i199402

81871LENS, KEY ILLUMINATION

main81871-20030i199311

9015950193

main90159-50193

9354054016

main93540-54016

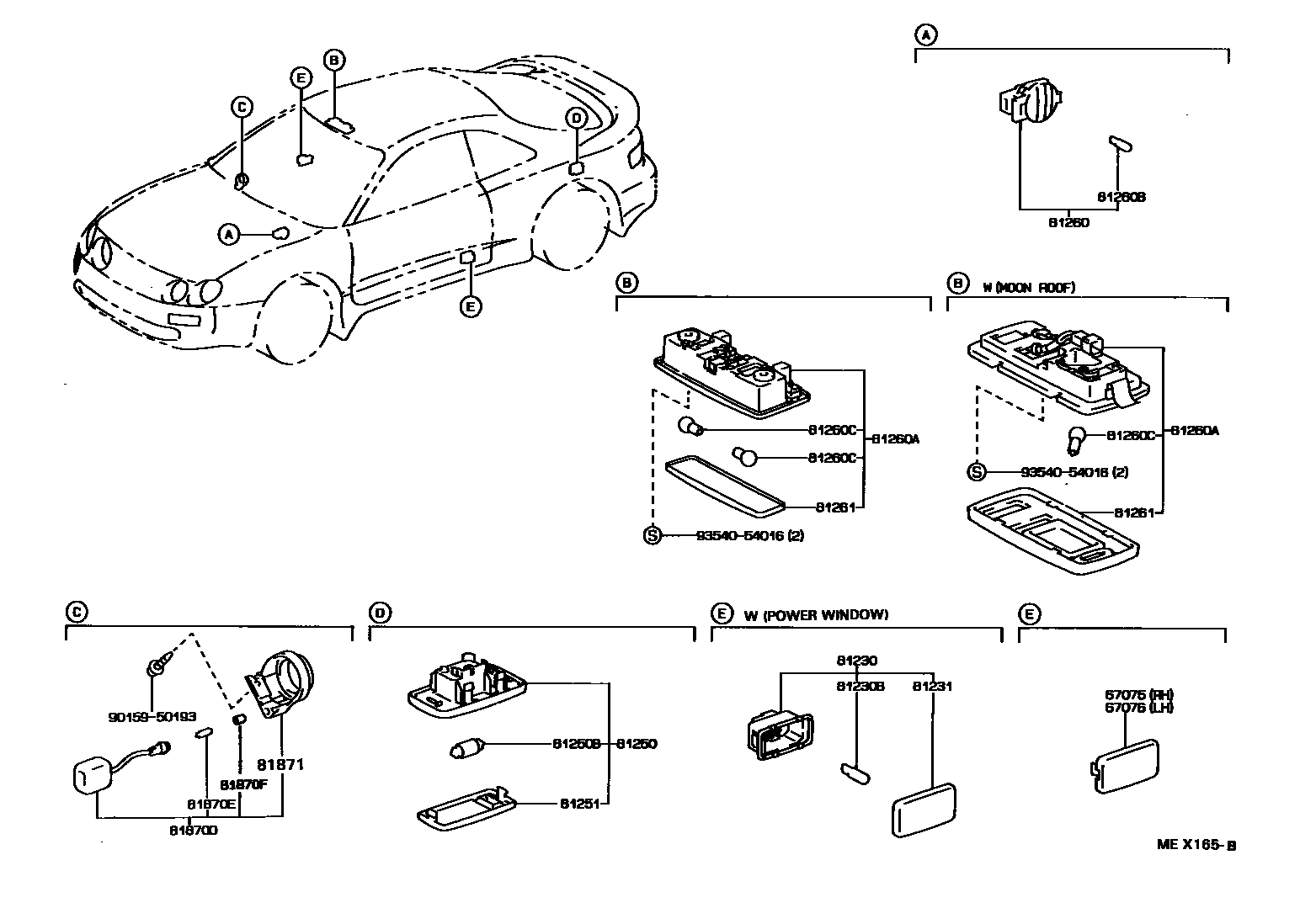

19 parts on this diagram · 1 diagram in section

INTERIOR LAMP for Toyota CELICA

This section contains 19 genuine Toyota parts for the INTERIOR LAMP system of the Toyota CELICA. Key components include: REFLECTOR SUB-ASSY, FRONT DOOR TRIM, RH, REFLECTOR SUB-ASSY, FRONT DOOR TRIM, LH, LAMP ASSY, COURTESY, BULB(FOR COURTESY LAMP), LENS, COURTESY LAMP.
