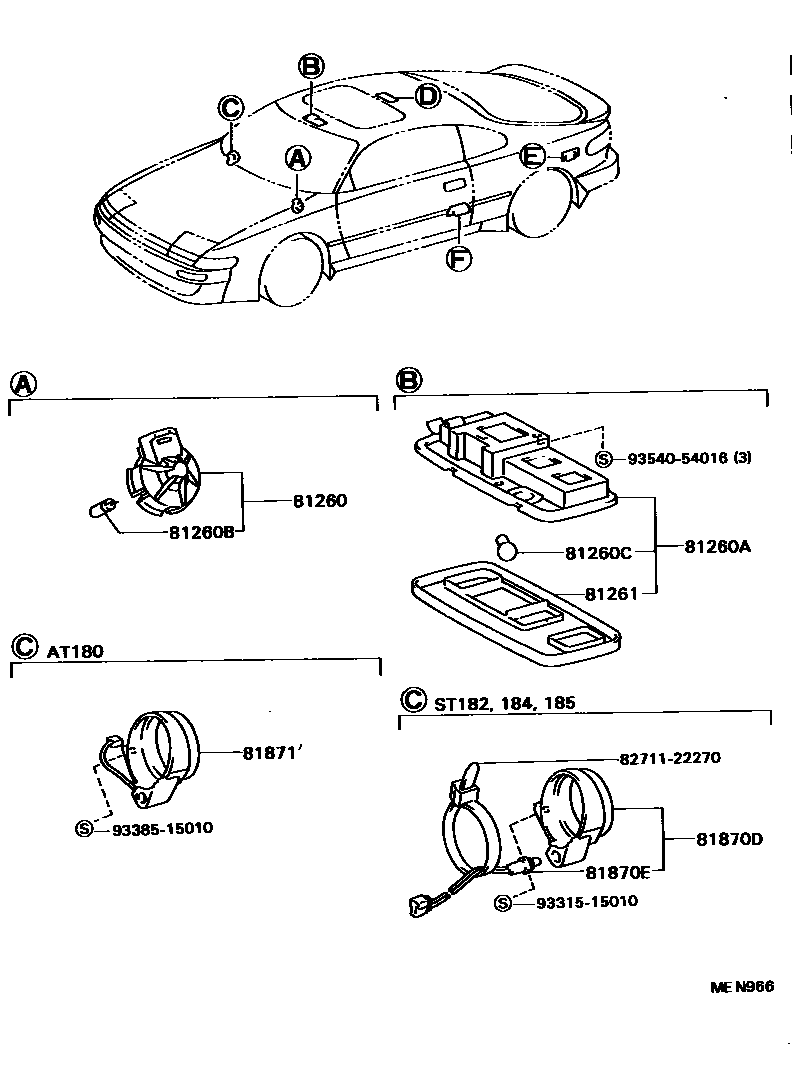

Toyota CELICA — INTERIOR LAMP

81260LAMP ASSY, GLOVE BOX

main81260-32071i198910-199311

81260ALAMP ASSY, MAP

main81260-20160-03i198910-199106

SHADOW GRAY,TRIM1#

main81260-20160-04i199208-199311

DARK BLUE,TRIM8#

main81260-20160-S3i199106-199311

SHADOW GRAY,TRIM1#

81260BBULB(FOR GLOVE BOX)

main90981-11018i198910-199311

12V 1.2W W/O SOCKET

81260CBULB(FOR MAP LAMP)

main90981-12014i198910-199311

12V 10W

81261LENS AND COVER, MAP LAMP

main81261-20160-03i198910-199311

SHADOW GRAY,TRIM1#

main81261-20160-04i198910-199208

DARK BLUE,TRIM8#

81870DLAMP ASSY, KEY CYLINDER

main81870-20020i198910-199108

main81870-20040i199108-199311

81870EBULB, KEY CYLINDER LAMP

main90981-11018i198910-199311

12V 1.2W W/O SOCKET

81871LENS, KEY ILLUMINATION

main81871-20030i198911-199311

8271122270WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-22270

9331515010

main93315-15010

9338515010

main93385-15010

9354054016

main93540-54016

12 parts on this diagram · 2 diagrams in section

INTERIOR LAMP for Toyota CELICA

This section contains 26 genuine Toyota parts for the INTERIOR LAMP system of the Toyota CELICA. Key components include: REFLECTOR SUB-ASSY, FRONT DOOR TRIM, RH, REFLECTOR SUB-ASSY, FRONT DOOR TRIM, LH, LAMP ASSY, COURTESY, BULB(FOR COURTESY LAMP), LENS, COURTESY LAMP.
